Chapter 7 Input/Output Specifications
7-61

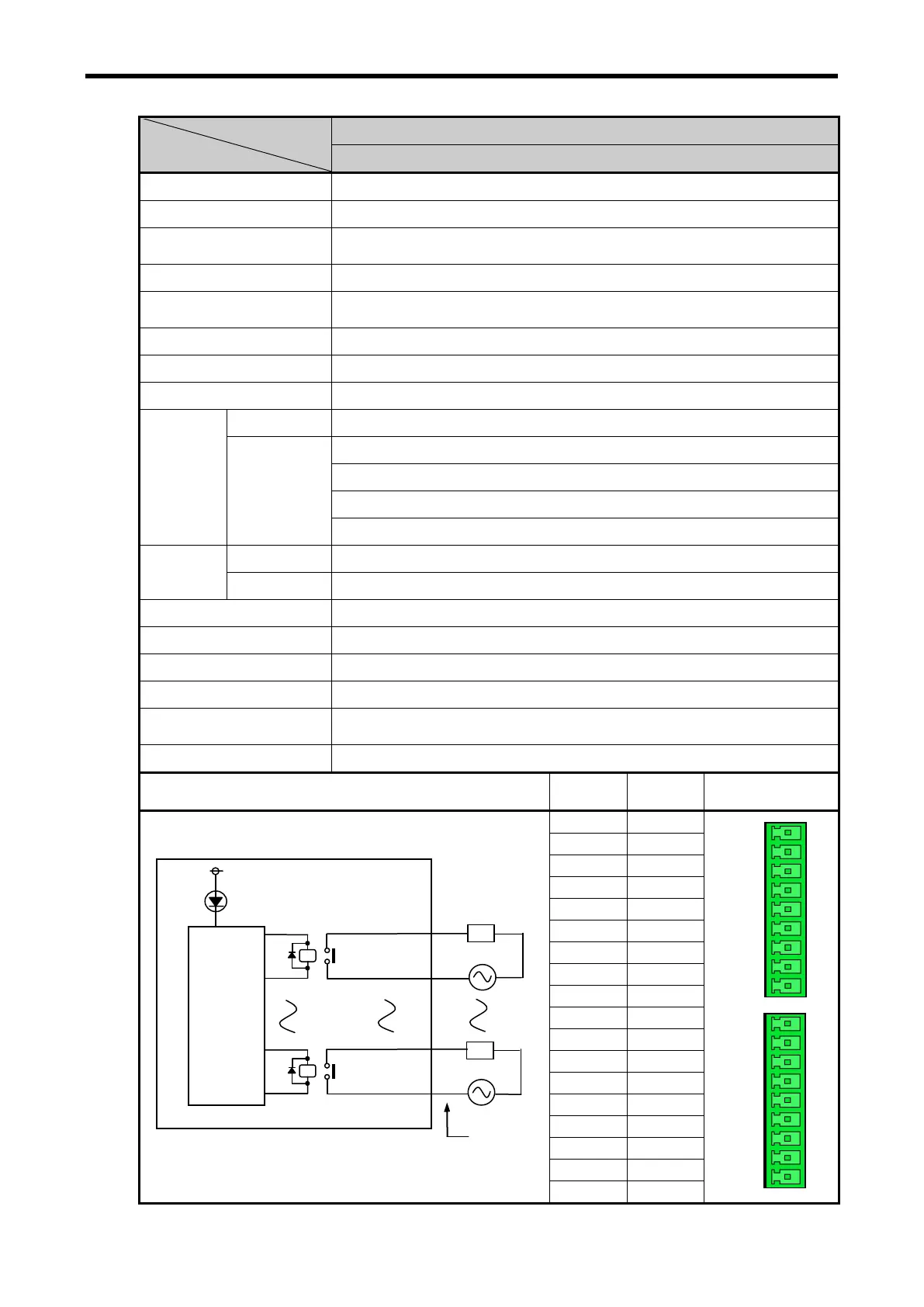

7.5.2 8 point relay output module (Independent point)
Model
Specification
Relay output module
XBE-RY08B
Output point
8 point
Insulation method
Relay insulation
Rated load voltage /
Current
DC24V 2A (Resistive load) / AC220V 2A (COS = 1), 2A/COM
Min. load voltage/Current
DC5V / 1 ㎃
Max. load
voltage/Current
AC250V, DC125V
Off leakage current
0.1 ㎃ (AC220V, 60 ㎐)
Max. On/Off frequency
3,600 times/hr
Surge absorber
None
Service
life
Mechanical
20 millions times or more
Electrical
Rated load voltage / current 100,000 times or more
AC200V / 1.5A, AC240V / 1A (COS = 0.7) 100,000 times or more
AC200V / 1A, AC240V / 0.5A (COS = 0.35) 100,000 times or more
DC24V / 1A, DC100V / 0.1A (L / R = 7 ㎳) 100,000 times or more
Response
time
Off  On
10 ㎳ or less
On  Off
12 ㎳ or less
Common method
1 point / COM
Proper cable size
Stranded cable 0.3~0.75 ㎟ (External diameter 2.8 ㎜ or less)
Current consumption
230 ㎃ (when all point On)
Operation indicator
Output On, LED On
External connection
method
9 point terminal block connector x 2
Weight
81g
Circuit configuration
No.
configu
ration
No.
TB1
0
TB2
COM0
TB3
1
TB4
COM1
TB5
2
TB6
COM2
TB7
3
TB8
COM3
TB9
NC
TB1
4
TB2
COM4
TB3
5
TB4
COM5
TB5
6
TB6
COM6
TB7
7
TB8
COM7
TB9
NC
TB1
TB2
TB3
TB4
TB5
TB6
TB7
TB8
TB9
TB1
TB2
TB3
TB4
TB5
TB6
TB7
TB8
TB9
Terminal no.
RY
Internal
circuit
L
L
E
D
TB1
DC5V
TB7
TB2
TB8
RY
