Chapter 7 Input/Output Specifications
7-41

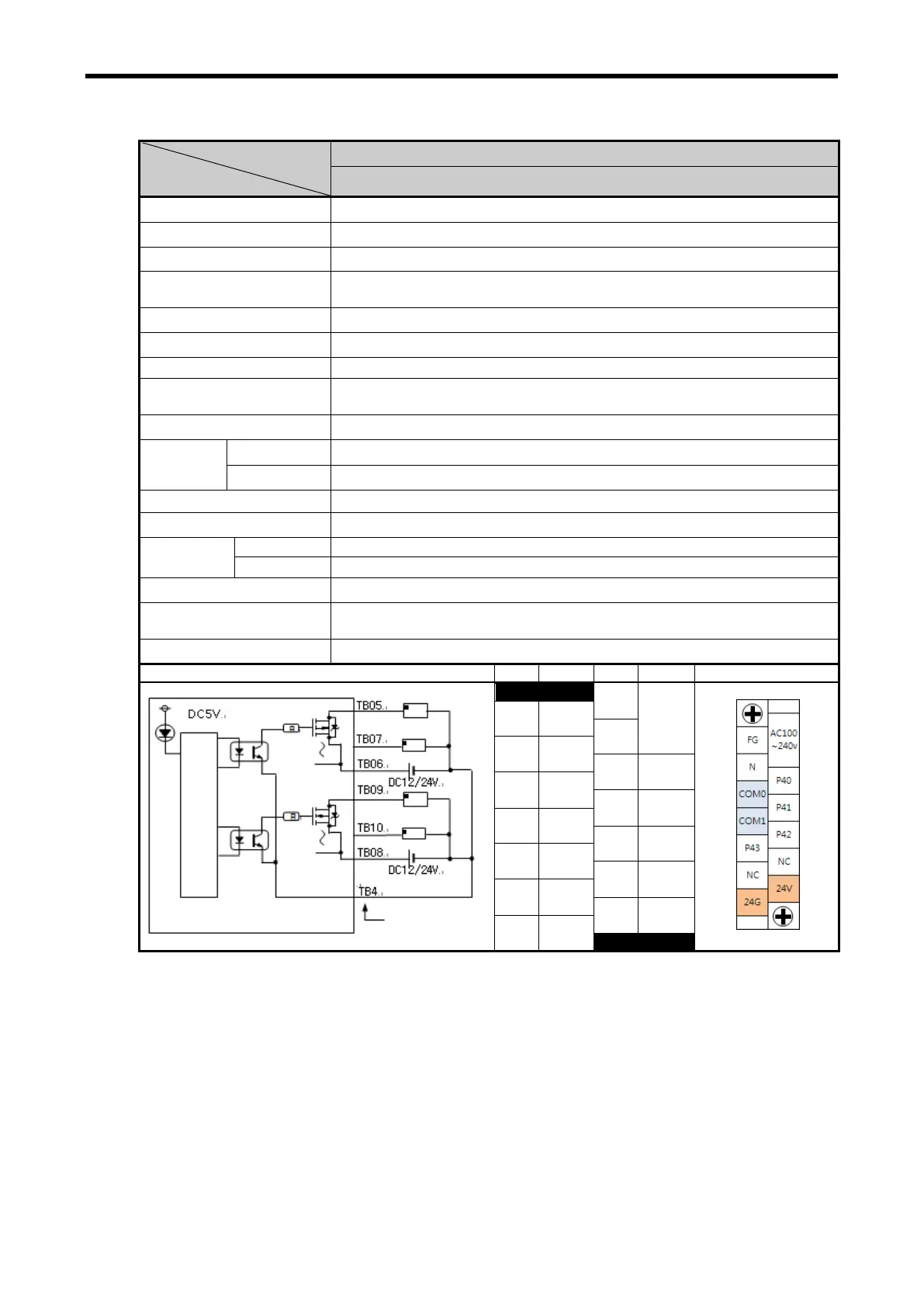

7.3.9 XBC-DP10E 4 point transistor output (Source type)
Model
Specification
Main unit
XBC-DP10E
Output point
4 point
Insulation method
Photo coupler insulation
Rated load voltage
DC 12 / 24V
Operation load voltage
range
DC 10.2 ~ 26.4V
Max. load current
0.5A / 1 point, 2A / 1COM
Off leakage current
0.1 ㎃ or less
Max. inrush current
4A / 10 ㎳ or less
Max. voltage drop when
On
DC 0.4V or less
Surge absorber
Zener diode
Response
time
Off  On
1 ㎳ or less
On  Off
1 ㎳ or less (rated load, resistive load)
Common method
4 point / COM
Proper wire size
Stranded wire 0.3~0.75 ㎟ (external diameter 2.8 ㎜ or less)
External
power
Voltage
DC12/24V  10% (Ripple voltage 4 Vp-p or less)
Current
25 ㎃ or less (When connecting DC24V)
Operation indicator
LED On when Output On
External connection
method
14 point terminal block connector(M3 X 6 screw)
Weight
313g
Circuit configuration
No.
Contact
No.
Contact
Type
TB1
AC100
~240V
TB2
FG
TB3
TB4
N
TB5
40
TB6
COM0
TB7
41
TB8
COM1
TB9
42
TB10
43
TB11
NC
TB12
NC
TB13
24V
TB14
24G
TB2
TB4
TB6
TB8
TB10
T
D
C
1
T
B
0
9
D
C
1
2
T
L
L
TB14
TB1
TB3
TB5
TB7
TB9
TB11
TB13
TB12
Internal Circuit
Terminal No.
