Chapter 7 Input/Output Specifications
7-69

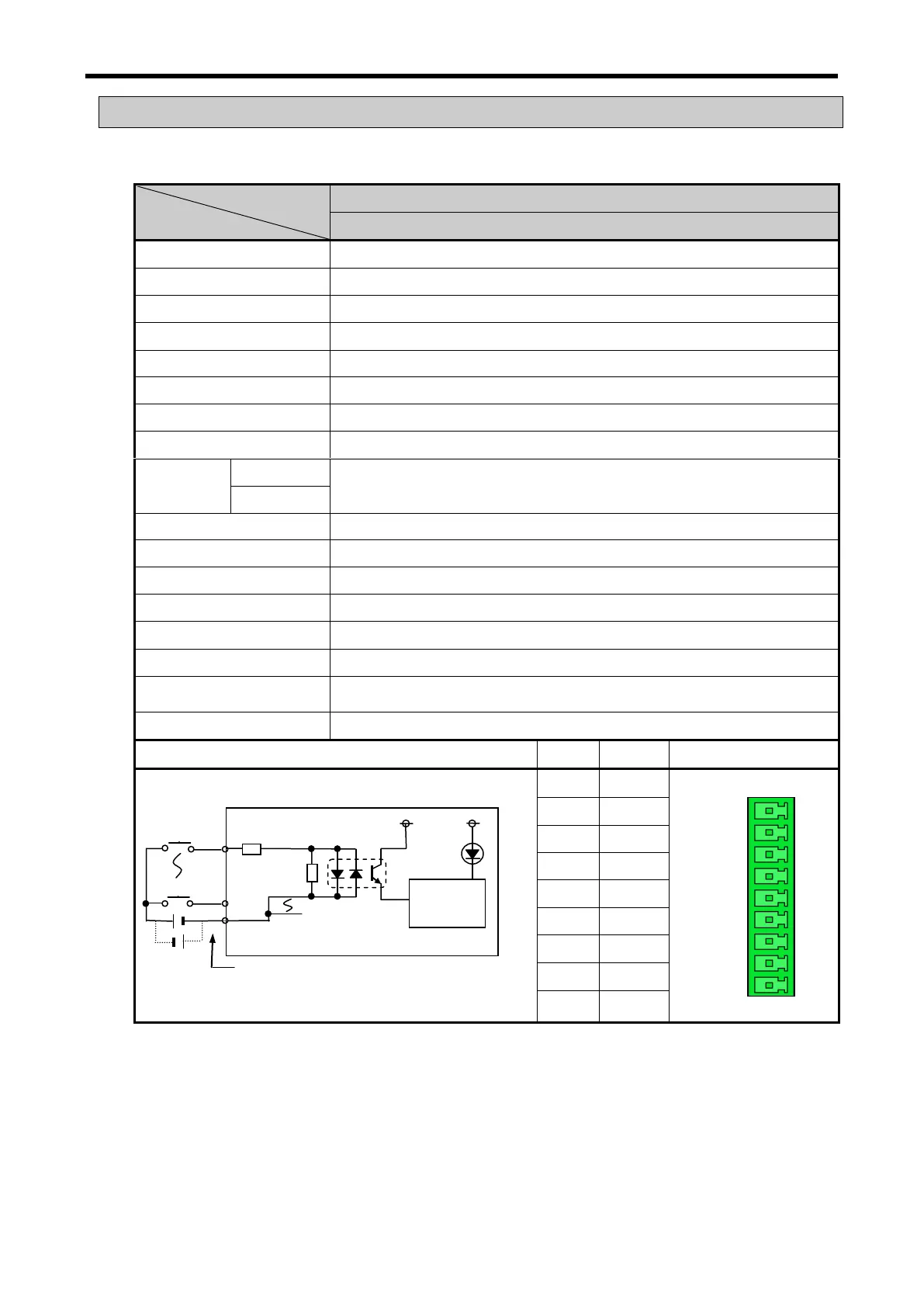

7.6 Combined Digital I/O module Input Specification
7.6.1 8 point DC24V input (Source/Sink type)
Model
Specification
DC input module
XBE-DR16A
Input point
8 point
Insulation method
Photo coupler insulation
Rated input voltage
DC24V
Rated input current
About 4 ㎃
Operation voltage range
DC20.4~28.8V (within ripple rate 5%)
On Voltage/Current
DC19V or higher / 3 ㎃ or higher
Off Voltage/Current
DC6V or less / 1 ㎃ or less
Input resistance
About 5.6 ㏀
Response
time
Off  On
1/3/5/10/20/70/100 ㎳(set by CPU parameter) Default: 3 ㎳
On  Off
Insulation pressure
AC560Vrms / 3Cycle (altitude 2000m)
Insulation resistance
10 ㏁ or more by Megohmmeter
Common method
8 point / COM
Proper cable size
Stranded cable 0.3~0.75 ㎟ (External diameter 2.8 ㎜ or less)
Current consumption
280 ㎃ (When all inputs and outputs are on)
Operation indicator
LED on when input on
External connection
method
9 pin terminal block connector
Weight
81g
Circuit configuration
No.
Contact
Type
TB1
0
TB2
1
TB3
2
TB4
3
TB5
4
TB6
5
TB7
6
TB8
7
TB9
COM
DC24V
Internal
circuit
R
7
0
TB1
COM
DC5V
Photo coupler
Terminal
block no.
TB8
TB9
LED
R
TB1
TB2
TB3
TB4
TB5
TB6
TB7
TB8
TB9
