6) R
evolution/Unit time
While auxiliary mode enable signal is On, it counts the number of input pulses for a specified time.
(a) Setting

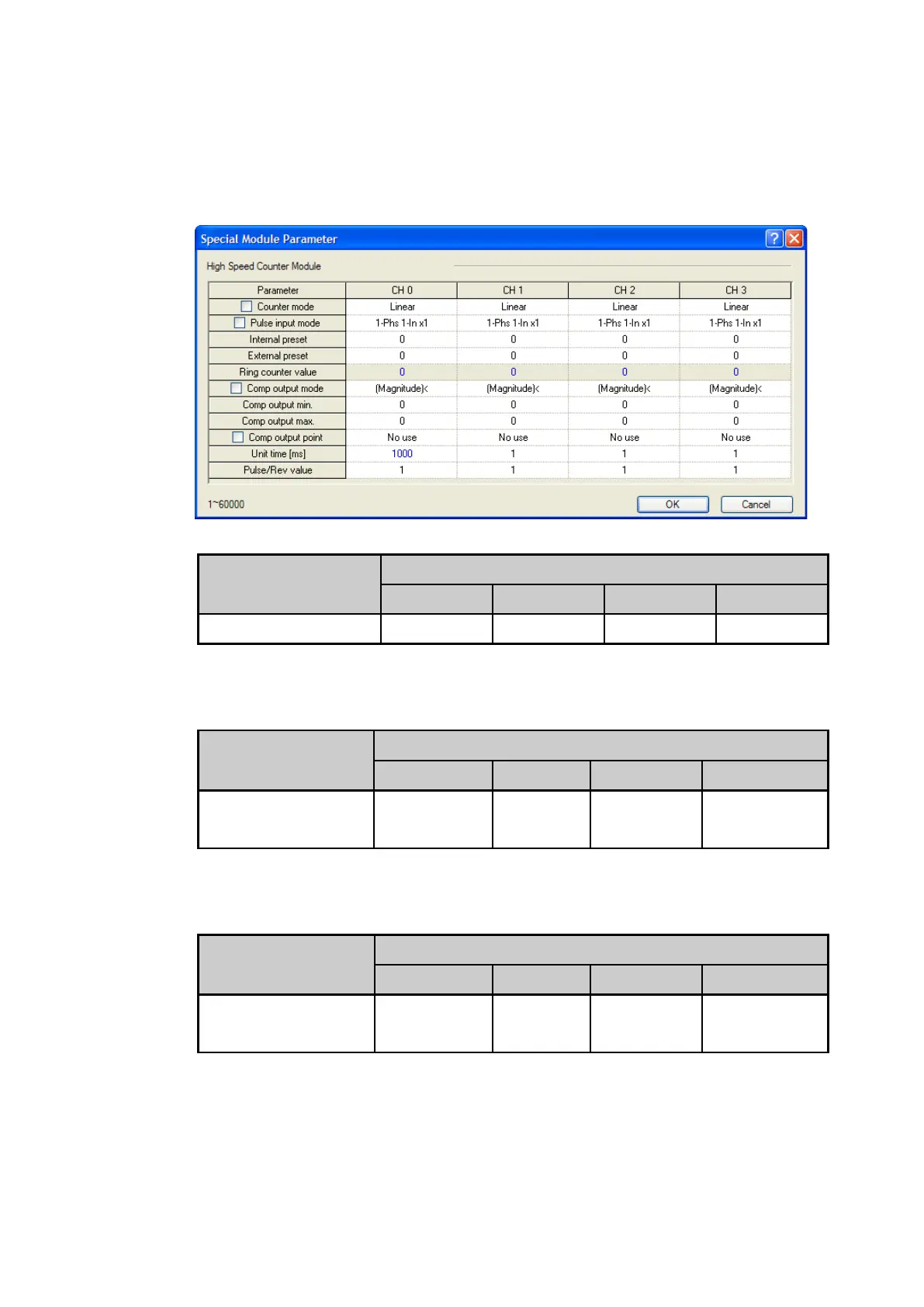

1) Input unit time and pulse number per 1 revolution
Setting value is saved at the following special K are and user can designate it directly.
Classification
Device area per channel
Channel 0 Channel 1 Channel 2 Channel 3
Unit time (1~60000㎳)
*3)
K322 K352 K382 K412
*3)
If revolution per unit time is enabled and unit time value is other than 1~60000ms, error code
‘34’ occurs.
2) Input pulse number per 1 revolution
Classification
Device area per channel
Channel 0 Channel 1 Channel 2 Channel 3
Pulse number /revolution
(1~60000)
*4)
K323 K353 K383 K413
*4)
If revolution per unit time is enabled and pulse number/revolution is other than 1~60000,
error code ‘35’ occurs.
3) If Count function of revolution per unit time is used, enable signal set by On.
Classification
Device area per channel
Channel 0 Channel 1 Channel 2 Channel 3
Revolution/unit time
command
K2605 K2705 K2805 K2905
(a) Count function of Revolution per Unit time is used to count the number of pulses for a
specified time while Enable signal is On.
