Appendix 4 Instruction List
App. 4-13

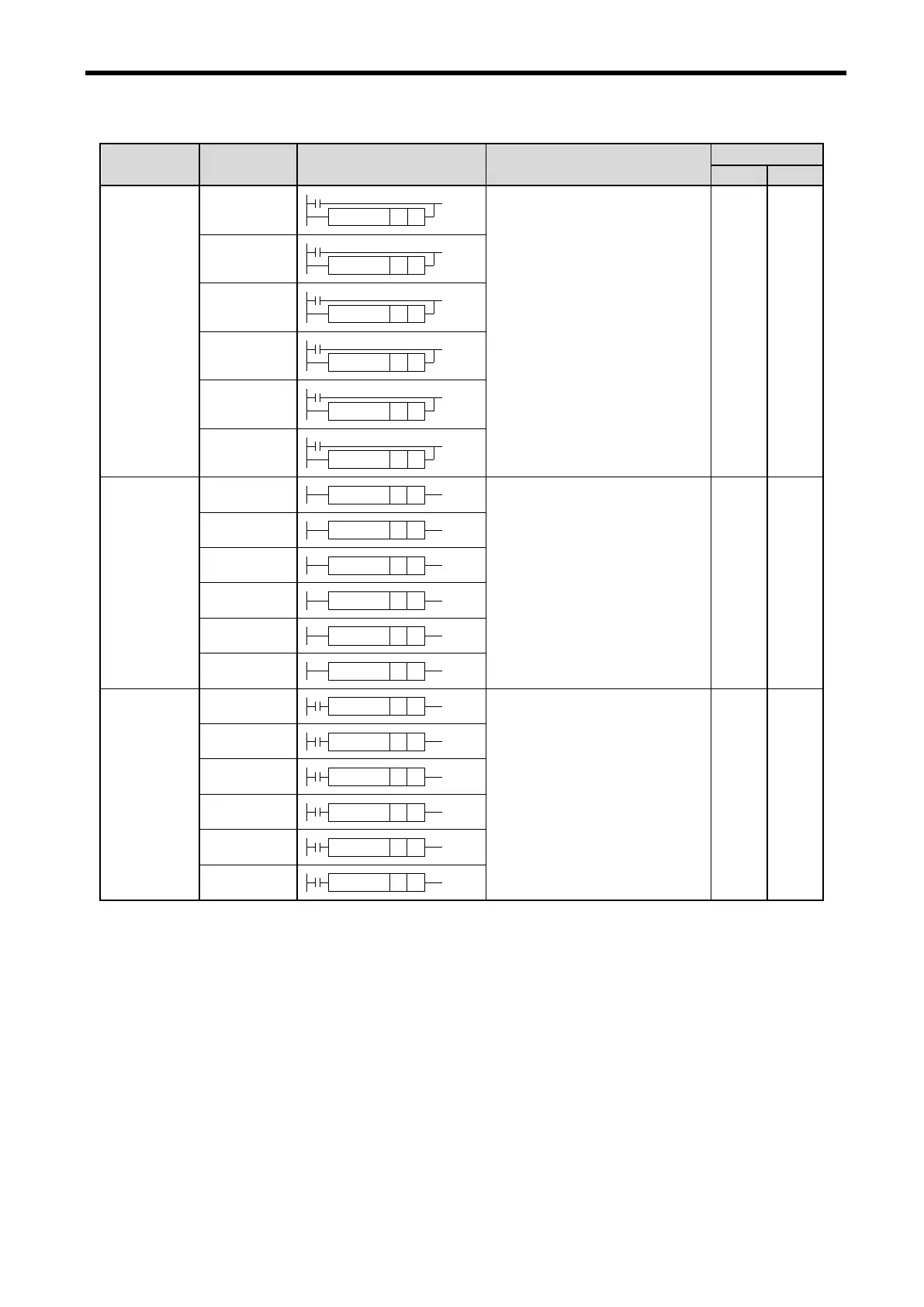

(4) Comparison instruction (continued)
Classification
Designations
Symbol
Description
Support
XGK
XGB
Double Real
Number
Compare
(OR)
ORL=
L= S2S1
Performs OR operation of (S1
+1,S1) & (S2+1,S2) Compare
Result and Bit Result(BR), and
then saves its result in BR
(Signed Operation)
○
○
ORL>
L> S2S1
ORL<
L< S2S1
ORL>=
L>= S2S1
ORL<=
L<= S2S1
ORL<>
L<> S2S1
String
Compare
(LOAD)
LOAD$=
$= S2S1
Compares (S1) to (S2) Starting
String and saves its result in Bit
Result(BR)
○
○
LOAD$>
$> S2S1
LOAD$<
$< S2S1
LOAD$>=
$>= S2S1
LOAD$<=
$<= S2S1
LOAD$<>
$<> S2S1
String
Compare
(AND)
AND$=
$= S2S1
Performs AND operation of (S 1)
& (S2) Starting String Compare
Result and Bit Result(BR), and
then saves its result in BR
○
○
AND$>
$> S2S1
AND$<
$< S2S1
AND$>=
$>= S2S1
AND$<=
$<= S2S1
AND$<>
$<> S2S1
