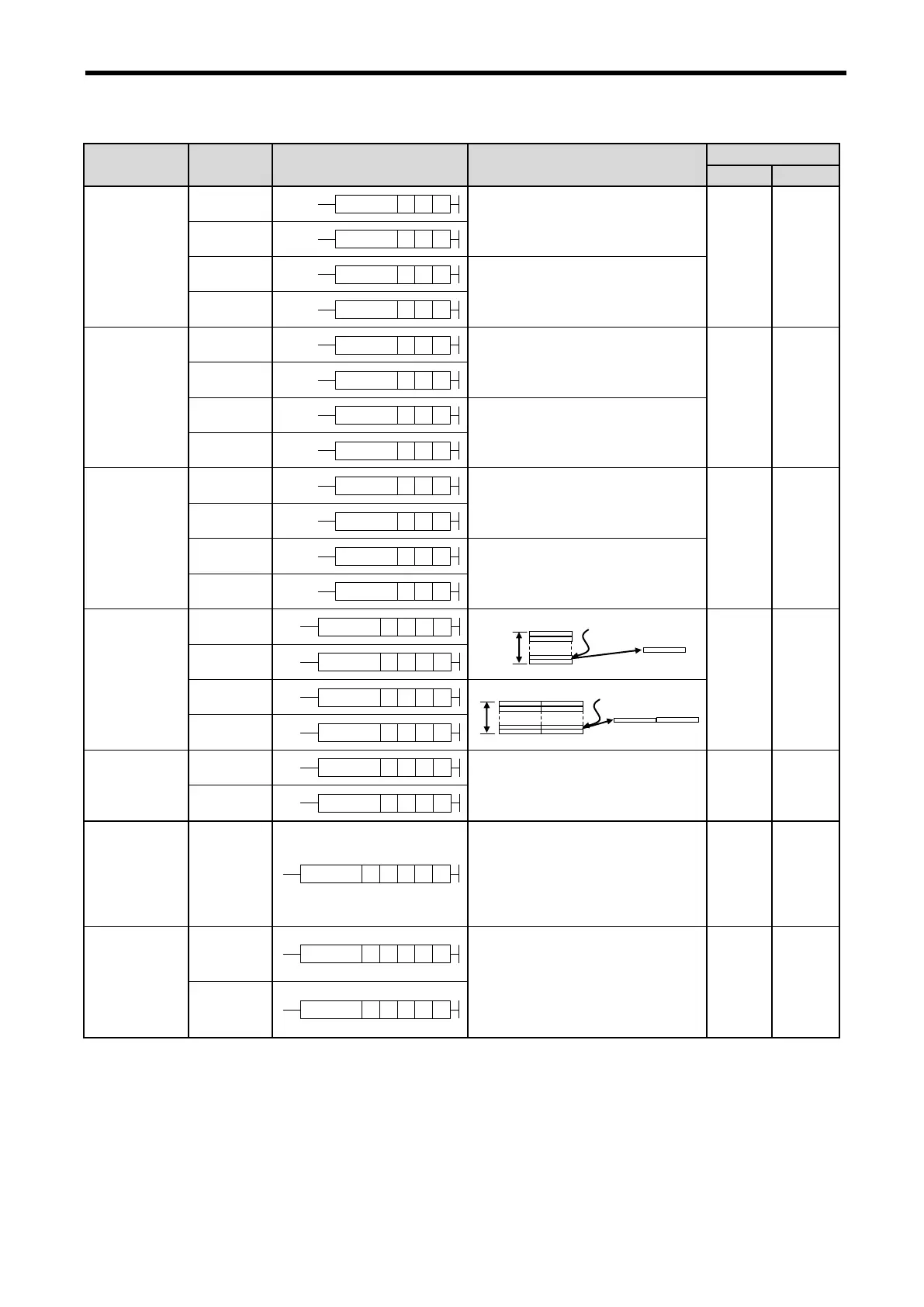

Appendix 4 Instruction List
App. 4-27
(12) Data process instruction (continued)
Classification
Designatio
ns
Symbol
Description
Support
XGK
XGB
Min. Value
Search
MIN
MIN nDS
Saves the min value in D among N
words starting from S
○
○
MINP
MINP nDS
DMIN
DMIN nDS
Saves the min value in D among N
double words starting from S
DMINP
DMINP nDS
Sum
SUM
SUM nDS
Adds up N words starting from S to
save in D
○
○
SUMP
SUMP nDS
DSUM
DSUM nDS
Adds up N double words starting
from S to save in D
DSUMP
DSUMP nDS
Average
AVE
AVE nDS
Averages N words starting from S
to save in D
○
○
AVEP
AVEP nDS
DAVE
DAVE nDS
Averages N double words starting
from S to save in D
DAVEP
DAVEP nDS
MUX
MUX
MUX NDS2S1
○
○
MUXP
MUXP NDS2S1
DMUX
DMUX NDS2S1
DMUXP
DMUXP NDS2S1
Data
Detect
DETECT
DETECT NDS2S1
Detects N data from S1, to save the
first value larger than S2 in D, and
the extra number in D+1
○
○
DETECTP
DETECTP NDS2S1
Ramp Signal
Output
RAMP
RAMP D2n3D1n2n1
Saves linear-changed value in D1
during n3 scanning of initial value
n1 to final n2 and present scanning
number in D1+1, and changes D2
value to ON after completed
○
○
Data
Align
SORT
SORT D2D1n2n1S
S : Head Address of Sort Data
n1 : Number of Words to sort
n1+1 : Sorting Method
n2: Operation number per Scan
D1 : ON if complete
D2 : Auxiliary Area
○
○
SORTP
SORTP D2D1n2n1S
S2
N
S1st data
D
S2
N
S1st data
D+1
S2+1
D
