Appendix 3 Motor Wiring Example
App.3 - 6

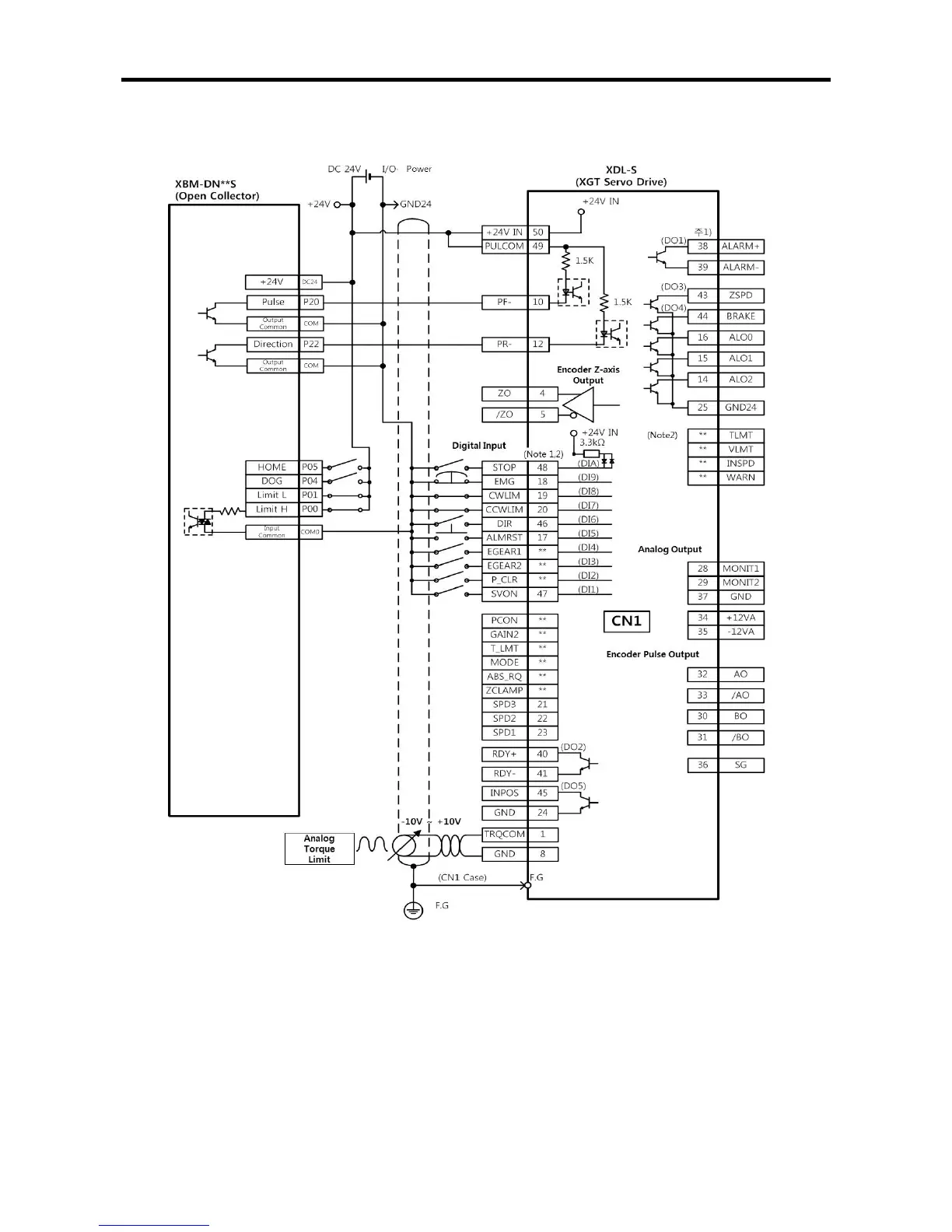

(4) Connection to a servo motor driver (XGT Servo XDL-S)
(a) In case of XBM-DN**S
※ This picture is based on 1-axis. For more information about 2-axis wiring, refer to
pin information.
(Note1) Input Signal DI1~DIA, Output Signal DO1~DO5 is assigned initial signal from factory shipment
(Note2) ** Not assigned Signal. Allocation can be changed by setting servo parameter
