34
Chapter 7 DIP
switch setting
<N
ot
e> Please turn off the machine before
changing DIP
switc
h setting.

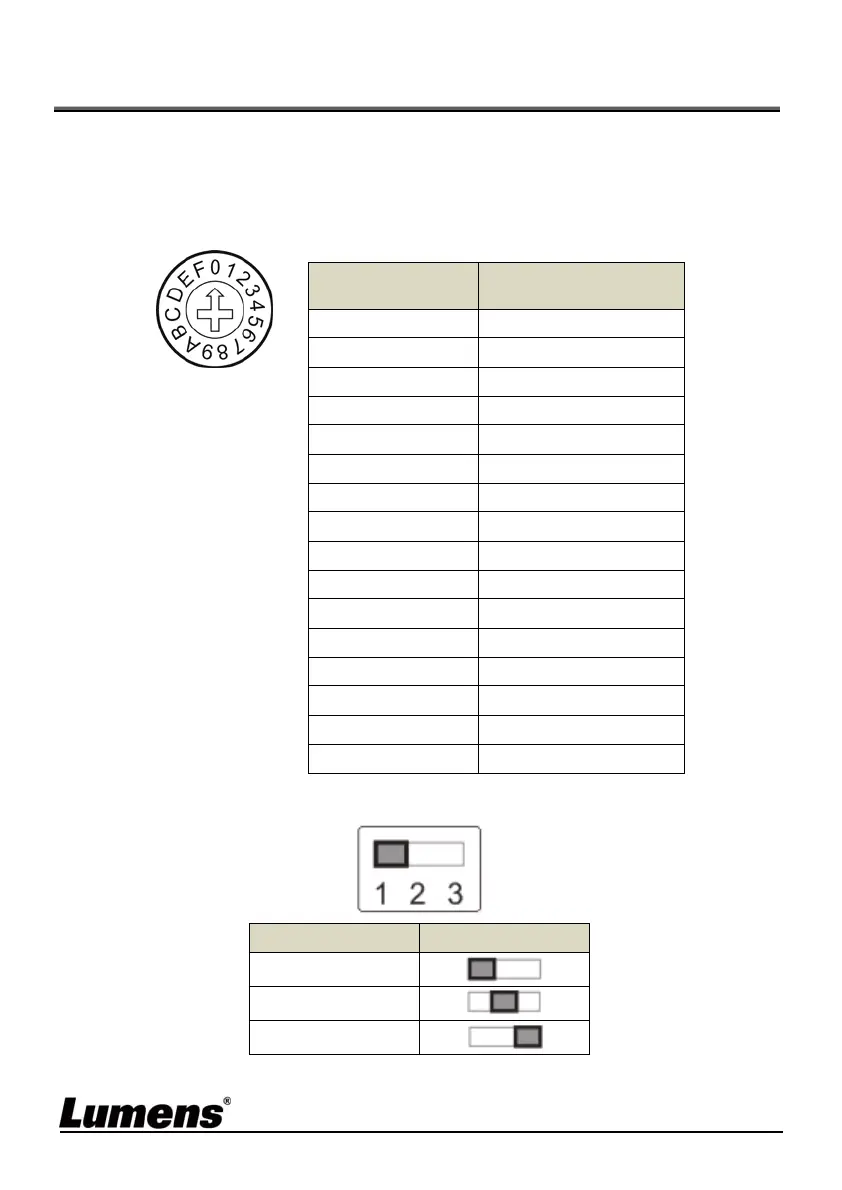

7.1 DIP SWITCH
7.1.1 OUTPUT
Switch
7.1.2 IR
SELECT
ID
Setting
1
2
3
Setting
Function
Descriptions
0 1920x1080/60p
1 1920x1080/50p
2 1920x1080/30p
3 1920x1080/25p
4 1920x1080/60i
5 1920x1080/50i
6 1280x720/60p
7 1280x720/50p
8 1280x720/30p
9 1280x720/25p
A 1080/59.94p
B 1080/59.94i
C 1080/29.97p
D 720/59.94p
E 720/29.97p
F Rese
rved
