English - 35

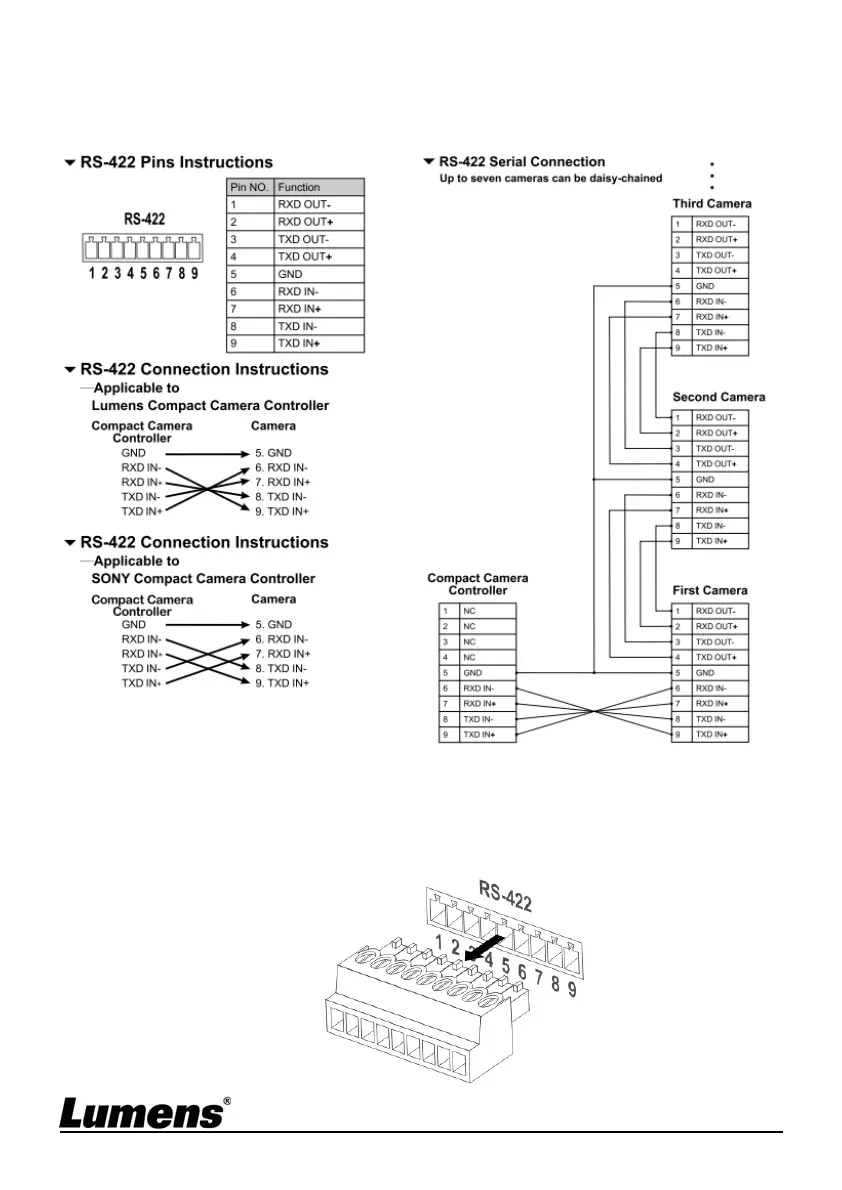

7.2 RS-422 Connection
7.2.1 RS-422 Pin Description
7.2.2 Use RS-422 Connection
1. Hold the two sides of RS-422 connector and pull out in the direction
shown by the arrow in the figure below
