English - 7
Chapter 3 Product Overview

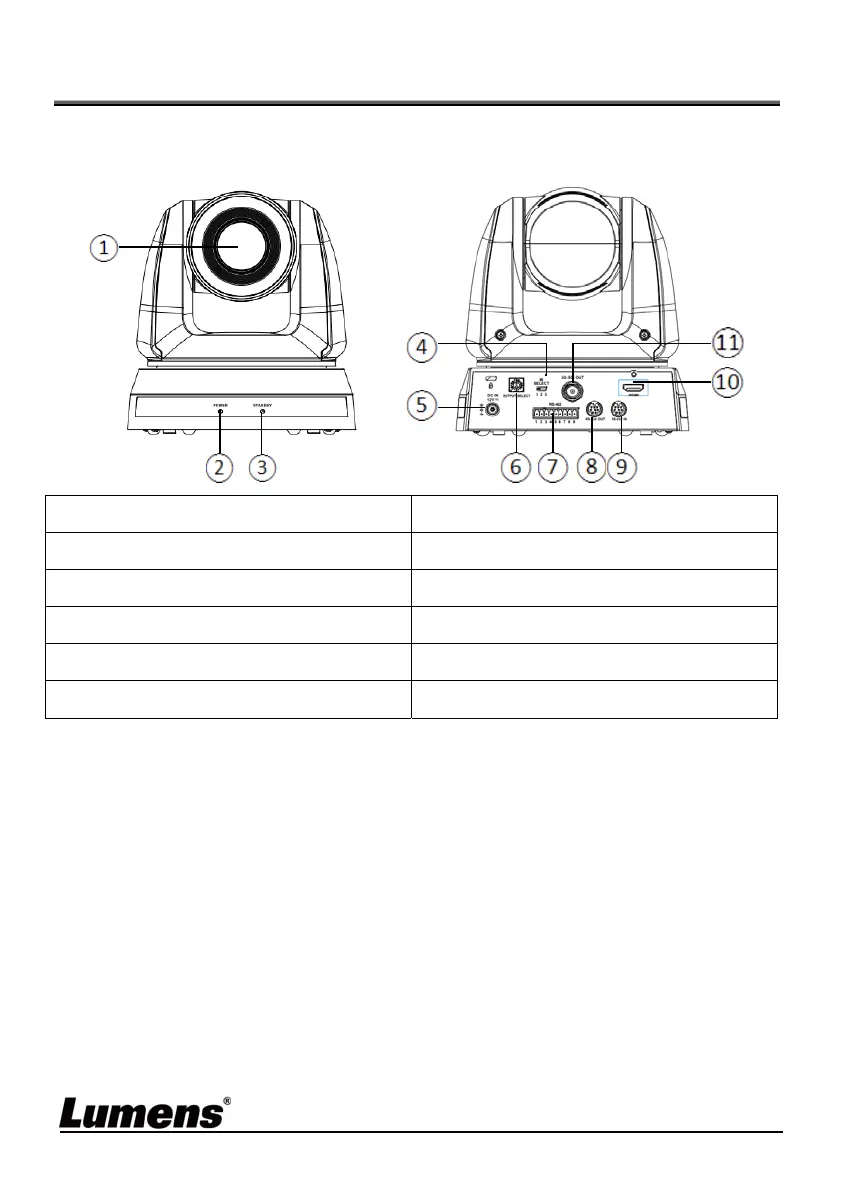

3.1 Overview
1. Camera Lens 2. Power LED Indicator
3. Standby LED Indicator 4. IR SELECT
5. Power Input 6. OUTPUT Switch
7. RS-422 Connection 8. RS-232 Output
9. RS-232 Input 10. HDMI Output
11. 3G-SDI Output
3.2 Description of LED indicator
3.2.1 Power：
3.2.1.1 No Light: Power off
3.2.1.2 Green light: In use
3.2.1.3 Flickering green: Signal from the remote control is received;
the indicator flickers every 0.5 second
3.2.2 Standby：
3.2.2.1 Orange: In standby mode
3.2.2.2 No Light: Power on
Front View Back View
