Chapter 5 Remote Control and Setting Menu

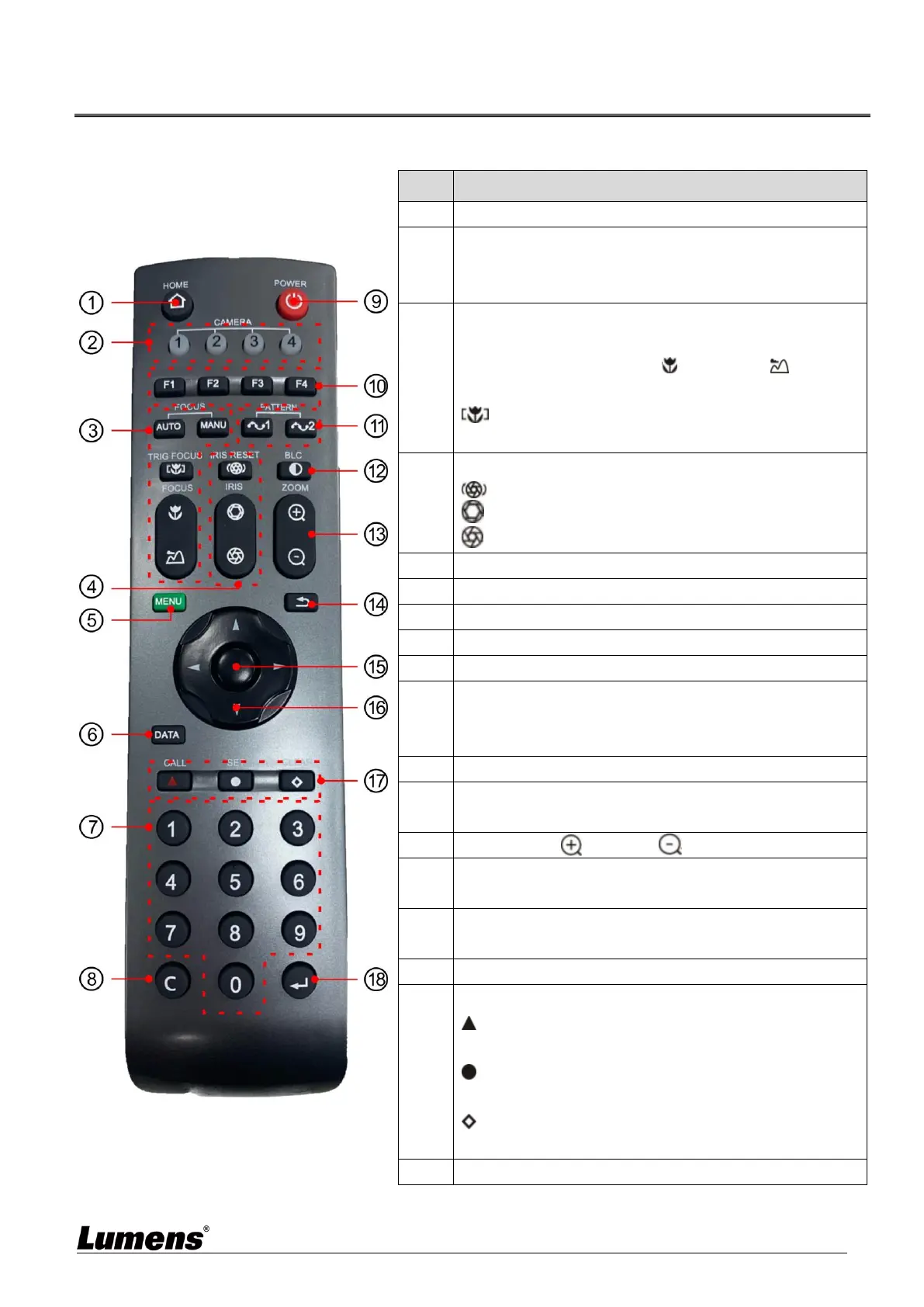

5.1 Functions of remote control
Item
Description
1
HOME button: PTZ returns to initial position
2
Buttons for selecting the camera: Only working for
Camera 1
Reserved buttons for Camera 2 ~ 4, no function
3
Focus button
[AUTO]: Auto focus
[MANU]: Manual focus, use -close focus / -long shot
adjustment
: One push focus, each time you press the auto focus
button, it will change to manual focus mode
4
Aperture button (for manual mode)
: Reset to the default value of the aperture
: Increase the aperture (image becomes brighter)
: Reduce the aperture (image becomes darker)
5
Menu button: Display/close OSD menu
6
Reserved button, no function
7
Number button: Used to enter numbers, such as the preset
8
Reserved button, no function
9
Power switch button: Turn on/off the camera
10
F1: start auto tracking/F2: stop auto tracking/F3: switch
PTZ, panoramic screen, PIP (only applicable to HDMI/SDI
output)/F4: no function
11
Reserved button, no function
12
Back light compensation button: Turn on/off back light
compensation function
13
Zoom button: zoom in
；
zoom out
14
Return button: Return to the upper level options of the
setting menu
15
OK button: Enter the lower level options of the setting
menu, confirm button
16
Direction button: Move the lens
17
Preset buttons
CALL: Press the number button first, then press CALL
to load the location of the set
SET: Press the number button first, then press SET to
save the current location
CLEAR: Press the number button first, then press
CLEAR to clear the location
18
Reserved button, no function
