English - 7

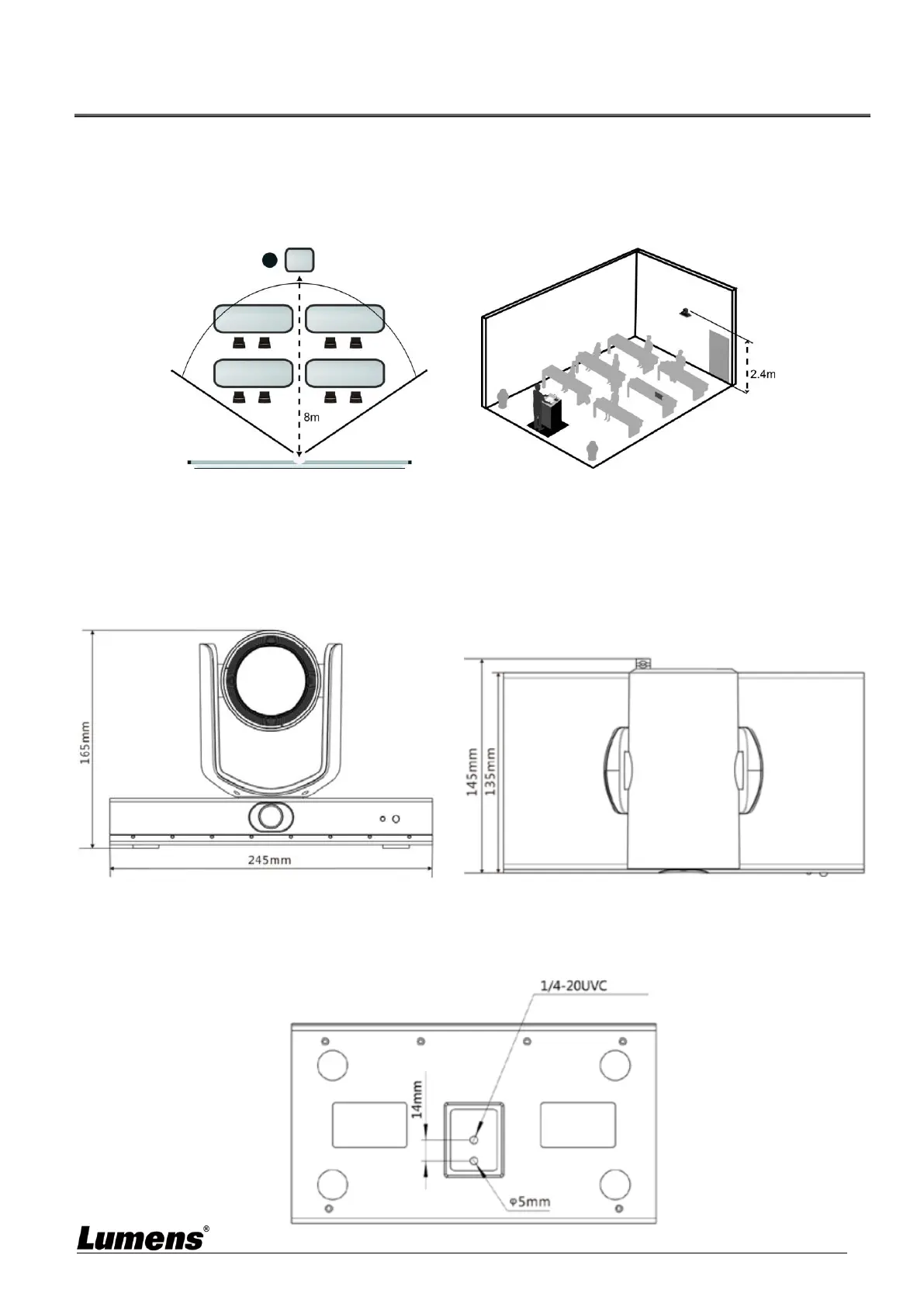

Chapter 4 Instruction for installation
4.1 Scenario
Applicable distance range of VC-TR1: 4-15 m, best tracking target distance recommended:
8 m
Mounting height: 2 - 3 m, best height recommended: 2.4 m
4.2 Camera Size
4.2.1 Camera Front View and Side View
Length x Width x Height: 245 x 145 x 165 mm
Weight: 1.4 Kg (without mental plates)
4.2.2 Bottom of Camera
The camera can be mounted on a 1/4” - 20 UNC PTZ tripod deck by using the lock holes on the
bottom for the tripod
