Setup
Choose one of the items in the sub menu to setup the device.
Once in a setup page, help is available on almost every field title. Just
click on the question mark next to the topic. A pop up frame will display
the overall information of each term displayed on the Web interface.
● Node
To setup the node click on the appropriate sub menu item in the Setup
navigation bar (Node).

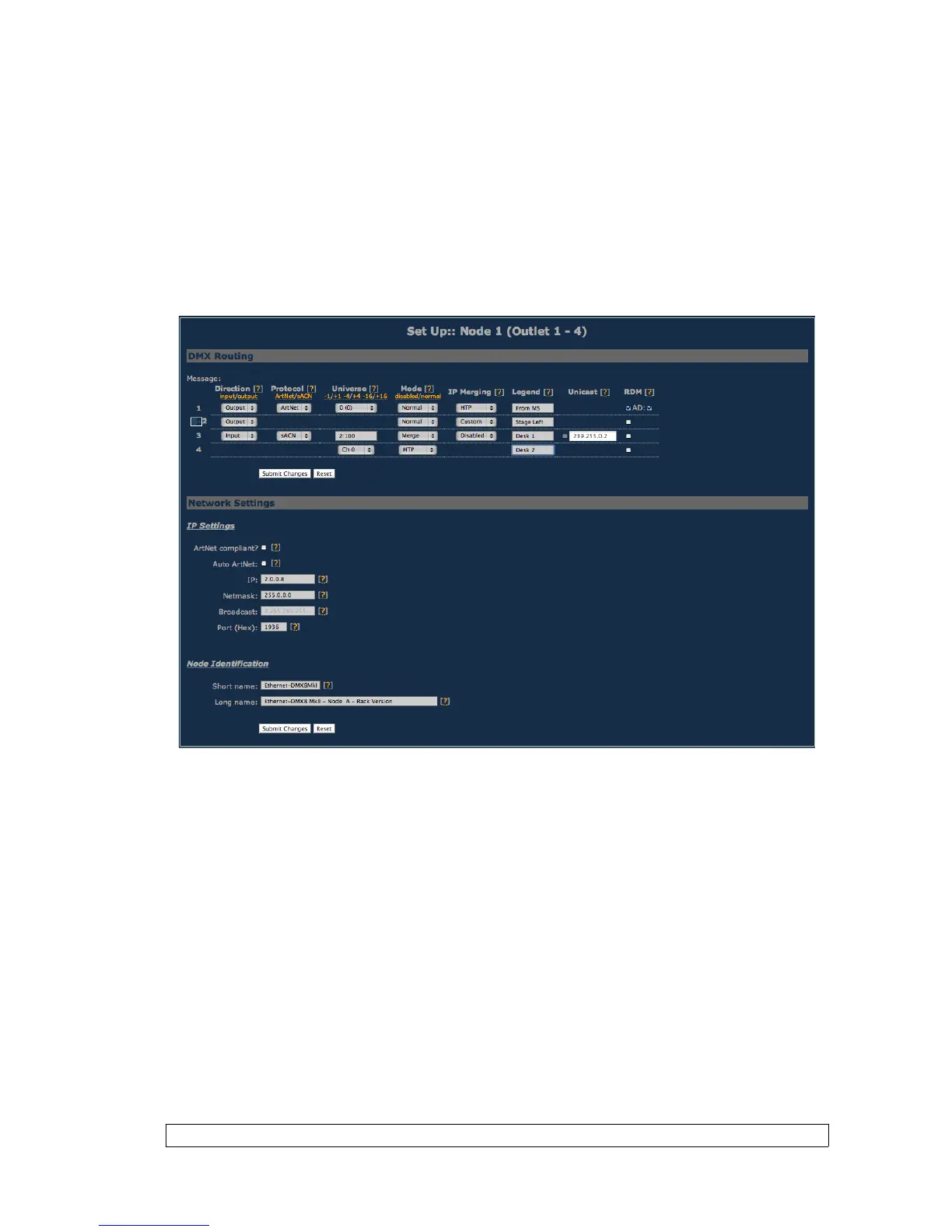

This is the main settings page. You can setup every single outlet of the
node, as input or output. Select the outlet's direction, mode, protocol and
universe, enable/disable RDM traffic. Here you can also change the IP
address, Netmask, port and the Art-Net™ short and long name indication.
Node 1 link will lead you to outlets 1 to 4 configuration. Node 2 link will
lead you to outlets 5 to 8 configuration page.
Ethernet - DMX8 MkII Range Page 15 of 35
