Ethernet-DMX8 MkII Truss
The device operates with an AC voltage between 100V and 240V within a
frequency range of 50Hz and 60Hz.

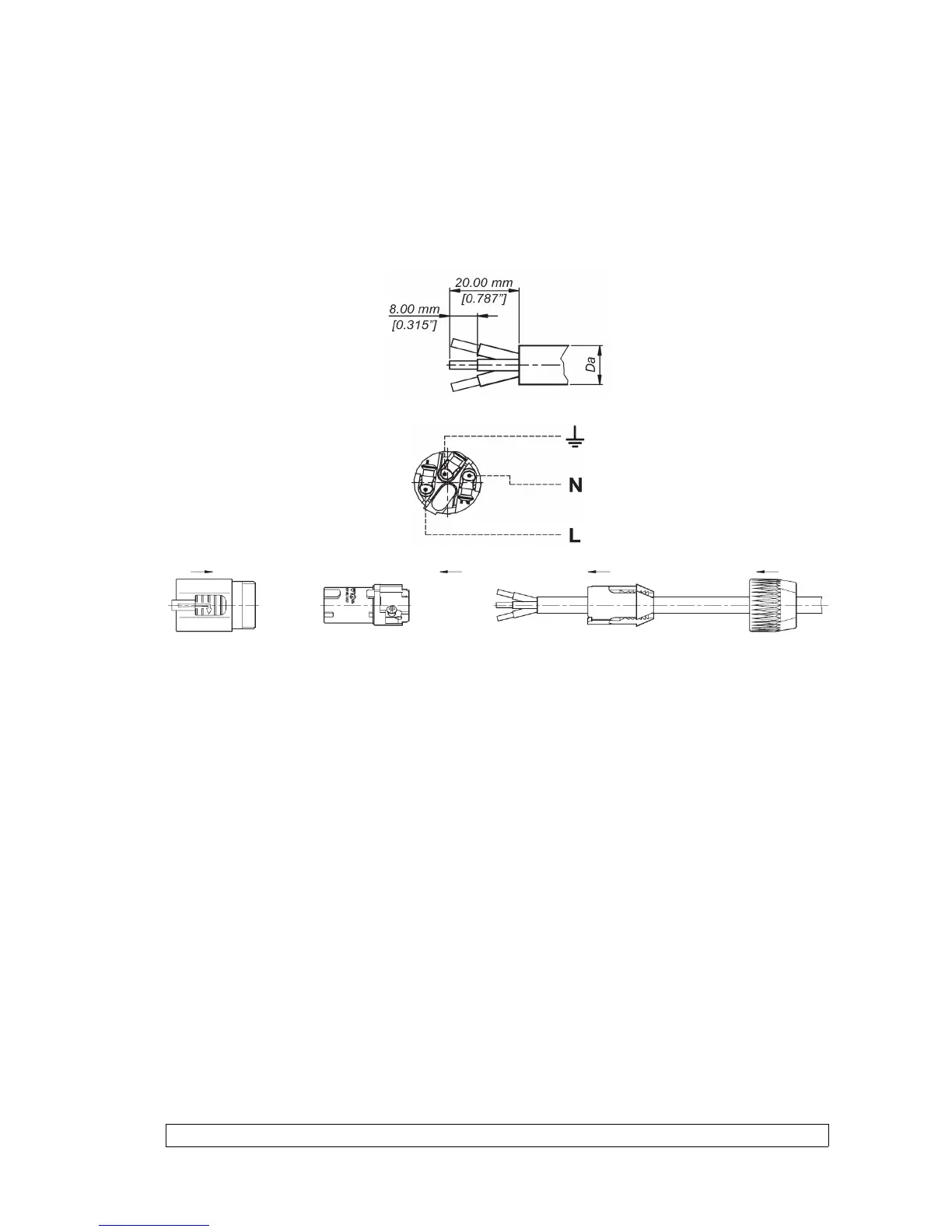

A Neutrik PowerCon IN connector can be connected to the device. Please
use an authorized plug and connect the cores in the mains lead in
accordance with the following scheme:
Green / Yellow: Earth
Blue: Neutral
Brown: Live
!!! This equipment must be earthed !!!
• Ethernet
1 Neutrik RJ45 Ethercon is provided as Ethernet link.
• DMX input / output
8 shielded Neutrik 5 pin gold plated female connectors are provided as
outlet (input or output). All DMX outlets are optic and galvanic isolated.
See detailed pinout on page 11.
Ethernet - DMX8 MkII Range Page 9 of 35
