• Firmware upgrade

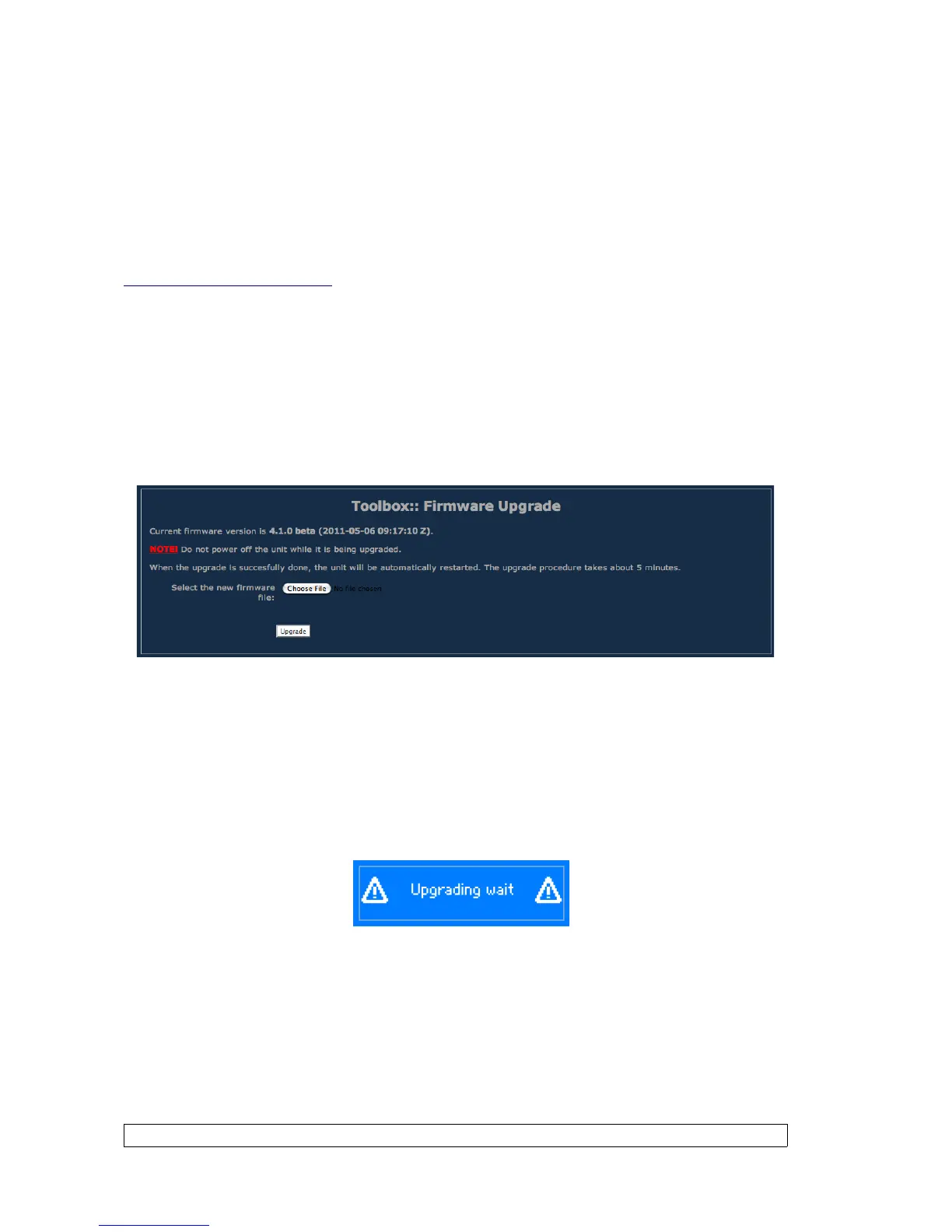

The firmware upgrade page allows you to select a downloaded firmware
file and upload it to the device.
This page shows the actual firmware version running on the unit below the
file upload field.
The latest firmware file can always be downloaded from the Luminex web
pages.
Http://www.luminex.be
To install the firmware on the Ethernet-DMX8 MkII follow these steps:
1. Download the .zip file and save it on your hard disk.
2. Extract the .zip file.
3. Please read the "ChangeNote.txt" for latest release changes.
4. Browse to the device its IP address with your favorite web browser.
5. Click Toolbox -> Firmware upgrade.
6. Browse to the extracted upgrade file on your hard disk
(ethdmx8mkii_v4.X.X.bin), where X.X represents firmware version.
7. Select the file and press on the "Upgrade" button.
8. The upgrade file will be sent to the device. The following message
appears on the front end display:
Page 32 of 35 Ethernet - DMX8 MkII Range
