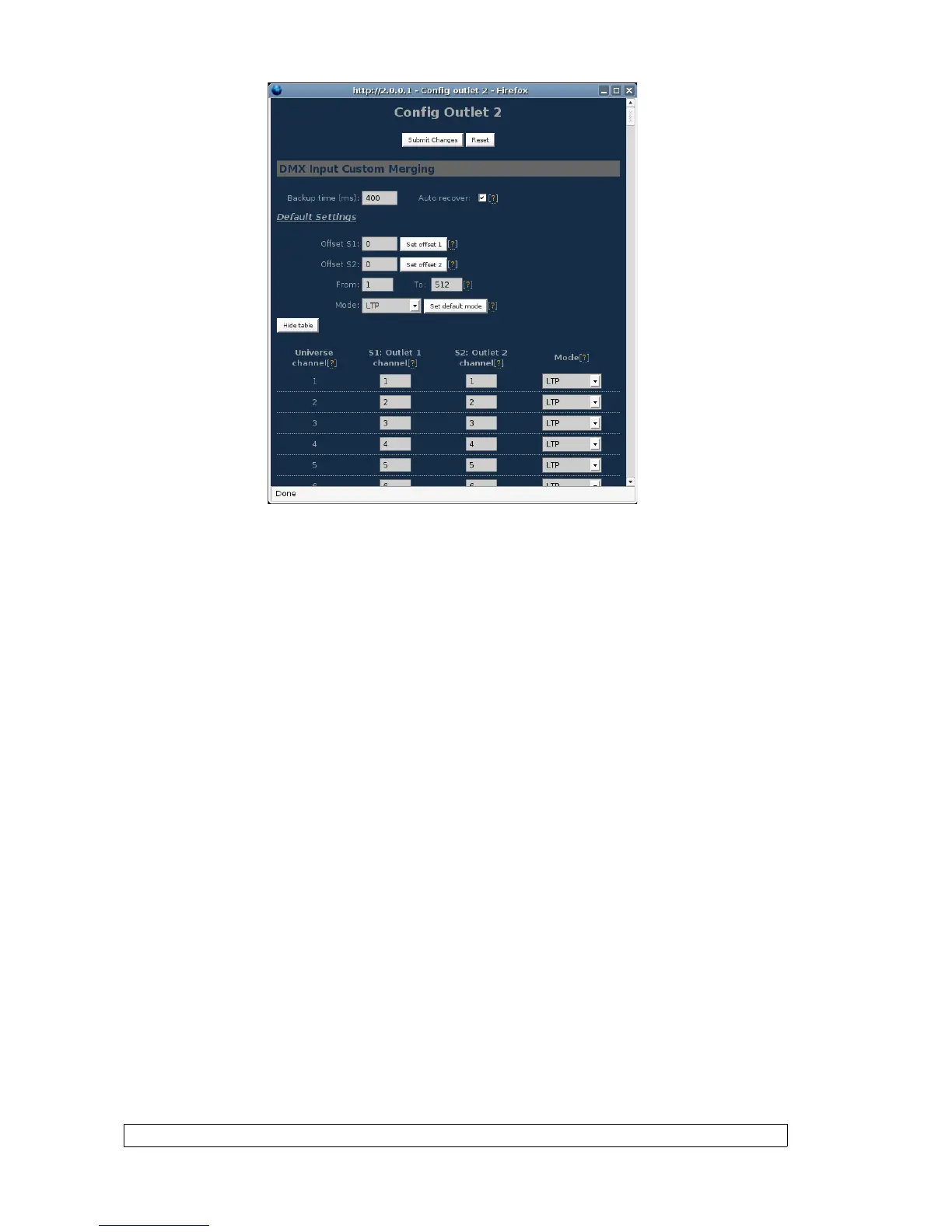

Click on “Show Table” button to see the complete soft patch available for
this outlet.
– Offset S1 & S2 : Enter a value for the desired offset of the starting
channel for outlets 1 or 2; example, for channels 1 to start on the third
channel, enter 3.
– From – To : this range let you quickly set the policy you need on the
channel range of your choice. example, if you need HTP policy on
channels 23 to 145, enter 23 in the “From” field and “145” in the “To”
field. Then select the HTP policy in the “Mode” drop down list, then
press “Set Default Mode”.
Notice that following policies are available for each channel:
Zero, HTP, LTP, S1 only (Source 1 only), S2 only (Source 2 only); S1 as
Backup (Source 1 as backup), S2 as Backup (Source 2 as Backup).
The left column represent the resulting universe channel number
streamed to the network. S1 column represents Source 1 channels and S2
column Source 2 channels. It's thus easy to understand that you can
create your own soft patch by entering the channels of your choice in one
of theses column.
Once your patch is created, click submit to close the window, then click
submit again on the node page to record your settings.
Page 20 of 35 Ethernet - DMX8 MkII Range
