LX Navigation lx 7000 User Manual

LX7000 Mar.2002
Page 20

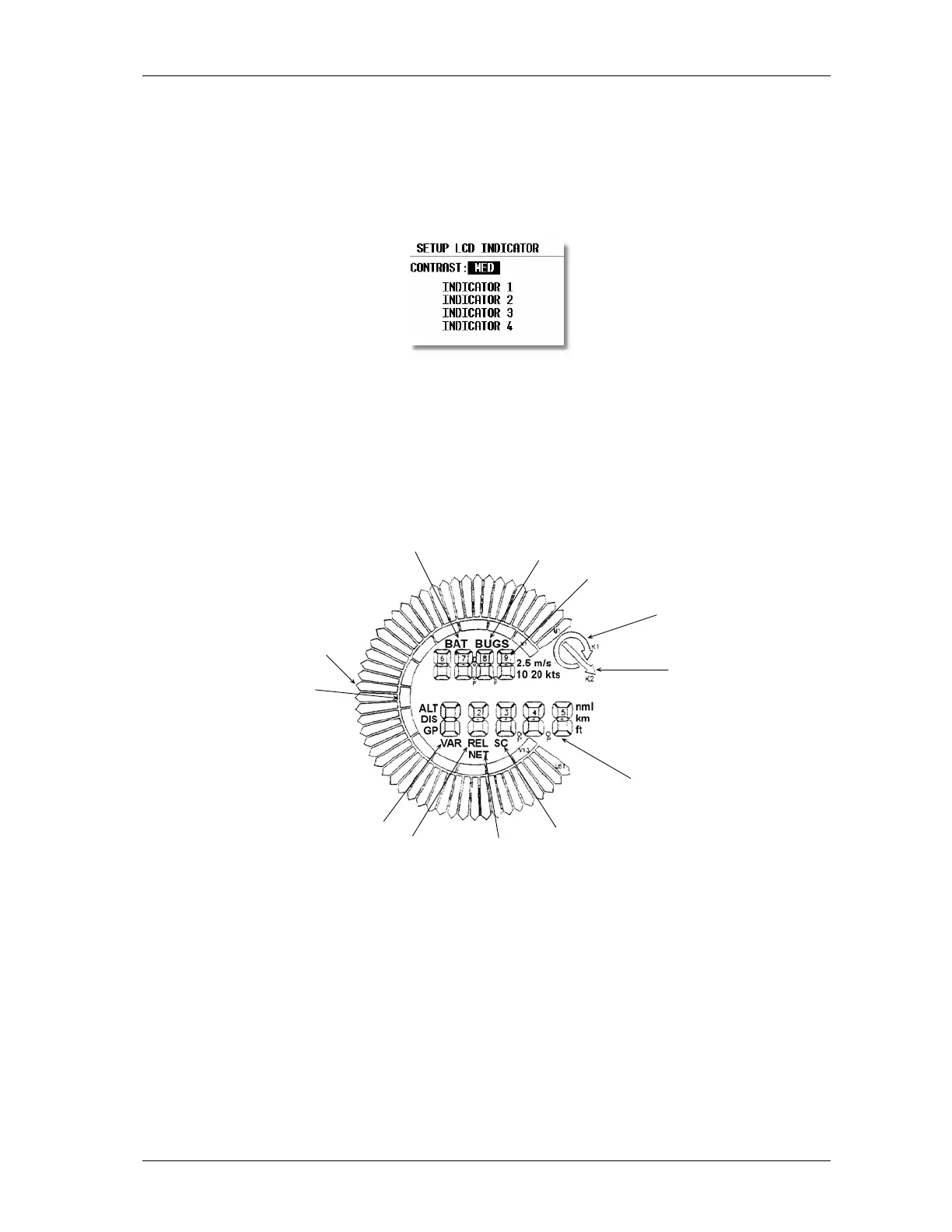

3.1.2.13 LCD IND. (LCD – vario indicator)
The LCD vario is an integral part of the LX 7000 analog unit and has address INDICATOR 1definitively. Next units
could be connected via 485 bus and ordered like options. Using bus, generally an unlimited number of devices can
be connected to the LX 7000. The LX 7000 delivers 4 different data sets for the indicators, that means maximum 4
indicators are able to indicate different and the rest of them are simple repeaters.
To adjust viewing angle use contrast setting from LOW to HIGH. The layout of the indicator consists of:
• Needle
• Two numerical displays
• Diverse symbols
• Needle
• SC Ring Always SC indicator, regardless of mode.
• Upper Number Display
• Vario Mode Indicator
• Lower Number Display
• Netto
• Relative
• SC
• GP
LOW BATTERY
INDICATOR
BUGS
INDICATOR
VARIO MODE
INDICATOR
SPEED COMMAND
MODE INDICATOR
LOWER
NUMBER
DISPLAY
UPPER
NUMBER
DISPLAY
NEEDLE
SPEED
COMMAND
RING
NEEDLE
SHOWS
VARIO NEEDLE
SHOWS
RELATIV
NEEDLE
SHOWS
NETTO
NEEDLE
SHOWS
SPEED
COMMAND
