2.2 Technical data
• Power 8-16 V DC
• Consumption 400mA/12V (without audio)
• 80 mm std Aircraft cutout main unit.
• 57 mm std. Aircraft cutout LCD unit.
• Length 110 mm (exc. connector)
• NMEA output
• Winpilot interface
• 12 Channel GPS receiver (LX 7000 standard)
• External speaker
• Data compatible with LX 20 and Colibri.
• PC communication
• Wiring
• Additional LCD Vario could be connected via 485 bus
• Weight: 800g
2.3 Rotary switches and keys (buttons)
• four rotary switches (selectors)
• six keys (push buttons)
LCD Vario indicator of LX 7000 analog unit hasn’t any controls

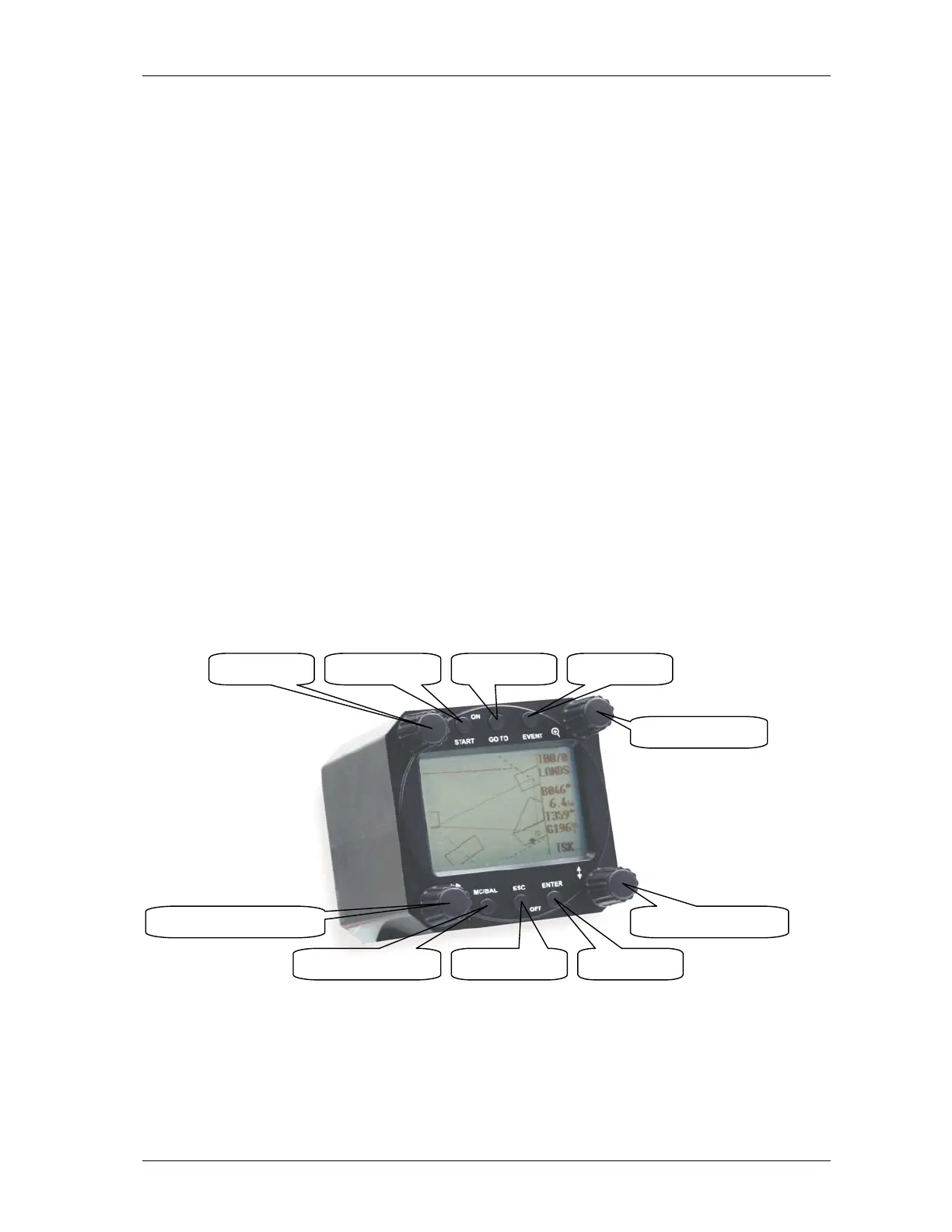

EVENT keyGO TO key ON/Start key VOL control
ZOOM r. switch
UP/DOWN r.switch
ENTER keyESC/OFF keyMC/BAL input key
Mode selector r. switch
