LX7000 Mar.2002
Page 8
3 Operation modes
The LX 7000 has 7 modes or main menus. All of them are selected directly by rotating the ⇔ or by GO TO key.

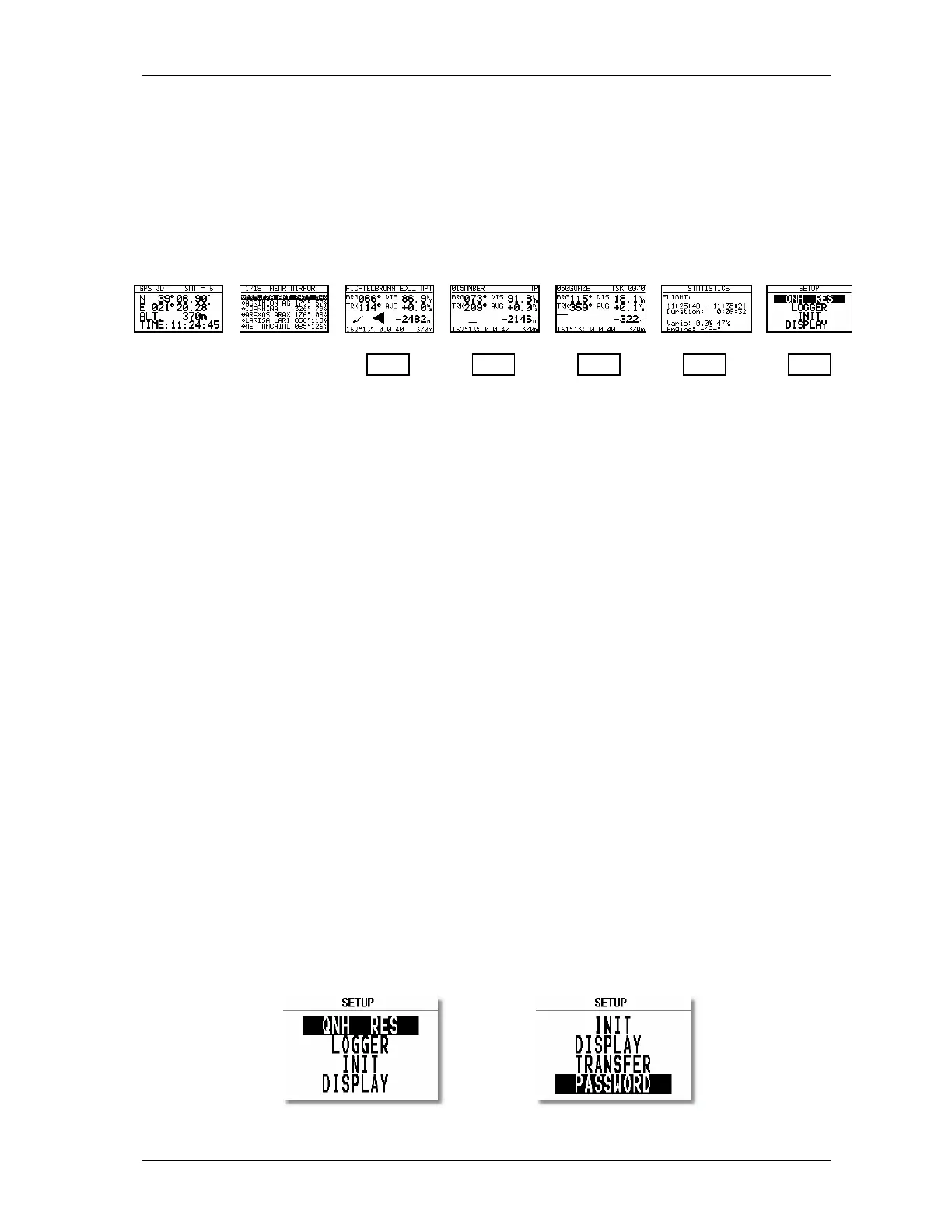

The diagram shows us the menu (mode) structure of LX 7000.
⇐MODE⇒
Navigation menus (APT, TP, TSK) have sub menus, which are selected using v.
GPS GPS status no input
NEAR Near airport no input
APT Navigation and selection of airports
TP Navigation, selection and edit of turnpoints
TSK Navigation, selection and edit of task
STAT Flight statistic and logbook
SETUP is organized in two levels. The first level (no password required) is accessible for everybody. For the second
level, the pilot has to use the password. The password is not a top secret; it is the same for all instruments and
published.
96990
After installation it is necessary to activate the password and adjust the instrument settings and desired units.
3.1 SETUP
3.1.1 SETUP before password
Changes can be made at any time. This first level contains no system settings at all.
v will select corresponding sub menus.
⇓ ⇓ ⇓ ⇓ ⇓
⇓ ⇓ ⇓ ⇓ ⇓
GPS NEAR APT WPT RTE STATISTIK SETUP
