Vehicle Communication Interface (VCI)
The Vehicle Communication Interface (VCI) translates vehicle diagnostic data link information for the handset
using Wi-Fi wireless technology or a linked cable. The wireless capability of the tool is designed to communi-
cate with the VCI when it is within a range of roughly 30 feet, even though it is possible to go farther. Every
shop has different noise that can interfere and hamper the distance of a wireless network. Some types of noise
include cordless phones, certain lighting, other wireless networks in the area, and other signals.

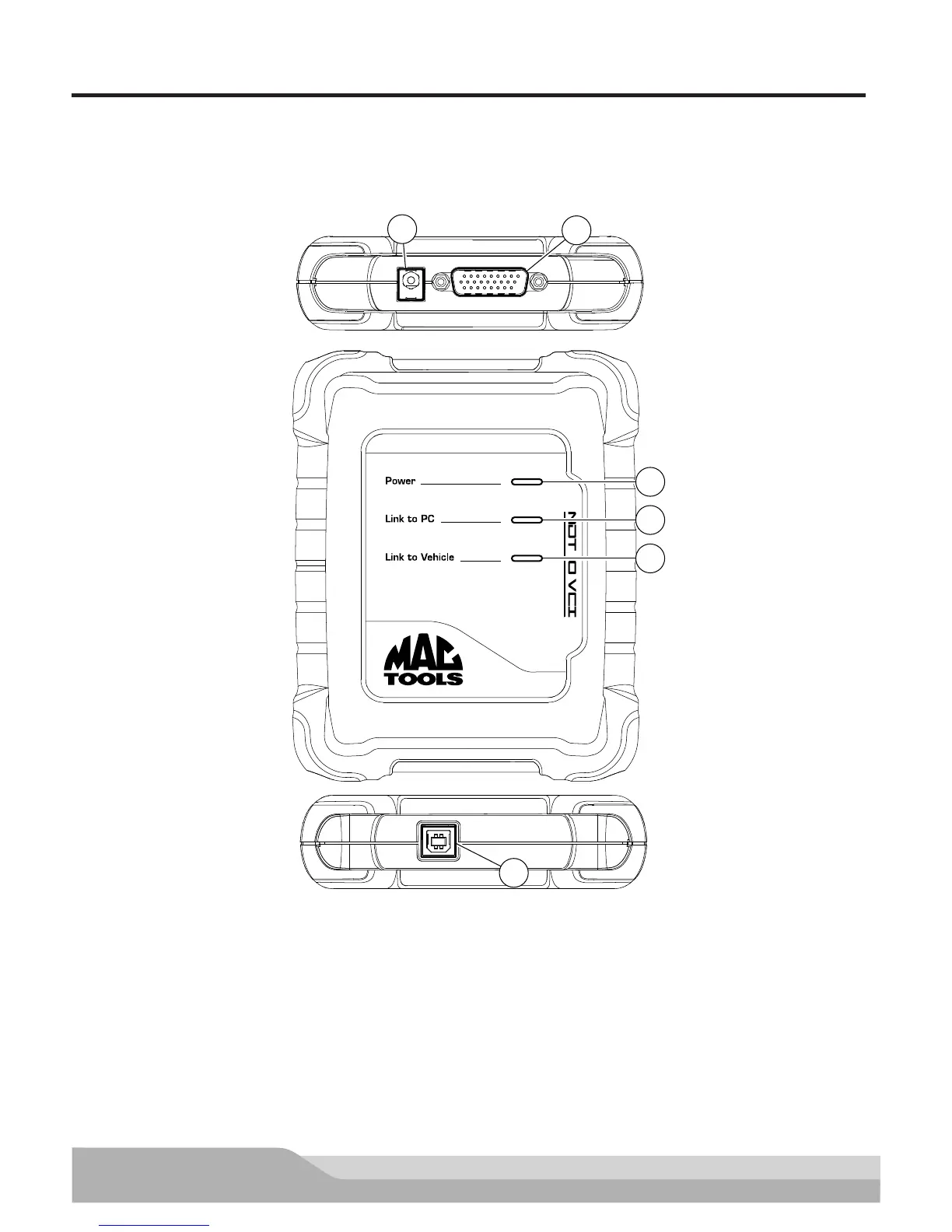

ss02586
1
2
3
4
5
6
VCI
1. Power port (used when necessary)
2. DLC/OBDII cable port
3. Power
• Indicates the VCI has received power.
4. PC Connection
• Indicates the VCI is communicating with the PC.
5. Vehicle Connection
• Indicates the VCI is communicating with vehicle by wireless Wi-Fi or USB
6. USB “B” Port
