Data Stream Button Definitions
Use English/Standard Units
Selecting English/Standard Units will switch
from Metric Units to English/Standard Units.

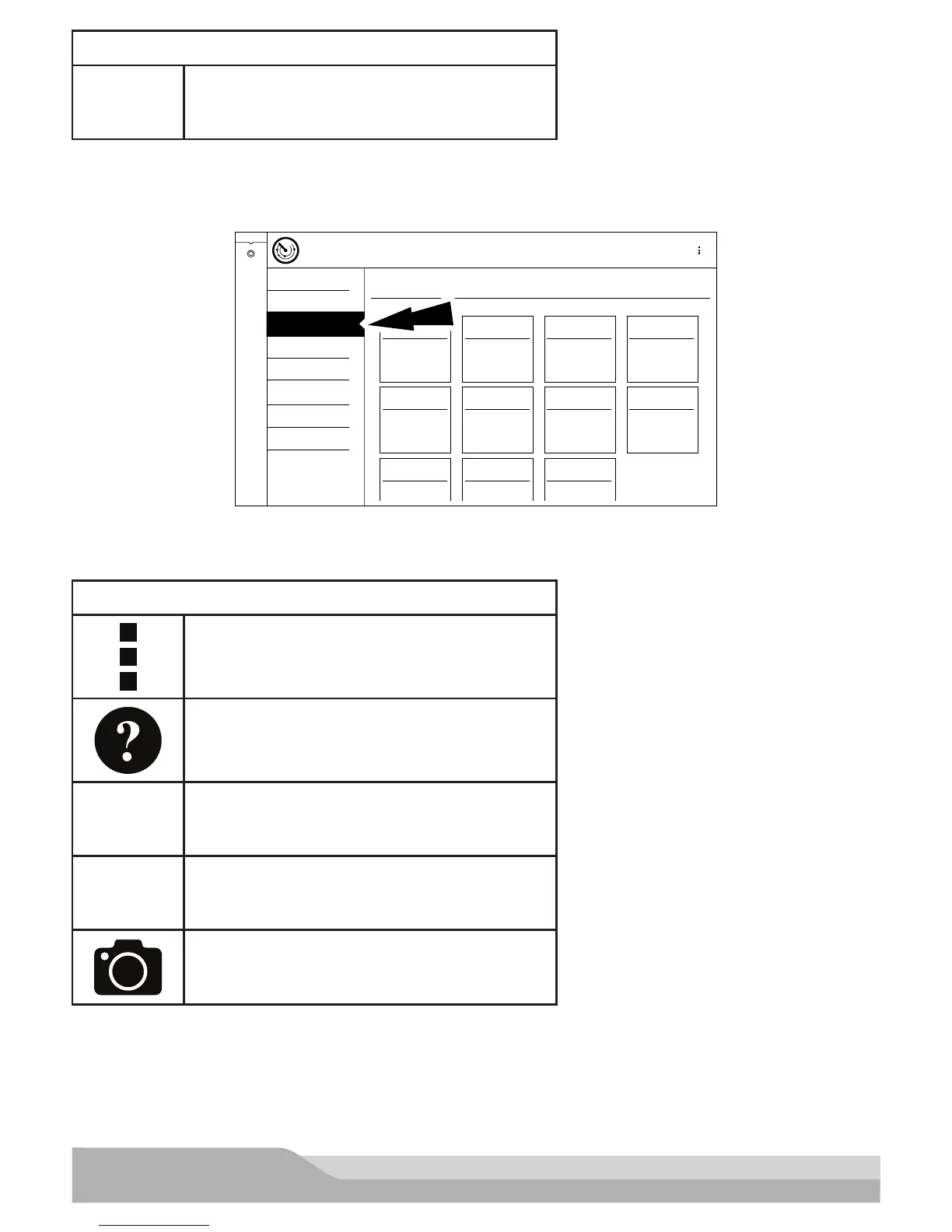

Freeze Frame
Mode 2 views data captured when a fault occurred. Freeze frame shows a data stream snapshot that was auto-
matically recorded by the ECU when one or more DTCs occurred.
Generic OBDII
READINESS MODE 1
DATA STREAM MODE 1
Engine Coolant
Temperature
FREEZE FRAME MODE 2
DTC’s MODES 3,4,7,A
O2 SENSORS MODE 5
NON-CONTINUOUS TESTS
MODE 6
SPECIAL TESTS MODE 8
VEHICLE INFO MODE 9
Generic OBDII
Current
Mode 2 Freeze Frames
81 °F
Barometric Pressure
7 inHg
Distance Since DTC Clear
20657 miles
Fuel Rail Pressure Gauge
107.9 psi
Distance MIL Active
19894 miles
Fuel Rail Pressure
Relative To Manifold
Vacuum
749.9 psi
Evaporative Emissions
System Vapor Pressure
-1762.05 iHg
Catalyst Temperature
Bank 2 Sensor 1
8686 °F
Catalyst Temperature
Bank 1 Sensor 2
7290 °F
Catalyst Temperature
Bank 2 Sensor 2
671 °F
Catalyst Temperature
Bank 1 Sensor 1
3317 °F
ss02422
Freeze frame records each sensor’s current information at the time a DTC sets. This feature could be used when
diagnosing an intermittent condition that requires certain conditions are met before the fault is active.
NOTE: DTCs are not always stored in Mode 2 freeze frame.
Freeze Frame Button Definitions
Menu Button
Tapping the Menu button displays a pop-up link
that takes the user to more buttons.
View Help
Selecting View Help will open an online opera-
tors manual.
Use Metric Units
Selecting Metric Units will switch from English/
Standard Units to Metric Units
Use English/Standard Units
Selecting English/Standard Units will switch
from Metric Units to English/Standard Units.
Take Screen Capture
Selecting Take Screen Capture will save a copy
of the current open screen.
