Manual DTCs
Certain vehicles do not support standard DTC protocol and will require a manual process for retrieving and
clearing codes.
Diagnostic Trouble Codes
Current
Subrau
ABS
2002
1) Take out diagnosis connector from side of drive’s seat heater unit.
2) Turn ignition switch Off.
4) Turn ignition switch On.
5) ABS warning light is set in the diagnostic mode and blinks to identify trouble code.
6) After the start code (11) is shown, the diagnostic trouble codes (DTC) will be shown in order of
3) Connect diagnosis connector terminal 6 to diagnosis terminal.
CHECK
Forester
Base 2.5
ss02469

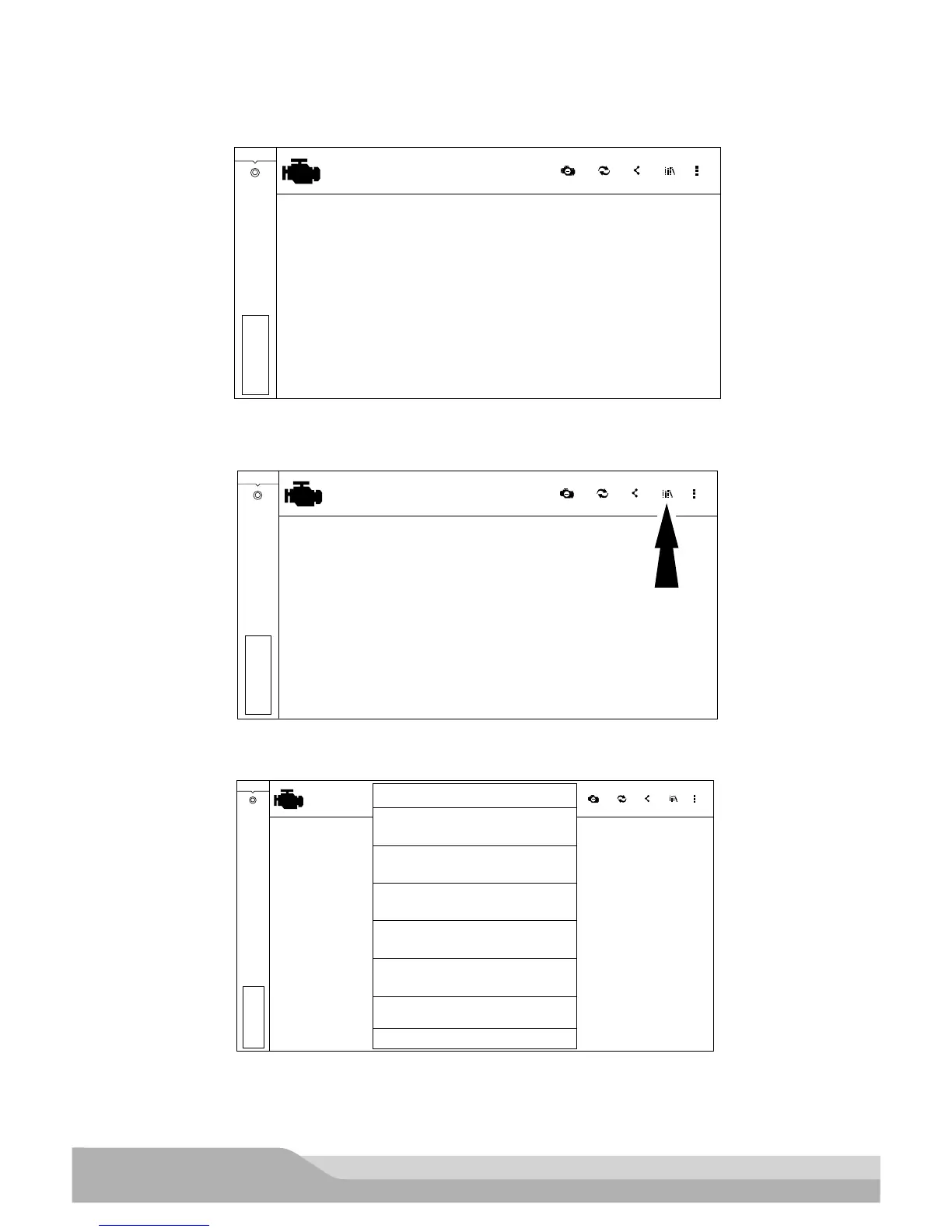

1. Follow the prompts on the screen for retreiving DTCs.
Diagnostic Trouble Codes
Current
Subrau
ABS
2002
1) Take out diagnosis connector from side of drive’s seat heater unit.
2) Turn ignition switch Off.
4) Turn ignition switch On.
5) ABS warning light is set in the diagnostic mode and blinks to identify trouble code.
6) After the start code (11) is shown, the diagnostic trouble codes (DTC) will be shown in order of
3) Connect diagnosis connector terminal 6 to diagnosis terminal.
CHECK
Forester
Base 2.5
ss02470
2. Select Diagnostic Trouble Codes button.
Diagnostic Trouble Codes
Current
Subrau
2002
1) Take out diagnosis connector from side of drive’s seat heater unit.
2) Turn ignition switch Off.
4) Turn ignition switch On.
5) ABS warning light is set in the diagnostic mode and blinks to identify trouble code.
6) After the start code (11) is shown, the diagnostic trouble codes (DTC) will be shown in order of the last information first.
These repeat for a maximum
7) NOTE: When there are no
8) When on-board diagnosis
stored in the EEPROM as a
(Stored codes will stay in me
n (up to a maximum of three) will be
e, the most recent three will be stored.
de (11) is shown.
3) Connect diagnosis connector terminal 6 to diagnosis terminal.
CHECK
Forester
Base 2.5
ABS
Diagnostic Trouble Codes
11 Start Code: Trouble Code Is Shown
After Start Code Only Start Code Is
Shown In Normal Condition
21
22
23
24
25
Close
Abnormal ABS Sensor (Open Circuit
Or Input Voltage Too High) - Front
Right ABS Sensor
Abnormal ABS Sensor (Open Circuit
Or Input Voltage Too High) - Front
Left ABS Sensor
Abnormal ABS Sensor (Open Circuit
Or Input Voltage Too High) - Rear
Right ABS Sensor
Abnormal ABS Sensor (Abnormal
ABS Sensor Signal) - Front Right ABS
Sensor
Abnormal ABS Sensor (Abnormal
ABS Sensor Signal) - Front Left ABS
Sensor
ss02471
3. Follow the prompts on the screen.
