214251 13 Revision A
3.4 Installing and Routing Hydraulic Hoses
Complete the following procedure to install and route the kit’s hydraulic hoses.

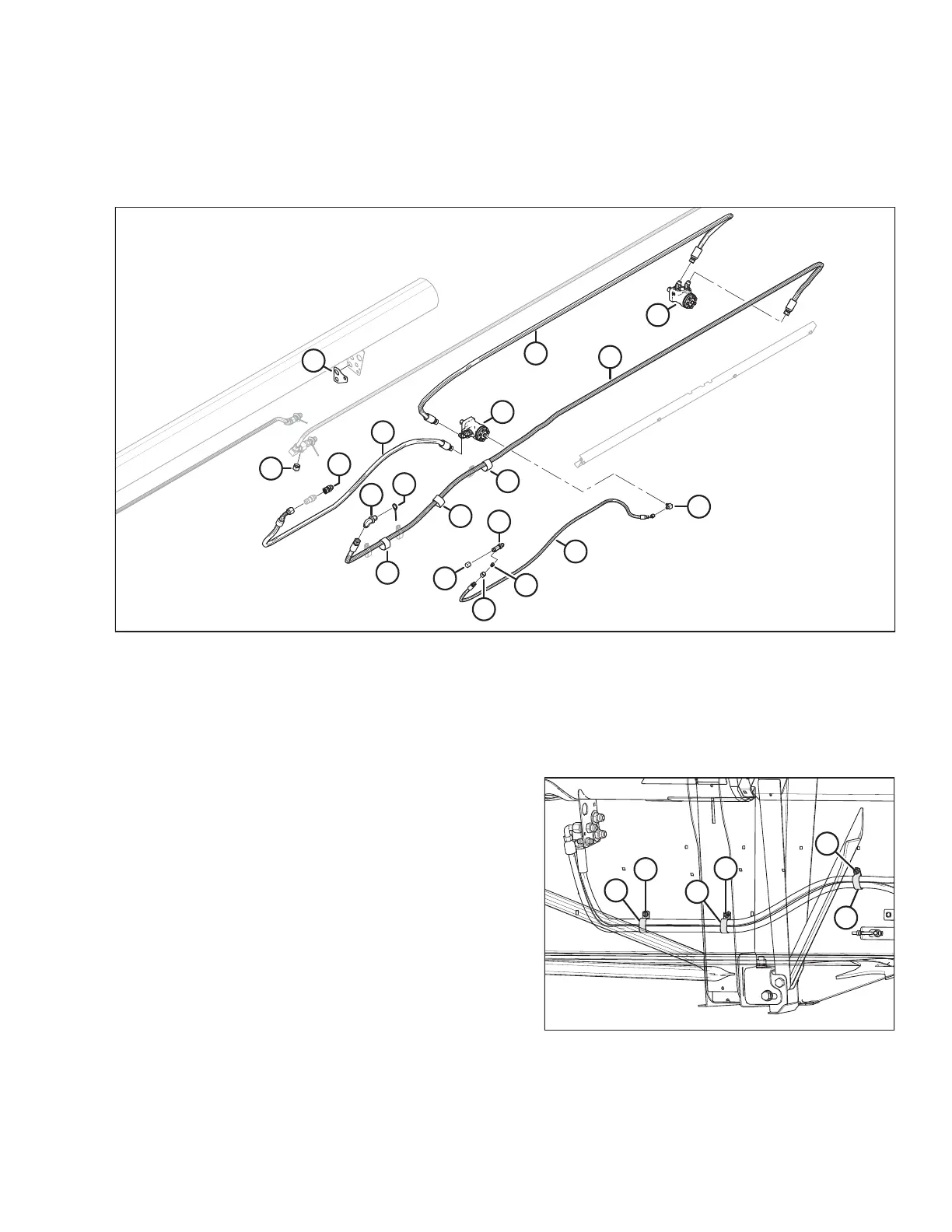

Figure 3.9: Hydraulic Hose Routing Overview
1 - Side Draper Return Hose
(MD #279285) to Port A on right motor
2- Side Draper Interconnect Hose
(MD #279286) to Port B on both motors
3 - Side Draper Pressure Hose
(MD #279284) to Port A on left motor
4 - Case Drain Hose (MD #245590)
to Port C on left motor
5 - Motor (MD #220936) 6 - Fitting – Tee (MD #252211) 7 - Fitting – Reducer (MD #30981) 8 - Nut –Tube (MD #21069)
9 - Fitting – 90° (MD #50104) 10 - Fitting – 90° (MD #252210) 11 - Fitting – Adapter (MD #252414) 12 - Cap (MD #30999)
13 - Cinch Strap (MD #135443) 14 - Fastener – Red (MD #40702) 15 - Cap (MD #108233) Single Knife Only 16 - Plate (NSS)
Figure 3.10: Hydraulic Hose Clamps
1. Remove the three hose clamps (A) and hardware (B)
securing hydraulic hoses to the header backsheet. Retain
hose clamps (A) and hardware (B) for later reinstallation.
NOTE:
Header supports made transparent in illustration for clarity.
INSTALLATION INSTRUCTIONS
