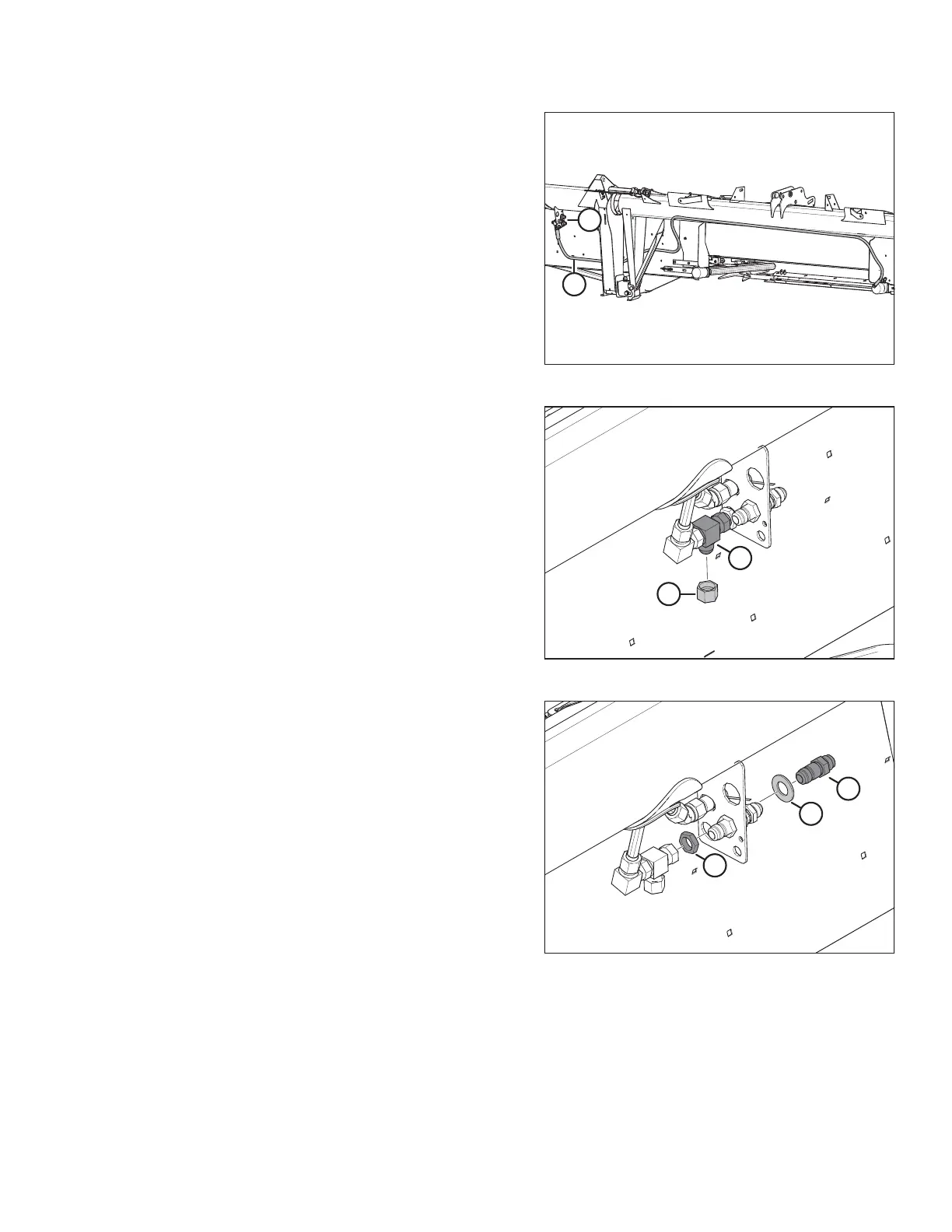

Figure 3.14: Side Draper Return Hose
5. Disconnect side draper return hose (A) from the coupler
holder (B) at header’s left side. Discard side draper
return hose.
NOTE:
Couplers removed from illustration for clarity.
Figure 3.15: Cap (MD #30999)
6. Cap tee fitting (A) using 3/4 in. flare cap (B) (MD #30999)
supplied in kit.
Figure 3.16: Union Fitting
7. Disconnect union fitting (A) and washer (B) from
coupler holder.
INSTALLATION INSTRUCTIONS
