MacDon FFT FlexDraper FD75 - Tee Fitting; 90° Fitting (MD #50104); Case Drain Hose (MD #245590)

214251 18 Revision A

$
$
%
&
'

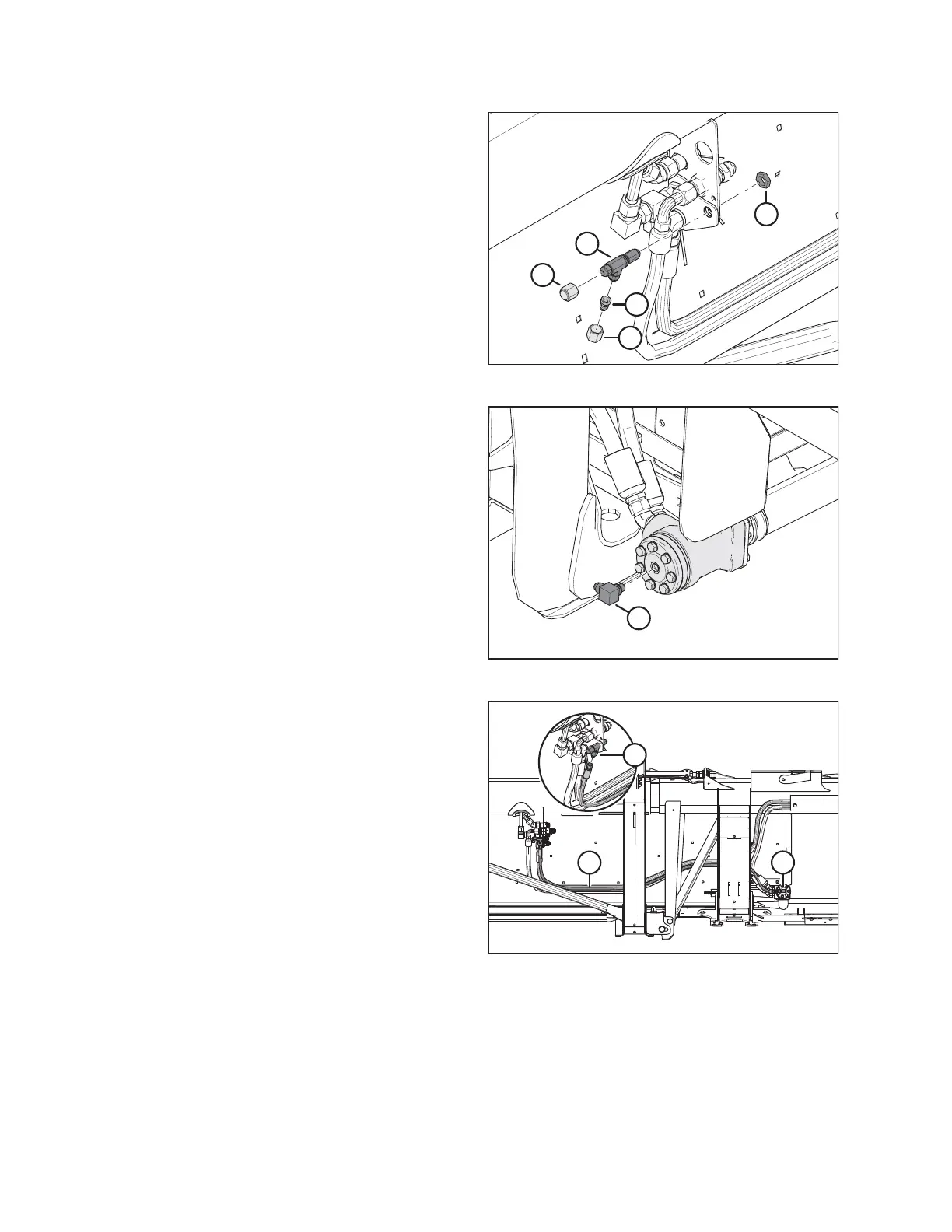

Figure 3.23: Tee Fitting
19. Install tee fitting (A) (MD #252211) on new plate at
header’s left side coupler holder. Tighten tee fitting.
20. Install reducer fitting (B) (MD #30981) with nut (C)
(MD #21069) on tee fitting (A). Tighten nut with reducer
fitting.
21. SINGLE KNIFE ONLY: Install 1/2 inch cap (D) (MD #108233)
onto tee fitting (A). Tighten 1/2 inch cap.
DOUBLE KNIFE : Install case drain hose from header.
Tighten case drain hose.

$
Figure 3.24: 90° Fitting (MD #50104)
22. Connect 90° fitting (A) (MD #50104) in port C on left side
draper motor. Tighten 90° fitting.

$
%
&
Figure 3.25: Case Drain Hose (MD #245590)
23. Connect case drain hose (A) (MD #245590) to reducer
fitting (B) on coupler holder.
24. Route case drain hose (A) (MD #245590) behind supports
and connect other end to 90° fitting (C) in port C on left
side draper motor.
INSTALLATION INSTRUCTIONS
