214251 17 Revision A

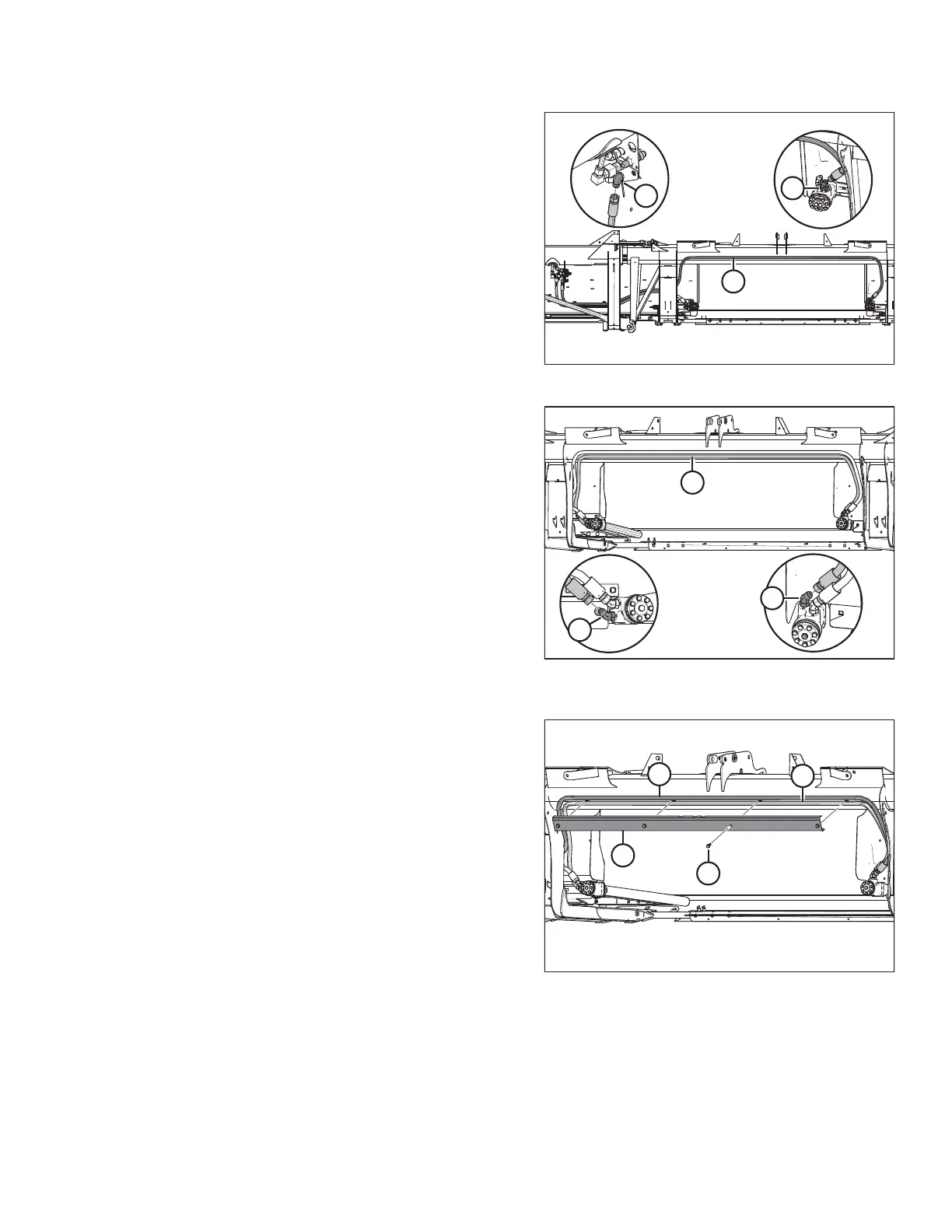

Figure 3.20: Side Draper Return Hose (MD #279285)
13. Connect side draper return hose (A) (MD #279285) to
elbow fitting (B) on coupler holder.
NOTE:
Draper pressure hose removed from illustration for clarity.
14. Route side draper return hose (A) (MD #279285) behind
supports and connect other end to 45° elbow fitting (C) set
in right side draper motor port A.
Figure 3.21: Side Draper Interconnect Hose
(MD #279286)
15. Connect side draper interconnect hose (A) (MD #279286) to
45° elbow fitting (B) in port B on the left side draper motor.
16. Route side draper interconnect hose across header opening
and connect other end to 45° elbow fitting (C) in port B on
right side draper motor.
Figure 3.22: Hose Holder Installation
17. Lift side draper return hose (A) and side draper
interconnect hose (B) to the top of the header opening and
set inside draper hose holder (C) retained from Step 3, page
14.
18. Install draper hose holder (C) at top of the header opening
using four hex head bolts (D) retained from Step 3, page 14.
INSTALLATION INSTRUCTIONS
