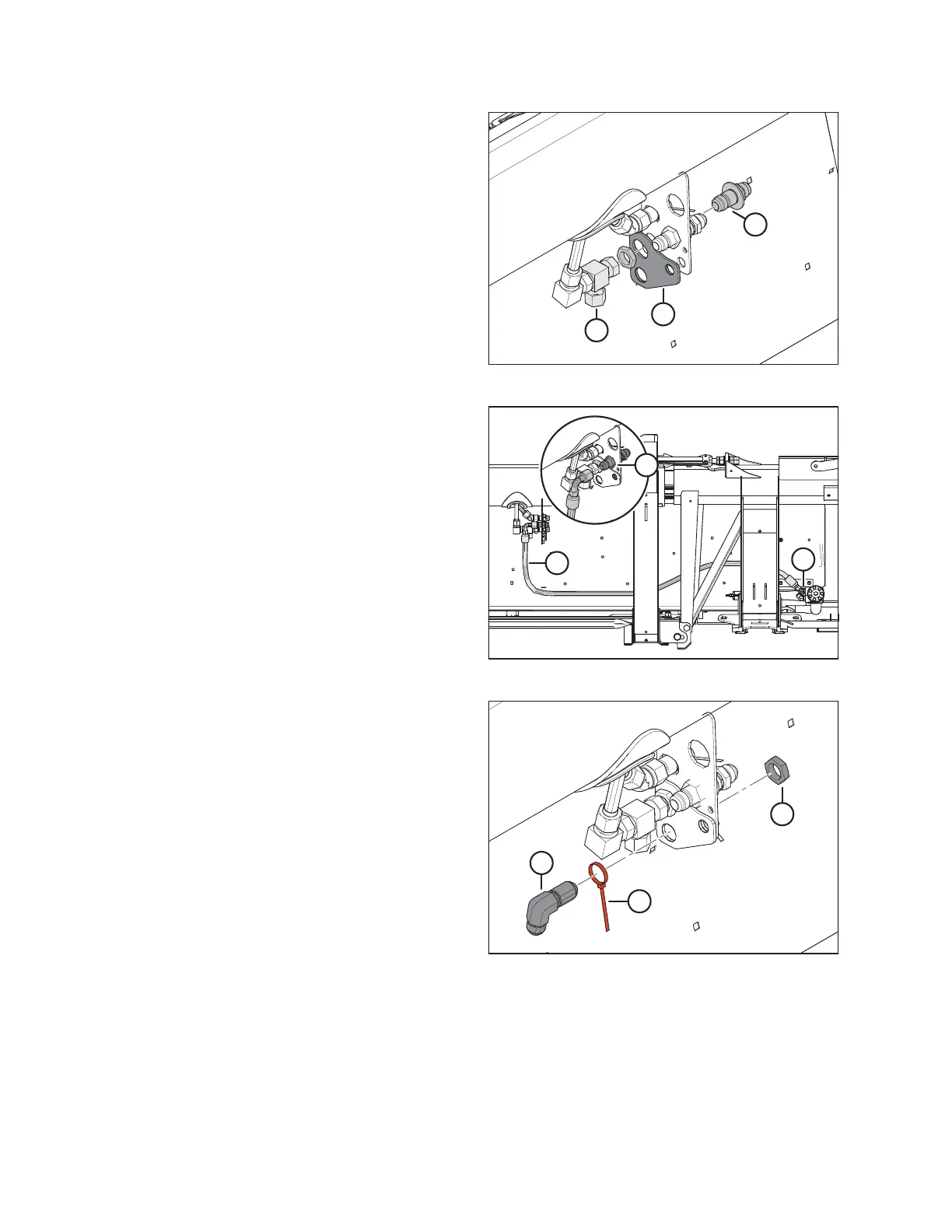

Figure 3.17: Plate (NSS)
8. Insert plate (A) (NSS) between union fitting (B) and tee
fitting (C). Tighten union fitting.
NOTE:
Union fitting holds plate in place.
9. Reconnect union fitting (B) to tee fitting (C).
$
&
%
Figure 3.18: Side Draper Pressure Hose (MD #279284)
10. Connect new side draper pressure hose (A) (MD #279284)
at fitting (B) on coupler holder at draper’s left side.
11. Route draper pressure hose (A) (MD #279284) behind
supports and connect other end to 45° elbow fitting (C) set
in left side draper motor port A.
$
$
%
Figure 3.19: Elbow Fitting (MD #252210) and Cable Tie
(MD #40702)
12. Install elbow fitting (A) (MD #252210) and red cable tie (B)
(MD #40702) through new plate. Tighten elbow fitting.
NOTE:
Draper pressure hose removed from illustration for clarity.
INSTALLATION INSTRUCTIONS
