MacDon FlexDraper FD235 - Steel Finger Kit MD #311055 Parts

215505 6 Revision A

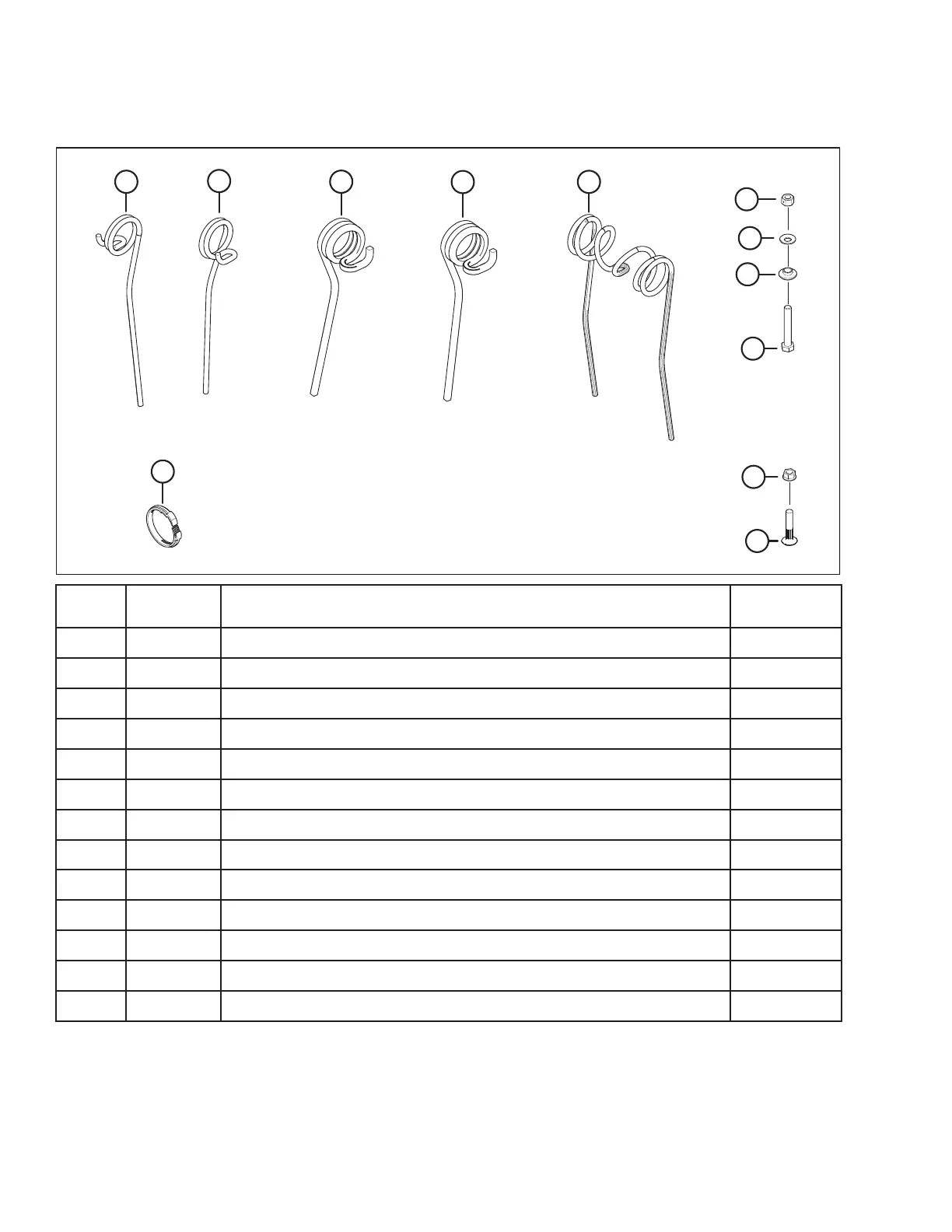

2.2 Steel Finger Kit MD #311055 (FD230, Double Reel, Six Bats)








$
%
&
'
(
Ref
Part
Number Description Quantity
1
311324 FINGER – LH SINGLE CONCENTRIC 12
2 311323 FINGER – RH SINGLE CONCENTRIC 6
3 311322 FINGER – TAIL END INBOARD 6
4
311321 FINGER – TAIL END OUTBOARD 6
5
137092 FINGER 135
6 220941
CLAMP – TINE TUBE BUSHING, CENTER RIB (BOX OF 5)
8
7
273052 RETAINER – END FINGER 12
A
108172 BOLT – HEX HD M10 X 1.5 X 65-8.8-AA1J 12
B
184584 WASHER – CON SPRING M10 STL SAE 12
C 135800 NUT – HEX CTR LOC SPCL M10 X 1.5-9-AA1J 12
D
137118
BOLT – BTN HD RIB NK 3/8 NC
153
E
30228
NUT – FLG DT SM FACE 3/8-16 UNC-GR5-AA1J
153
PARTS LIST
