215505 25 Revision A
Chapter 5: Installation Instructions
To install the kits, follow all procedures in the order provided.
5.1 Installing Bushings and Steel Fingers to Reels

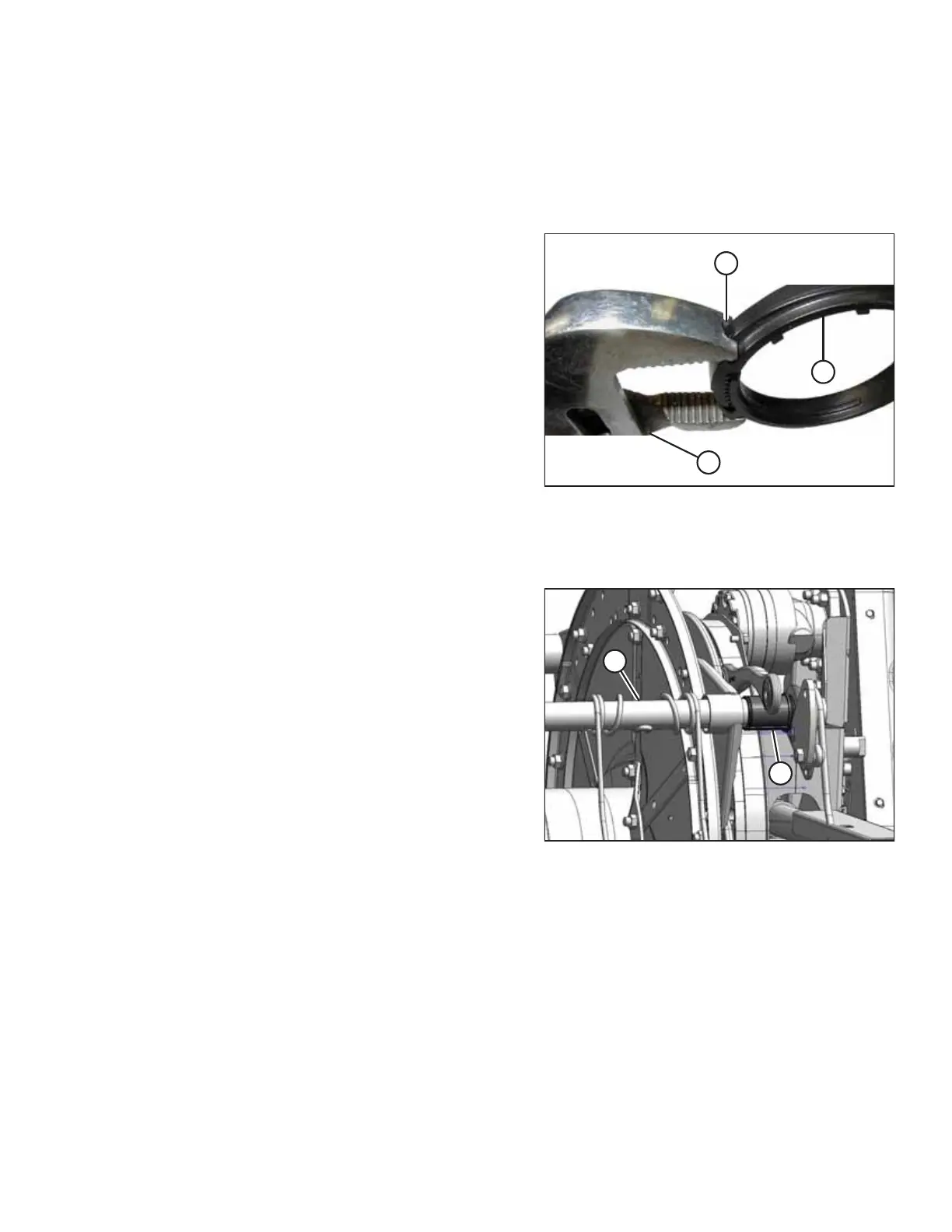

Figure 5.1: Modified Channel Lock Pliers
Use a pair of modified channel lock pliers (A) to install bushing
clamps (C). Secure pliers in a vise and grind a notch (B) into the
end of each arm to fit the clamp as shown.
1. Support the tine tube at all times to prevent damage to the tube or other components.
Cam end bushings
Figure 5.2: Cam End
2. Position bushing halves (B) on tine tube (A) with the
flangeless end adjacent to the tine tube arm, and position
the lug in each bushing half into the hole in the tine tube.
3. Slide tine tube (A) towards the tail end of the reel to insert
bushing (B) into the tine tube arm. If the tine tube supports
are installed, ensure the bushings at those locations slide
into the support.
