MacDon FlexDraper FD235 - Steel Finger Kit MD #311068 Parts

215505 7 Revision A

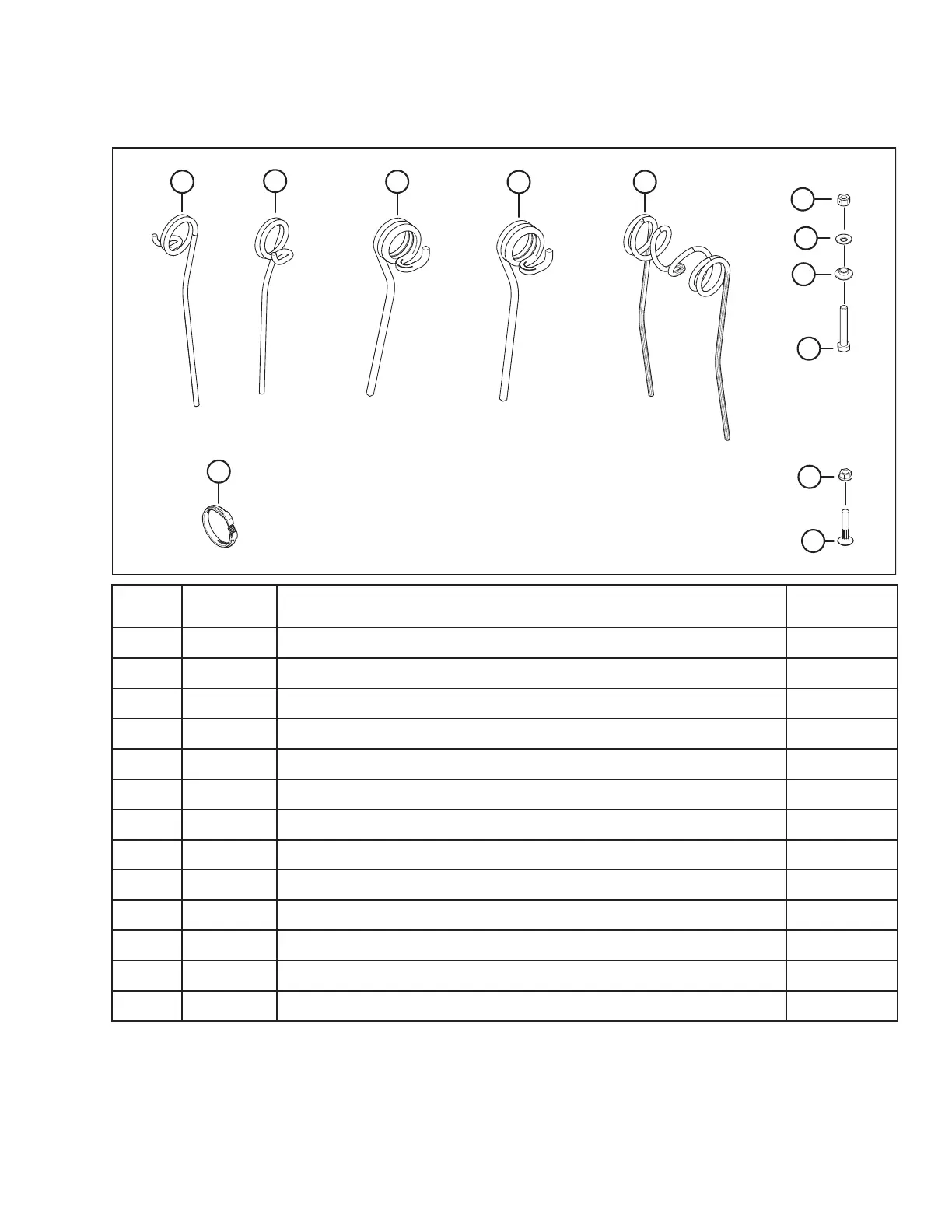

2.3 Steel Finger Kit MD #311068 (FD235, Double Reel, Five Bats)








$
%
&
'
(
Ref
Part
Number Description Quantity
1
311324 FINGER – LH SINGLE CONCENTRIC 30
2 311323 FINGER – RH SINGLE CONCENTRIC 18
3 311322 FINGER – TAIL END INBOARD
5
4
311321 FINGER – TAIL END OUTBOARD
5
5
137092 FINGER 143
6 220941
CLAMP – TINE TUBE BUSHING, CENTER RIB (BOX OF 5)
8
7
273052 RETAINER – END FINGER 10
A
108172 BOLT – HEX HD M10 X 1.5 X 65-8.8-AA1J 10
B
184584 WASHER – CON SPRING M10 STL SAE 10
C 135800 NUT – HEX CTR LOC SPCL M10 X 1.5-9-AA1J 10
D
137118
BOLT – BTN HD RIB NK 3/8 NC
191
E
30228
NUT – FLG DT SM FACE 3/8-16 UNC-GR5-AA1J
191
PARTS LIST
