MacDon FlexDraper FD235 - Install Reel Endshields

215505 27 Revision A

$
%
&
'

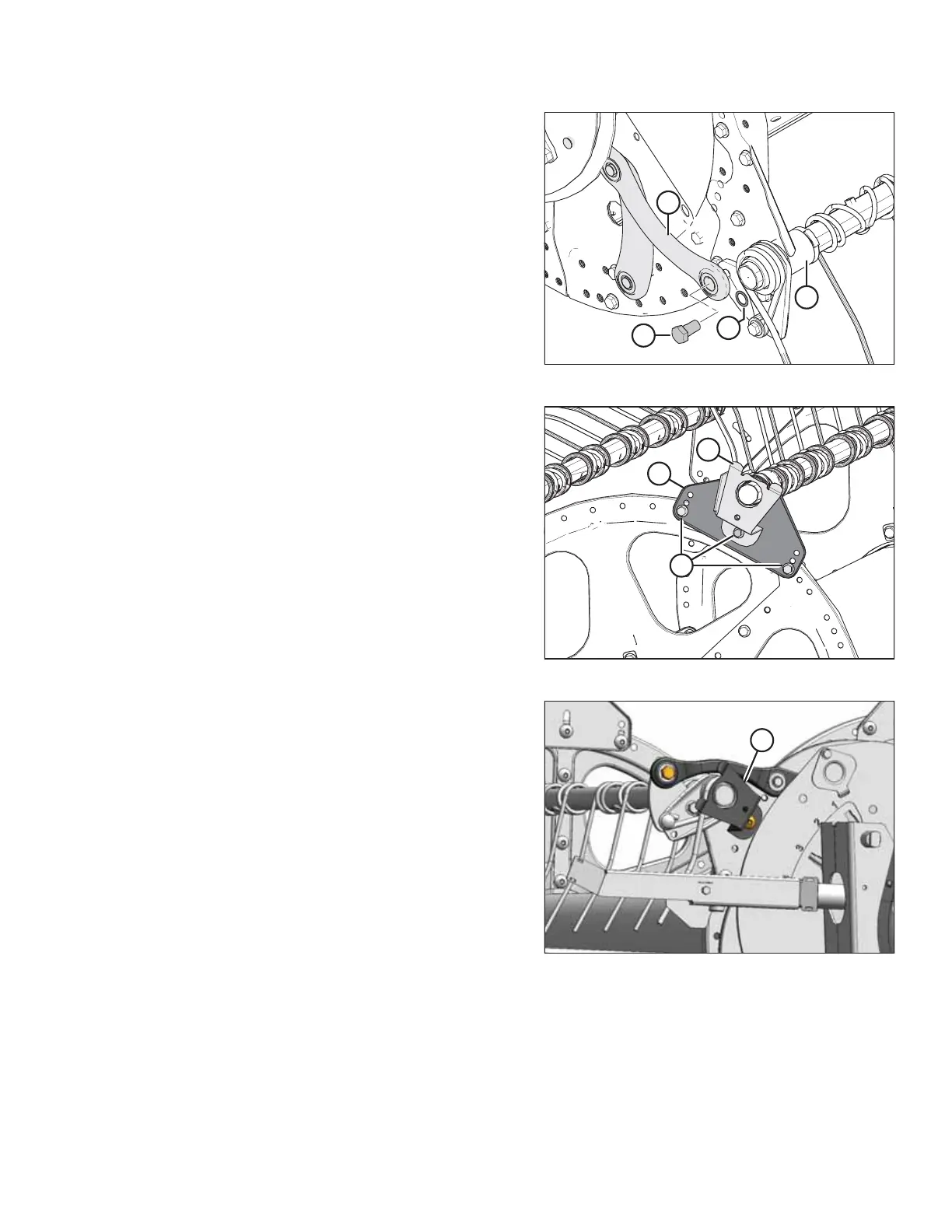

Figure 5.6: Cam End
10. Line up tine tube (A) with the cam arm (B) and install
bolt (C) and washer (D). Torque bolt to 165 Nm (120 lbf·ft).
NOTE:
Make sure washer is placed between tine tube and cam
arm.

$
%
&
Figure 5.7: Tail End
11. Install bolts (A) securing tine tube arm (B) to the
center disc.
12. Install tine tube arm (B) and endshield support (C) to the
tail end of the reel at the applicable tine tube location and
secure with bolts (A).
NOTE:
There are no endshields on the center discs.

$
Figure 5.8: Cam End
13. Install endshield support (A) at the applicable tine tube
location at the cam end.
INSTALLATION INSTRUCTIONS
