1000 Hour or 3 Year Service Interval
Draper Clinic Handout
10

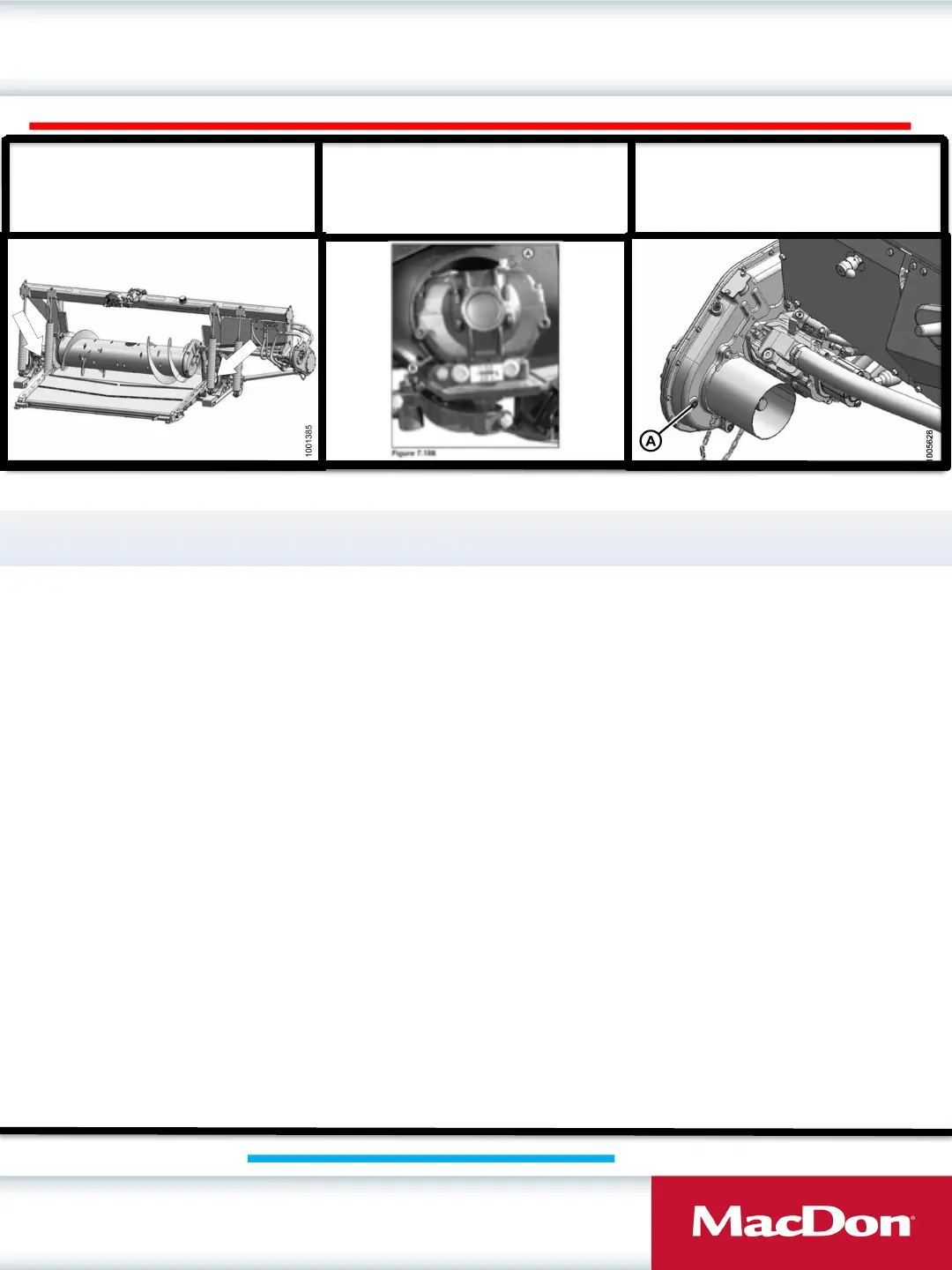

Change oil in header drive gearbox
using 2.6 quarts (2.5 liters) or 85W-
140 (API service class GL-5) Oil.
Find your operators manual at: www.macdon.com/support/operators-manuals
Change oil in knife drive gearbox(s)
using 2.3 quarts (2.2 liters) of 85W-
140 (API service class GL-5) oil.
Change hydraulic oil in combine
adapter frame using 16 US gallons
(60 liters) of 15W – 40 engine oil.
CAUTION: Never use gasoline, naphtha or any volatile material for cleaning purposes. These materials may be toxic
and/or flammable.
CAUTION: Cover cutterbar and knife guards to prevent injury from accidental contact.
1. Clean the header thoroughly.
2. Store the machine in a dry, protected place if possible. If stored outside, always cover with waterproof canvas or other protective material.
3. If machine is stored outside, remove drapers and store in a dark, dry place.
NOTE: If drapers are not removed, store header with cutterbar lowered so water/snow will not accumulate on drapers. This
accumulation of weight puts excessive stress on drapers and header.
4. Lower header onto blocks to keep cutterbar off the ground.
5. Lower reel completely. If stored outside, tie reel to frame to prevent rotation caused by wind.
6. Repaint all worn or chipped painted surfaces to prevent rust.
7. Loosen drive belts.
8. Lubricate the header thoroughly, leaving excess grease on fittings to keep moisture out of bearings. Apply grease to exposed threads,
cylinder rods, and sliding surfaces of components. Oil knife components to prevent rust.
9. Check for worn or broken components and repair or order replacement from your MacDon Dealer. Attention to these items right away will
save time and effort at the beginning of next season.
10. Replace or tighten any missing or loose hardware.
End of Season Service
Please Refer to Maintenance and Servicing Section of Operators Manual for Model Specific Maintenance
