Straight Cut Canola Optimization
Draper Clinic Handout
21

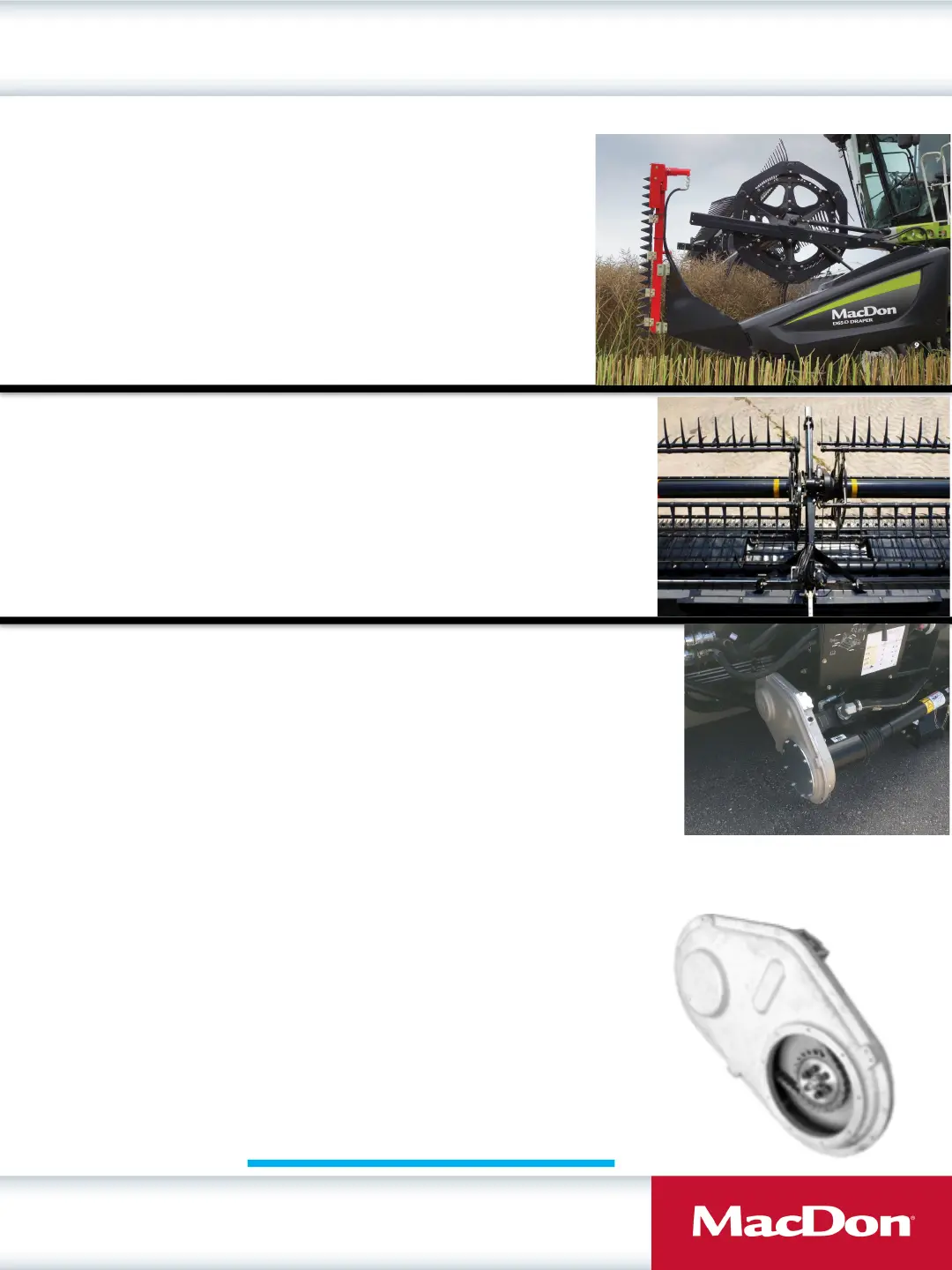

Move Reel Cylinder Locations to Alternate “Aft” Position
This procedure is outlined in the Operators Manuals. For FD75/D65
this will require kit number B5605 short reel brace kit (below)
• Allows the reel to be positioned 220mm rearward (AFT),
enabling the reel to sweep Canola into the upper cross
auger. This reduces seed loss as the effective “Reel
Sweep” and crop interactive/contact is behind the cutterbar,
mini mizing losses outside the header.
• Position may be suitable for other crops except for severe
lodged crop situations where significant pick up action is
required.
Optional higher speed sprockets for more capacity, available
through MD Service Parts
2011 and Prior (Plastic Gearbox Cover)
• Lexion-Agco
• Standard OEM- 18 tooth #151684
• Recommended- 20 tooth #133425
• CHN-Deere
• Standard OEM- 18 tooth #151686
• Recommended- 26 tooth #133424
2012 and Newer (Cast Aluminum Gearbox Cover)
Lexion-Agco
• Standard OEM- 18 tooth #187497
• Recommended- 20 Tooth #187523
CNH-Deere
• Standard OEM- 24 tooth #187496
• Recommended- 26 Tooth #187525
When inst al li ng a hi gher speed spr ocket , the factory dri ve chai n wi ll al so
need to be upgraded to a longer 76 pitch endless chain. This longer chain is
currently unavailable through MacDon parts but can be sourced elsewhere.
Find your operators manual at: www.macdon.com/support/operators-manuals
2012 and newer
shown
Shortened Center Reel Brace Kit
• D60 and FD70
• Not required
• D65 and FD75
• Kit number B5605
• Allows reel position to be moved further rearward to alternate
aft position without center reel arm brace interference.
To Next Page
