Lubrication
Draper Clinic Handout
4
Find your operators manual at: www.macdon.com/support/operators-manuals
Lubricant Specification
Lubricant Specification Description Use Capacities
High Temperature Extreme Pressure (EP2) Performance With 1%
Max. Molybdenum Disulphide (NLGI Grade 2) Lithium Base
As Required Unless
Otherwise Specified
-
High Temperature Extreme Pressure (EP) Performance with 10%
Max Molybdenum Disulphide (NLGI Grade 2) Lithium Base
Driveline Slip-Joints
-
Knife Drive Box 2.3 quarts (2.2 liters)
Main Drive Gearbox 5 pints (2.5 liters)
Hydraulic
Oil
SAE 15W-40
Compliant With SAE Specs For API Class SJ And CH-4 Engine Oil
Header Drive Systems
Reservoir
16 US gallons (60
liters)
Grease
SAE Multi-Purpose
Gear
Lubricant
SAE 85W-140
API Service Class GL-5

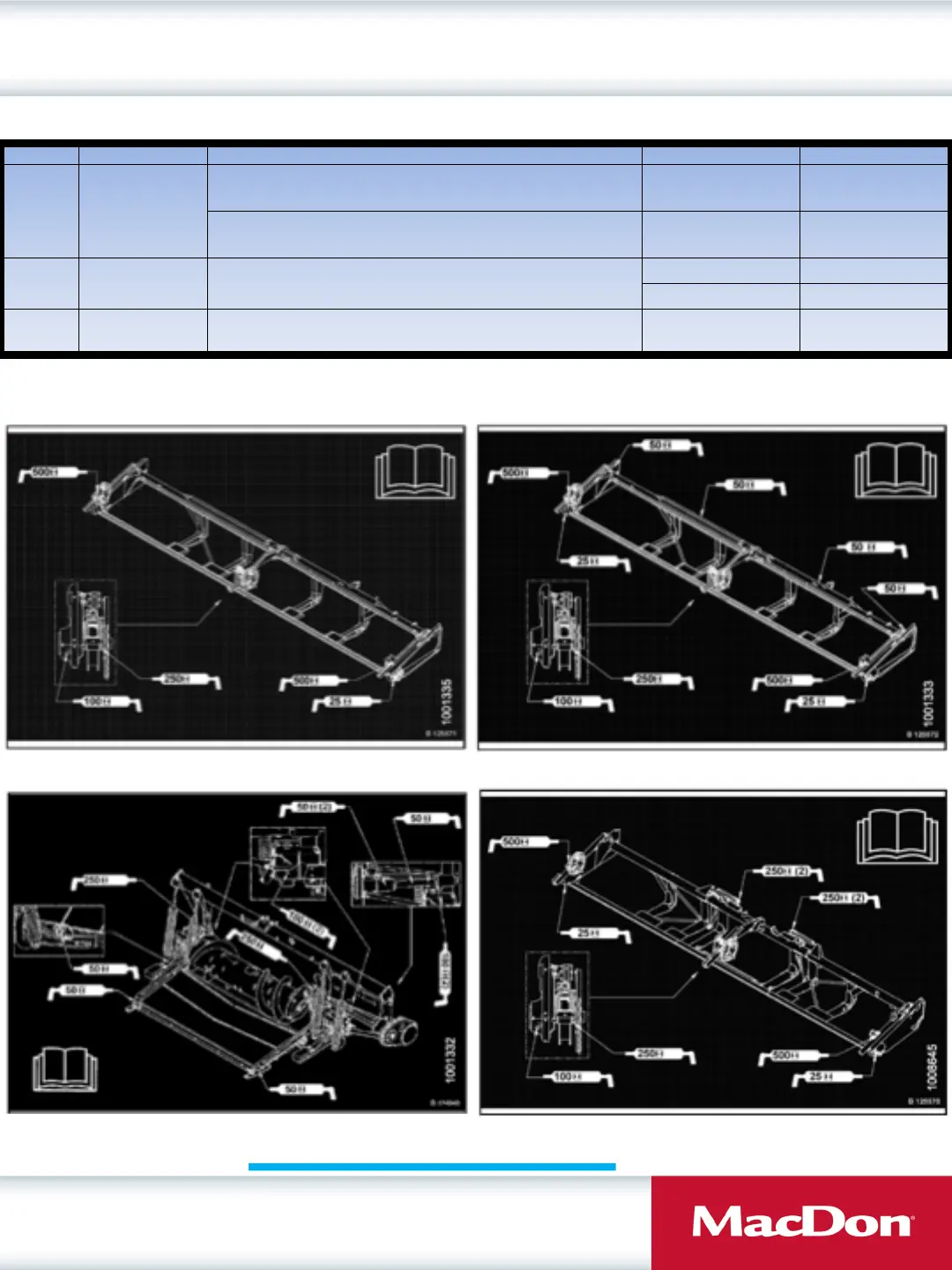

Greasing – Single Knife vs Double Knife & Flex Header vs Rigid Header
Figure 7.23 (above) – Single Knife or Untimed Double Knife Figure 7.24 (above) – Timed Double Knife Header
Figure 7.25 (above) – Adapter
Figure 7.28 (above) – FD75 Flex Header
