MAINTENANCE/SERVICE
Form # 169053 87 Model Year - 2010

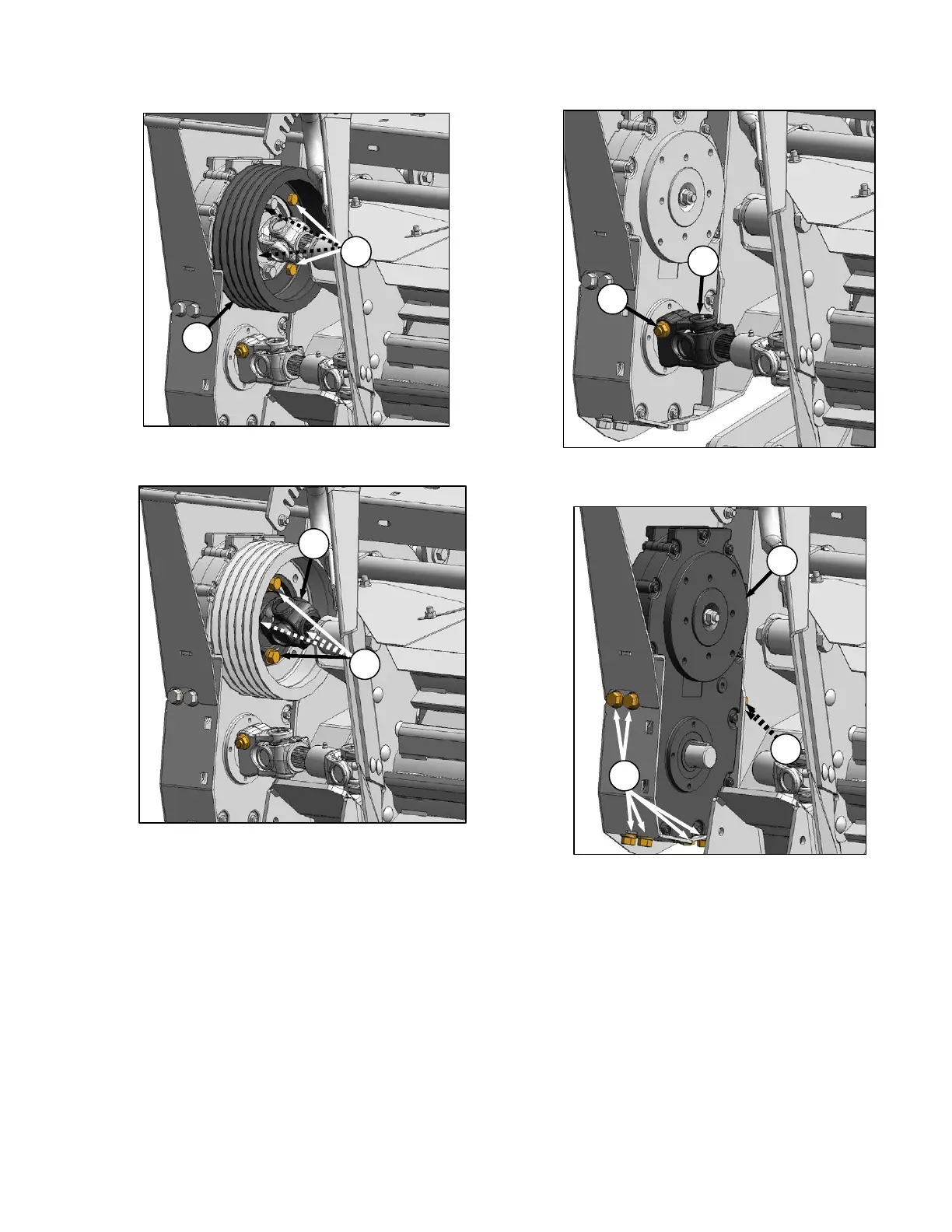

f. Remove bolts (M). Slide pulley (L) off gearbox
onto driveline.
g. Remove bolts (N) and swivel driveline so that
pulley and driveshaft (O) can be slipped off
driveline.
h. Loosen bolt (P) on lower U-joint and slide yoke
(Q) off gearbox.
i. Remove eight bolts (S) holding gearbox (R) to
frame.
j. Lift gearbox out of drive compartment.
L
M
O
N
Q
P
S
R
S
To Next Page
