MAINTENANCE/SERVICE
Form # 169053 89 Model Year - 2010

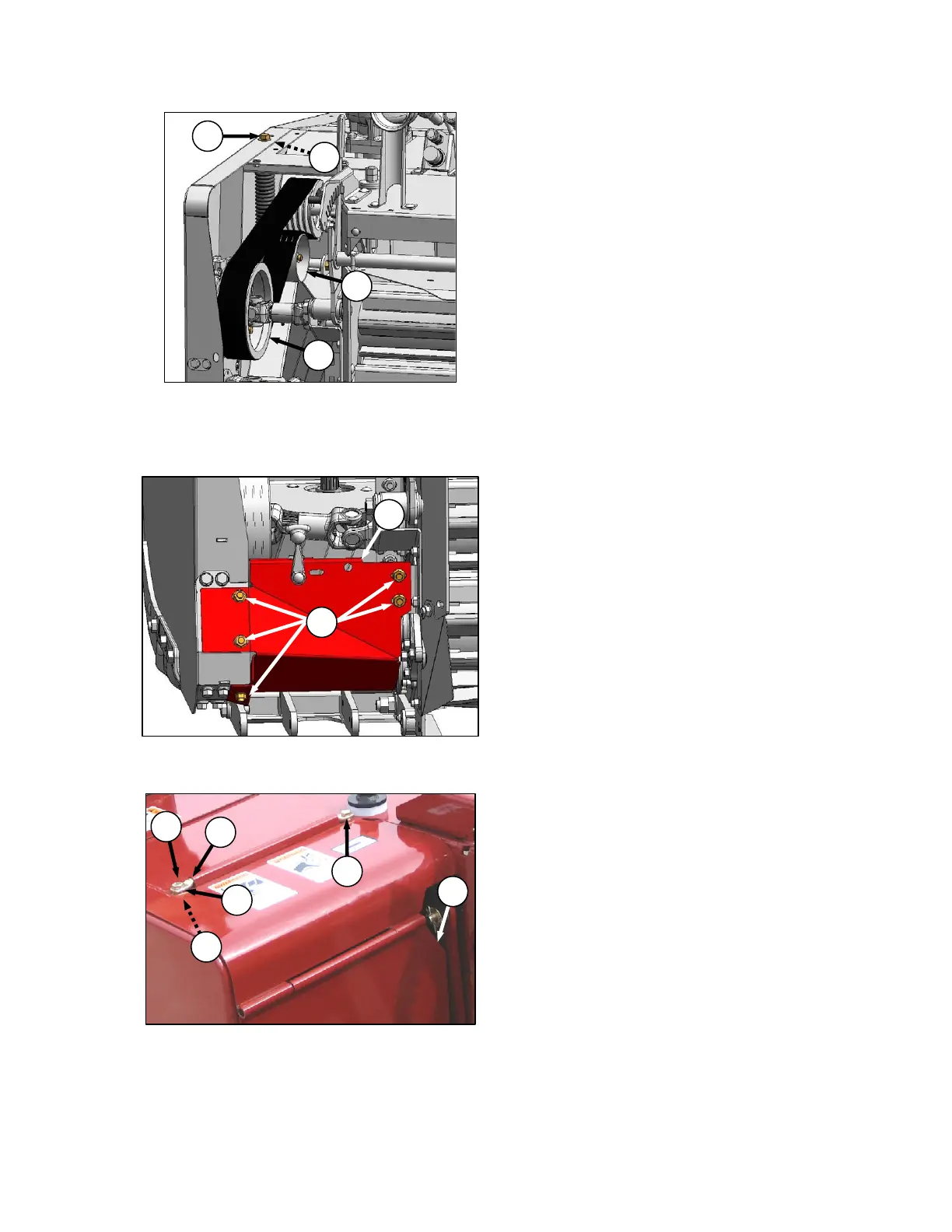

f. Re-install belt on pulley (L) and tighten idler (U)
with adjuster bolt (K). See 7.9.5.1 Tension
Adjustment – Conditioner Drive Belt. Tighten
jam-nut (H).
g. Re-install panel (G) with five bolts and nuts (F).
Install bolts from inside.
h. Position LH drive shield on header and locate on
existing pin (S).
i. Position pin (E) in shield and attach to frame
with two washers (D), bolt (C), and nut (B).
Washers are under the pin. Tighten nut (B).
j. Adjust roll timing. Refer to Section 6.13.4.2 Roll
Timing.
k. Close drive shield (A).
H
K
L
U
G
F
E
C
D
A
B
S
To Next Page
