4.7 Height adjustment of the swiveling guide fence
The height of the swiveling guide fence and thus the drilling distance to the support surface can be adjusted
continuously in a range between 6.5 and 60 mm [0.26 and 2.36 in] to the drill axis.
Use the following procedure to adjust the height
of the swiveling guide fence:
1. Loosen the wing screw (3) for the height
adjustment.
2. Using the setting wheel (7), set the required
height of the swiveling guide fence (1).
➢ The height is indicated by the red pointer
on the scale (2).
3. Tighten the wing screw (3).
✓ Height of the swiveling guide fence
adjusted.

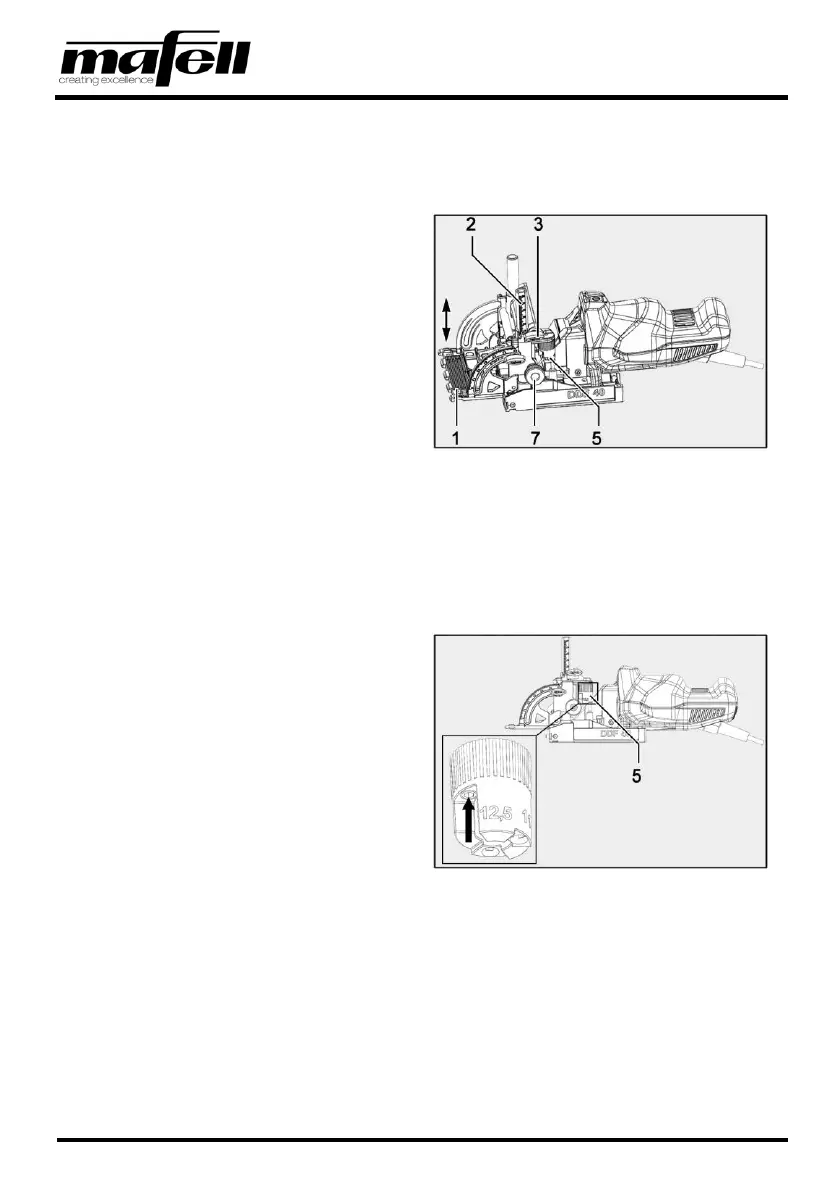

Fig. 12: Adjusting the height of the swiveling guide fence
Using the rotating turret stop (5), you can select one of five fixed preselected distances:
In addition, a freely adjustable distance can be
selected. To do this, use the 2.5-mm Allen key
provided to turn the screw in the turret stop.
Fig. 13: Adjusting the distance at the turret stop
