2.3 Adjustment elements

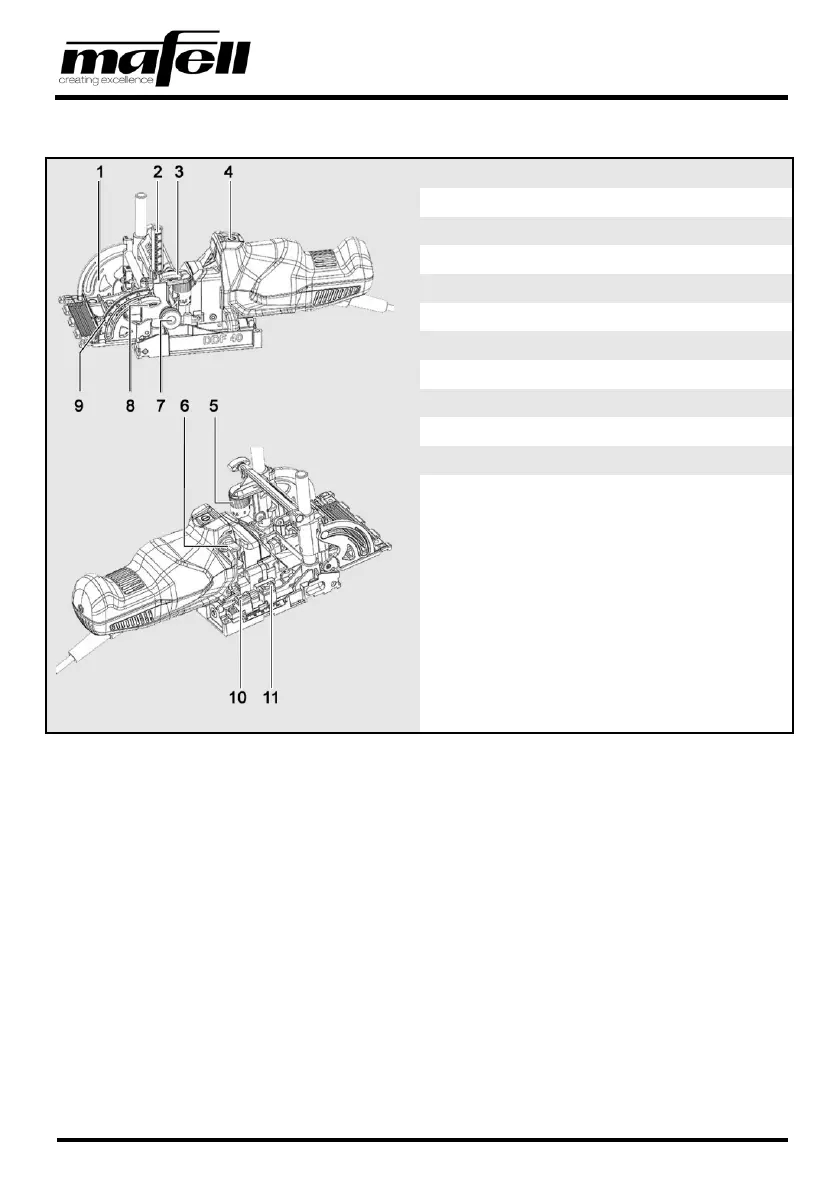

Fig. 2: Left and right adjustment elements
Adjustment elements on the machine
1
Swiveling guide fence
2
Height adjustment scale
3
Height adjustment wing screw
4
Power switch
5
Turret stop
6
Rotary button
7
Setting wheel
8
Swivel setting wing screw
9
Swivel setting scale
10
Depth stop 1
11
Depth stop 2
