Replace the ejector rod module

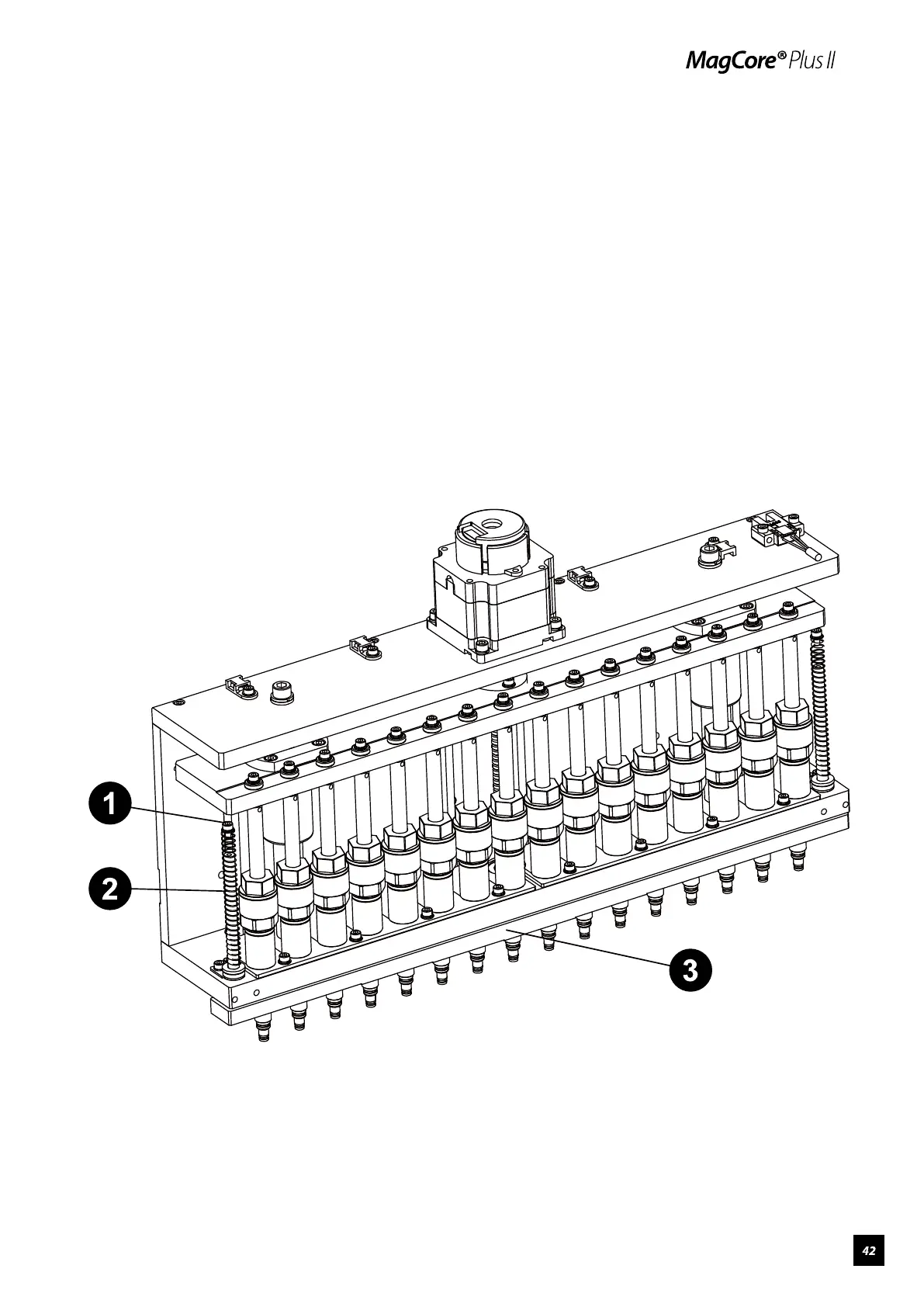

1. Remove the screws on top of the ejector rods on both sides.
2. Remove the springs.
3. Take out the ejector rod downward. Replace with a new ejector rod and
screw back the top screw.
