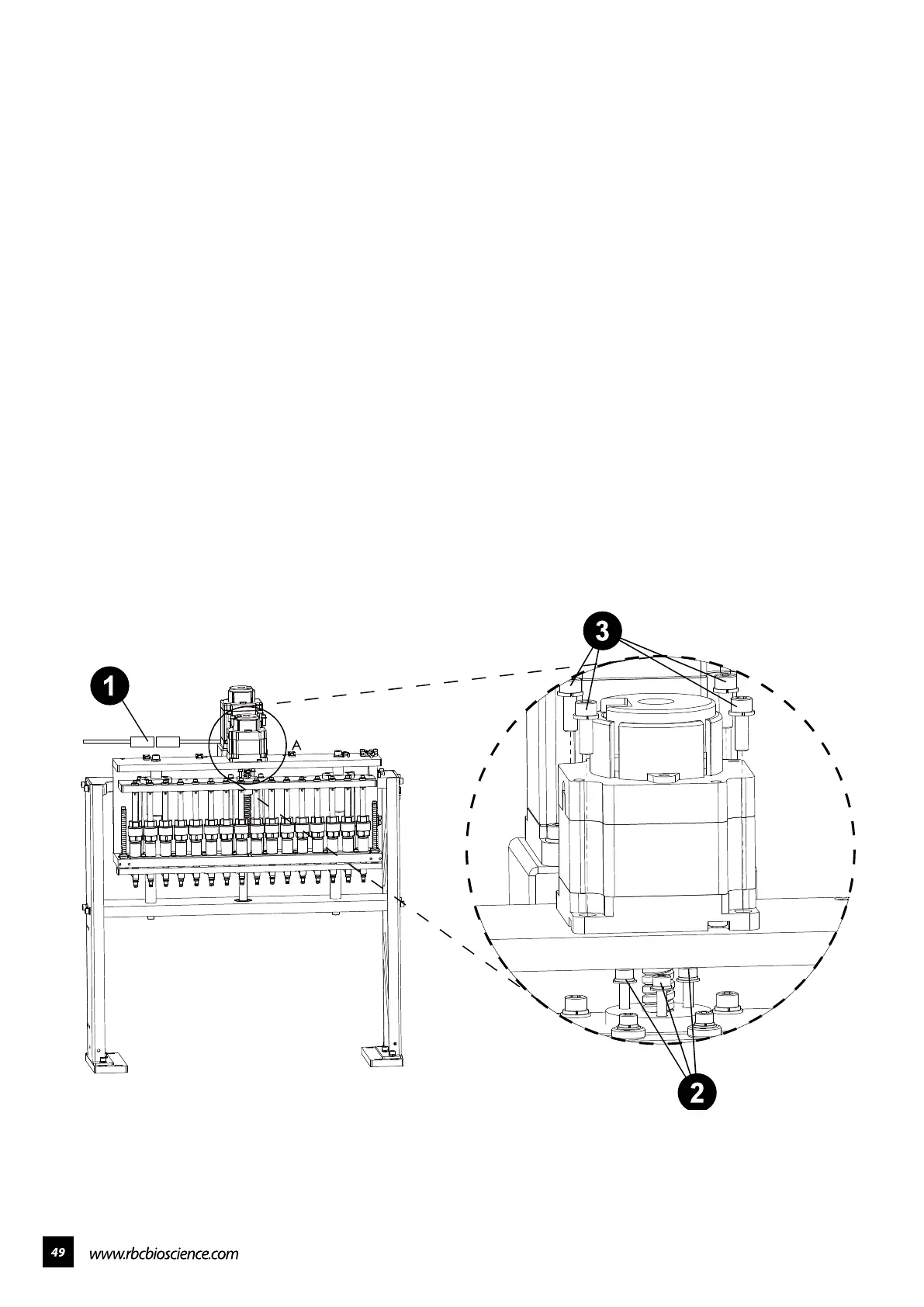

Replace the V-axis motor
1. Unplug the connectors of the V-axis.
2. Remove the three screws of the axle sleeve.
3. Remove the four screws of the motor.
