Replace the X-axis motor belt

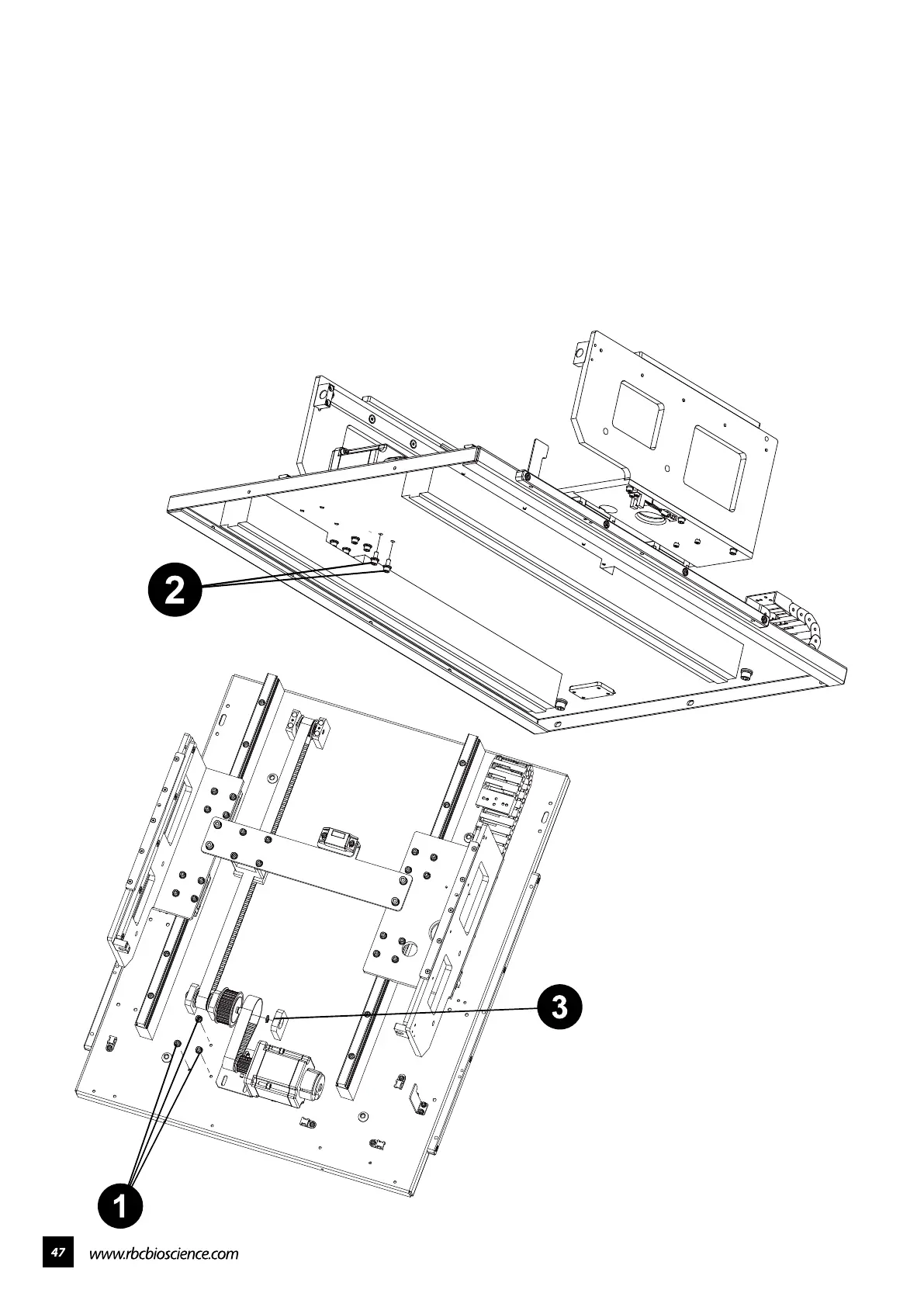

1. Remove the three screws of the metal sheet.
2. Remove the two screws of the metal plate from under the instrument.
3. Remove the metal plate, then replace with a new motor belt.
