Replace touch panel
1. Remove the instrument case.

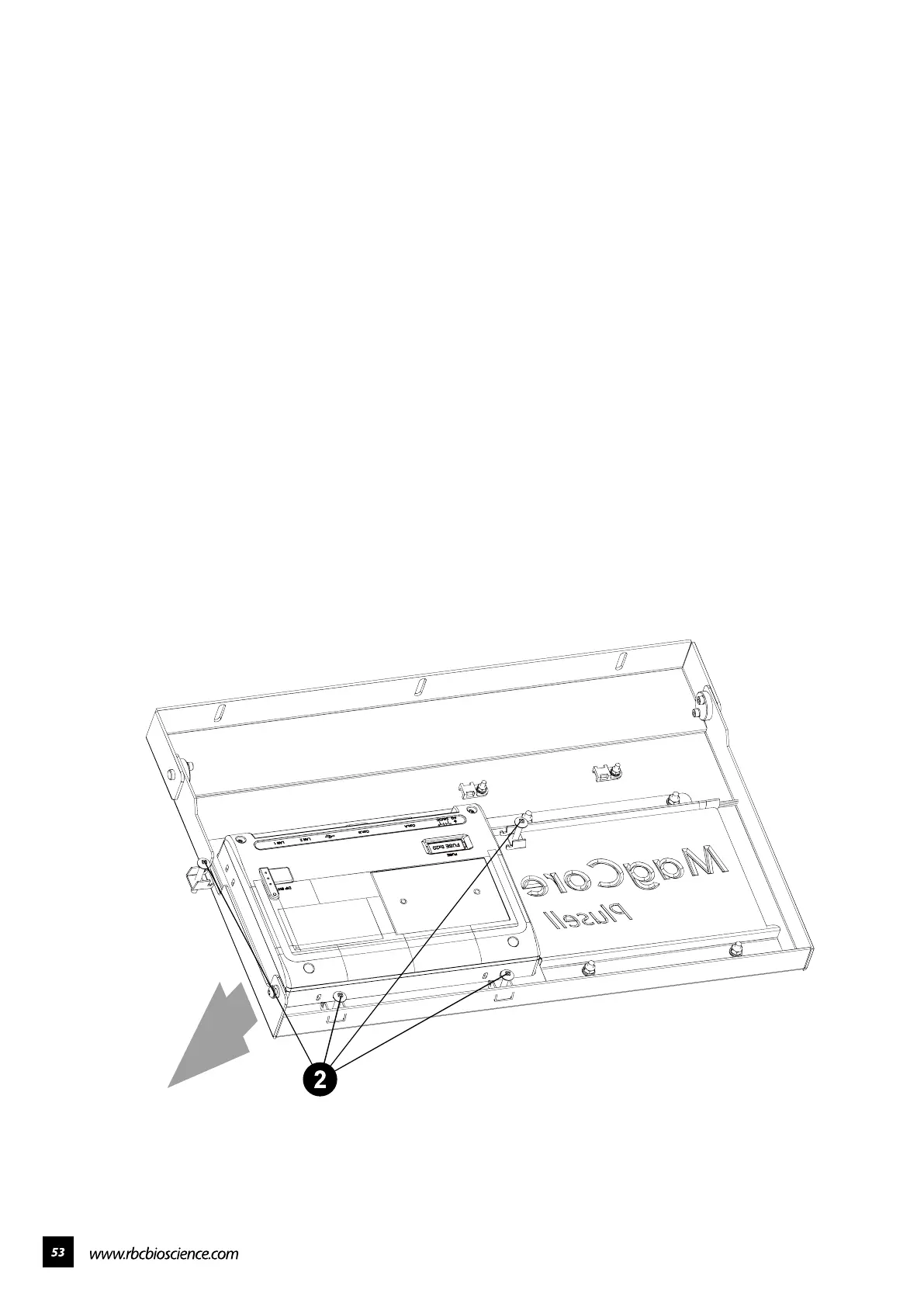

2. Loosen the four screws and remove the fixed blocks.
3. Remove the HMI.
