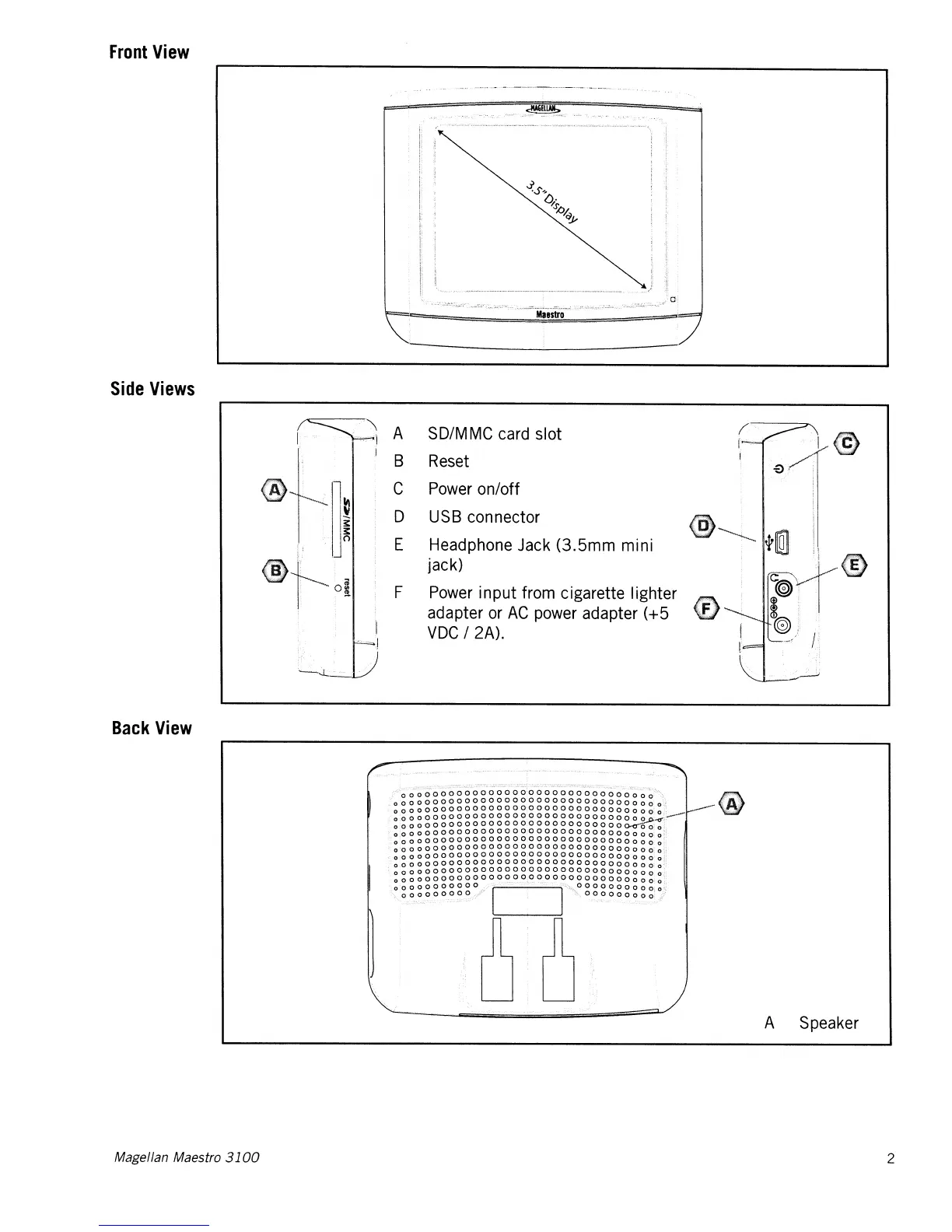

Magellan MAESTRO 3100 - Device Views and Ports; Front, Side, and Back Views

Front View
Side Views
Back View
A
B
C
D
E
F
SD/MMC card slot
Reset
Power on/off
USB connector
Headphone Jack (3.5mm mini
jack)
:~:~~~ n~u1t~~w~i~:~~t~~el~~~~r 0
VDC / 2A).
Magellan Maestro 3100
