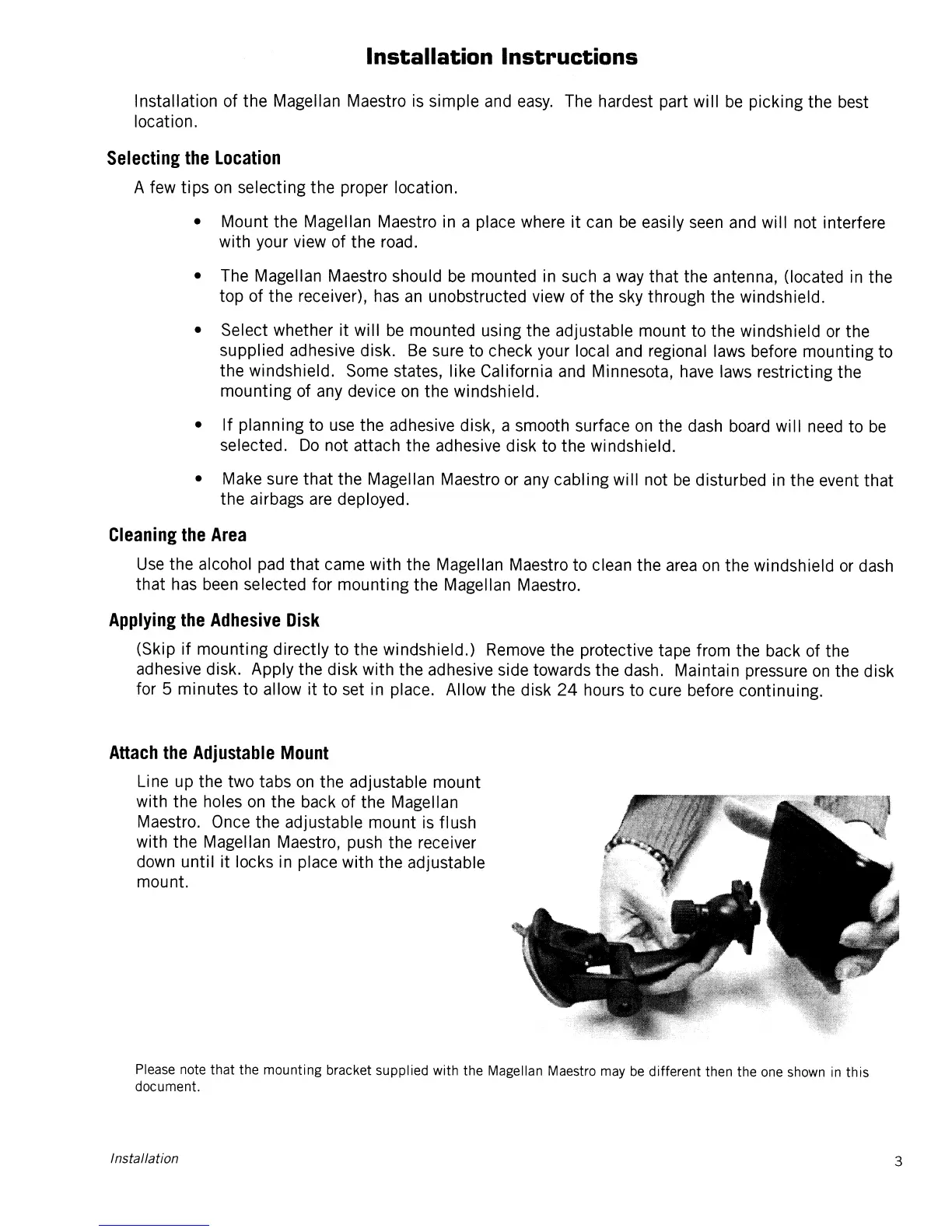

Installation Instructions
Installation of the Magellan Maestro is simple and
easy.
The hardest part will
be
picking the best
location.
Selecting
the
location
A few
tips
on
selecting the proper location.
• Mount the Magellan Maestro in a place where
it
can
be
easily seen and will not interfere
with your view of the road.
• The Magellan Maestro should
be
mounted in such a way
that
the antenna, (located in the
top of the receiver), has
an
unobstructed view of the sky through the windshield.
• Select whether
it
will
be
mounted using the adjustable mount to the windshield or the
supplied adhesive disk.
Be
sure
to
check your local and regional laws before mounting to
the windshield. Some states, like California and Minnesota, have laws restricting the
mounting
of any device
on
the
windshield.
•
If
planning to use the adhesive disk, a smooth surface
on
the dash board will need
to
be
selected.
Do
not attach the adhesive disk to the windshield.
• Make sure
that
the Magellan Maestro or any cabling will not
be
disturbed in the event
that
the airbags are deployed.
Cleaning
the
Area
Use
the alcohol pad
that
came with the Magellan Maestro to clean the area
on
the windshield or dash
that
has been selected for
mounting
the
Magellan Maestro.
Applying
the
Adhesive
Disk
(Skip
if
mounting
directly to the windshield.) Remove the protective tape from the back of the
adhesive disk. Apply the disk
with
the adhesive side towards the dash. Maintain pressure
on
the disk
for 5 minutes
to
allow
it
to
set in place. Allow the disk
24
hours to cure before continuing.
Attach
the
Adjustable
Mount
Line up the two tabs
on
the adjustable
mount
with the holes
on
the back of the Magellan
Maestro. Once the adjustable
mount
is flush
with the Magellan Maestro, push the receiver
down
until
it
locks in place with the adjustable
mount.
Please note
that
the mounting bracket supplied with the Magellan Maestro may
be
different then the one shown in
this
document.
Installation
3
