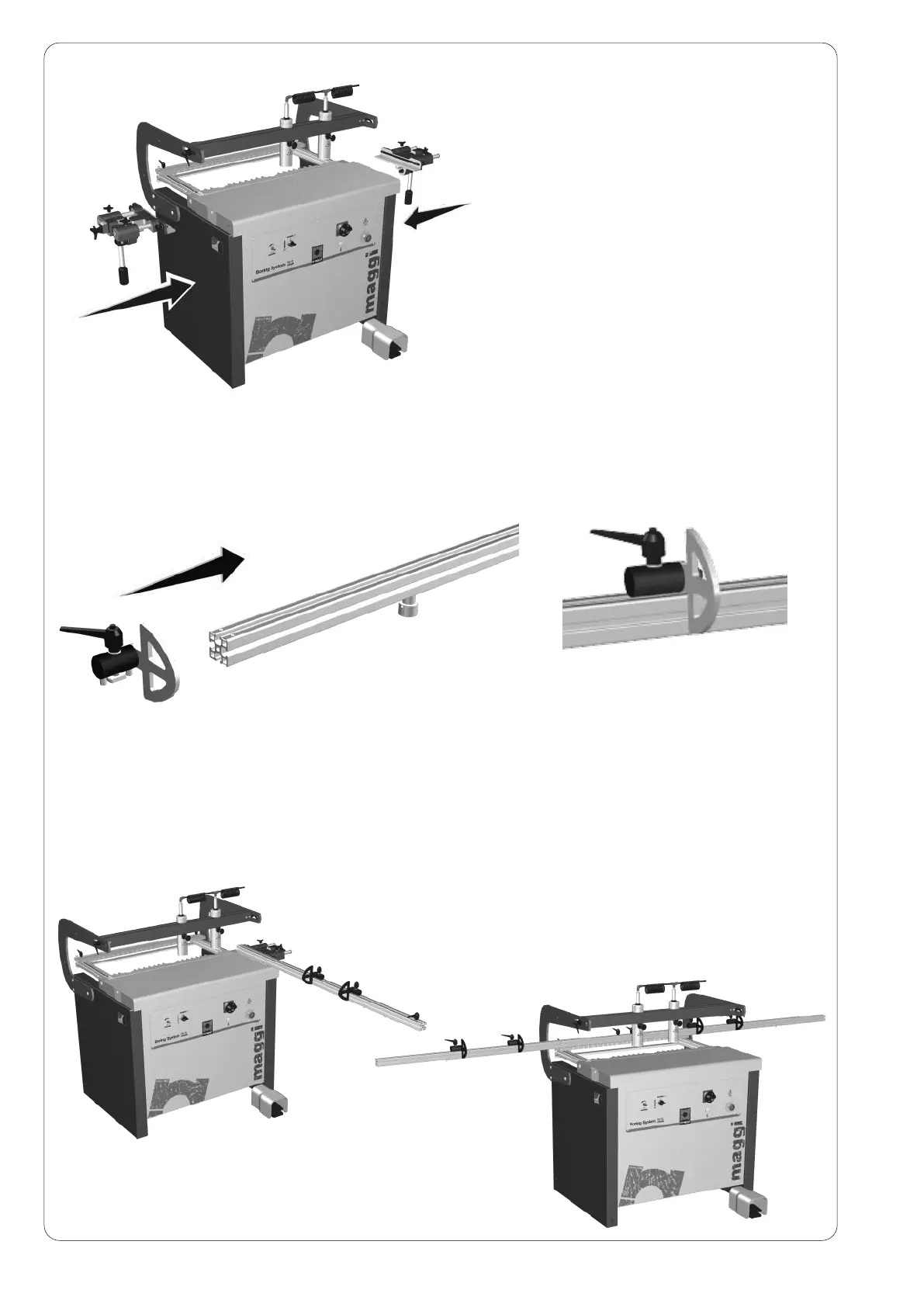

5 - MOVABLE STOP GROUP
 loosen the handle
 insert the group on the aluminium profile
 move and place the group in the right position
 lock the handle and block the group in position
6 - LONG FENCE
The long fence group is assembled on the machine putting the locking inserts inside the seats of the
aluminium profile. Lock firmly the handles when the fence is in the right position.
The long fence group can be assembled on the square units and also on the back stop unit
MAGGI TECHNOLOGY - BORING SYSTEM 23 - REV00 Pag. 15
6a - Assembly on the SQUARE UNIT
6b - Assembly on BACK STOP UNIT
4 - RH AND LH SQUARE UNITS
