1 - REFERENCE STOP FROFILE

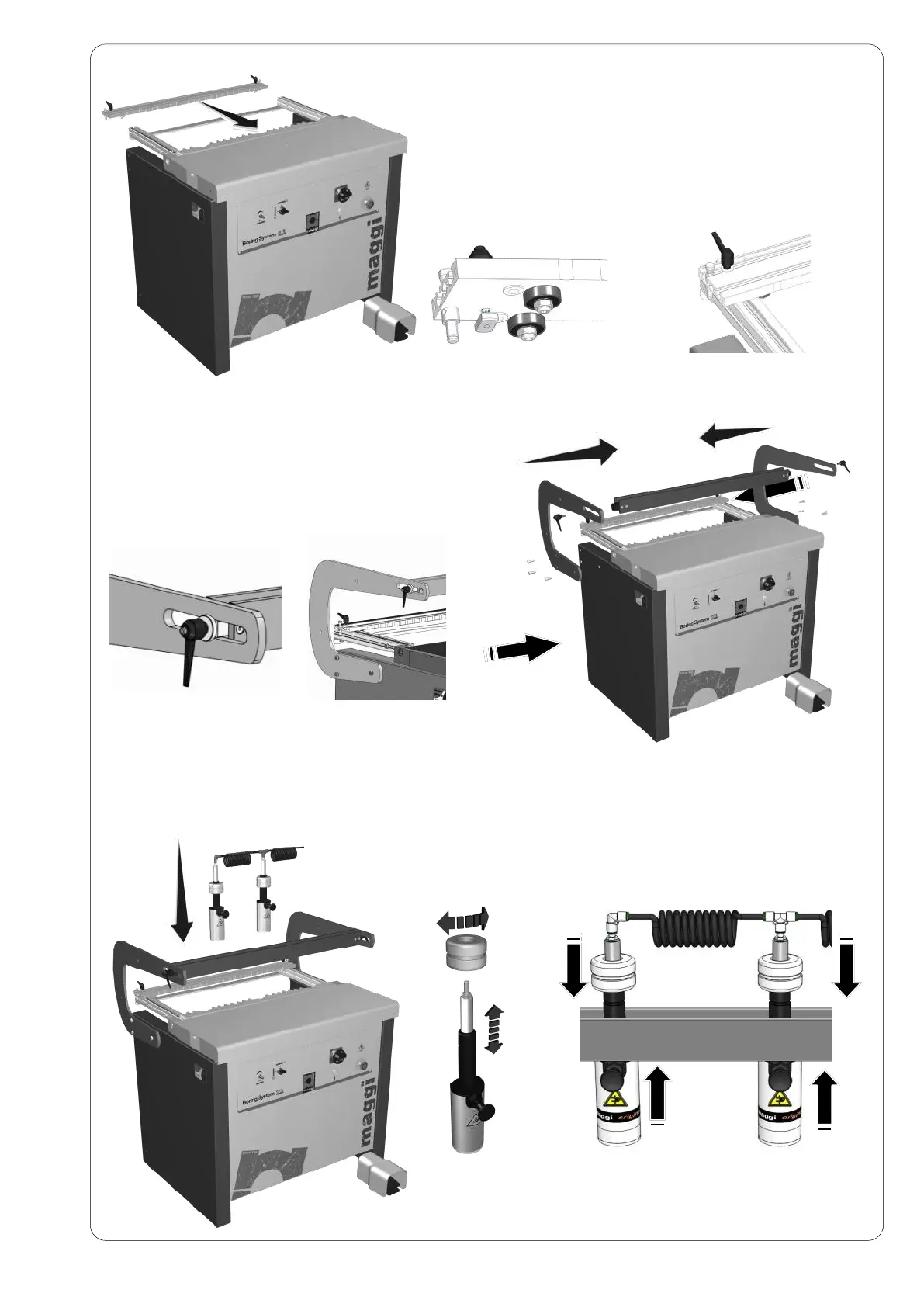

Assemble the back reference stop as depicted in the figure
 loosen the handles
 insert the profile: the locking nuts must slide in the guides
 move and place the profile in the right position
 lock the handles
2 - CLAMP SHOULDERS
 assemble the two shoulders close to the base frame but
not lock the screws
 assemble the crosspiece and insert it in the buttonholes
of the shoulders, then lock it in position with the handles
 lock the screws and lock the clamp shoulders in position
3 - CLAMPING DEVICES (CLAMPS)
 loosen the upper locking part
 insert the main body of the clamping device between the two rods
of the crosspiece, moving from bottom to up. Hold the clamps in
position
 insert the upper locking part on the main body of the clamp
 lock the upper locking part to fix the clamp in position
