MAGGI TECHNOLOGY - BORING SYSTEM 23 - REV00 Pag. 23

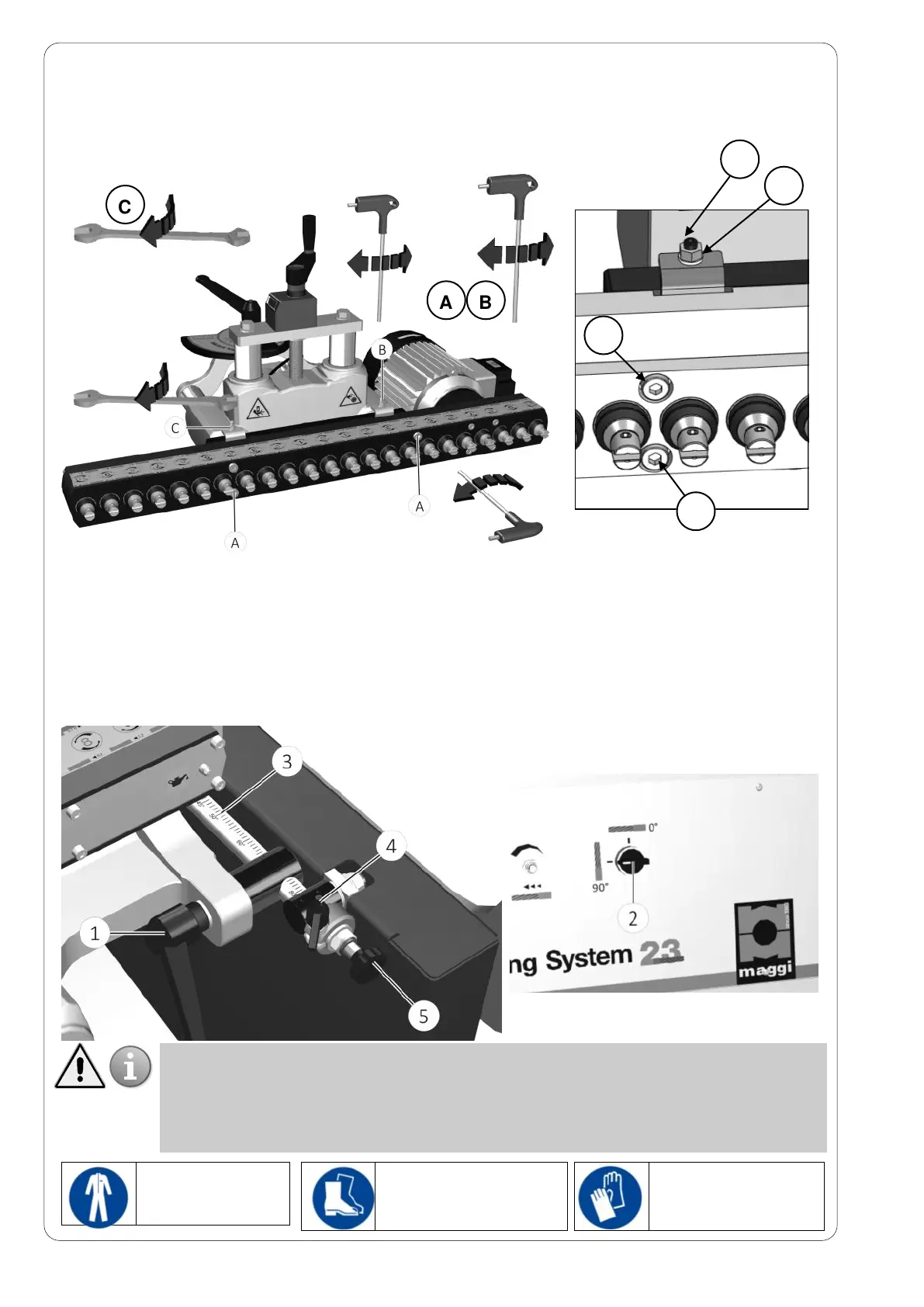

6.4 DRILLING HEAD PARALLELISM ADJUSTMENT
6.5 DRILLING HEAD - VERTICAL POSITIONING
To position the drilling head at 90° starting from the 0° position, proceed as follows:
Loosen the handle (1)
Use the selector (2) on the machine front and move it to the vertical position
Tighten the handle again (1)
ATTENTION
DO NOT STAND / MOVE CLOSE TO THE HEAD AREA WHEN OPERATING ON THE
CONTROL SWITCH TO TILT THE HEAD 0 ° -90 °
RISK OF CRUSHING, CUTTING AND ENCLOSURE
Partially loosen the screws (A) and work alternately on the screws ( B ) and nuts ( C )
Set the drills parallel to the working table
Firmly tighten the screws ( A )
DPI - WEAR
PROTECTIVE
CLOTHES
DPI - WEAR
PROTECTIVE SHOES
DPI - WEAR
PROTECTIVE
GLOVES
B
A
C
A
A B
C
