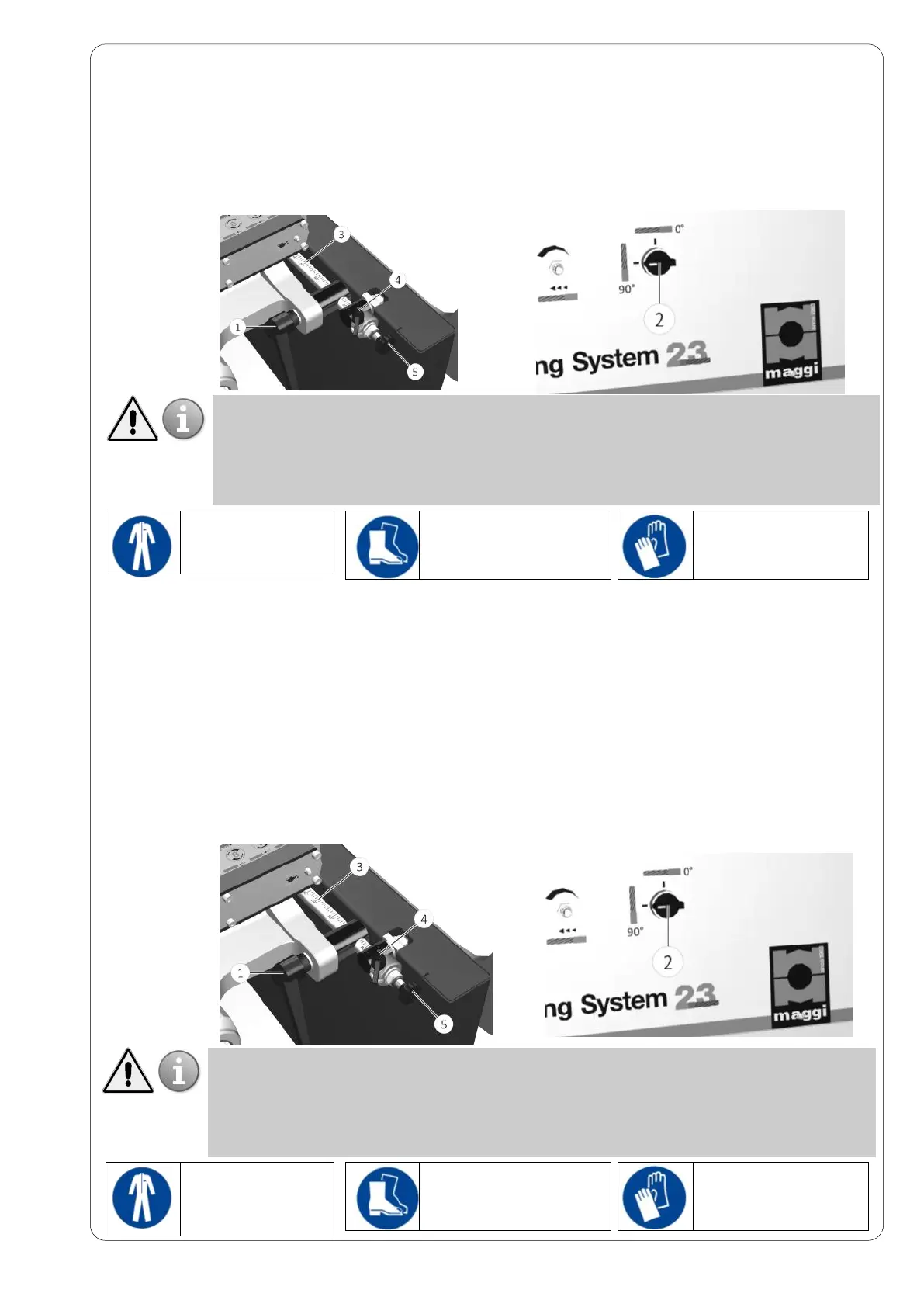

6.7 DRILLING HEAD - POSITIONING AT AN ANGLE BETWEEN 0° AND 90°
 Take or if already set keep the head unit at 90° as starting position.
 Release the handle (1) to be able to pull out the graduated fence (3)
 Release the handle (4) and position the stop (5) at the required degrees chosen along the graduated
fence and then lock into position again.
 Check that the selector (2) on the front is also positioned at 90°
 Release the handle (1) on the left-hand side of the machine
 Use the selector (2) to tilt the head unit taking it to the bottom position
 Tight the handle again (1)
6.6 DRILLING HEAD - HORIZONTAL POSITIONING
To position the spindle head at 0° starting from 90° position, act as follows:
 Check that the selector (2) on the front is also positioned at 90°
 Release the handle (1) on the left-hand side of the machine
 Use the selector (2) to tilt the head unit taking it to the bottom position
 Tight the handle again (1)
ATTENTION
DO NOT STAND / MOVE CLOSE TO THE HEAD AREA WHEN OPERATING ON THE
CONTROL SWITCH TO TILT THE HEAD 0 ° -90 °
RISK OF CRUSHING, CUTTING AND ENCLOSURE
ATTENTION
DO NOT STAND / MOVE CLOSE TO THE HEAD AREA WHEN OPERATING ON THE
CONTROL SWITCH TO TILT THE HEAD 0 ° -90 °
RISK OF CRUSHING, CUTTING AND ENCLOSURE
