Magicfx ECO2JET - Replace the Fluid Mesh Filter

MAGICFX
®
ECO2JET
®
- User and Installation Manual 37
5.2. REPLACE THE FLUID MESH FILTER
NOTICE
Replace the Fluid Mesh Filter at least once a year.

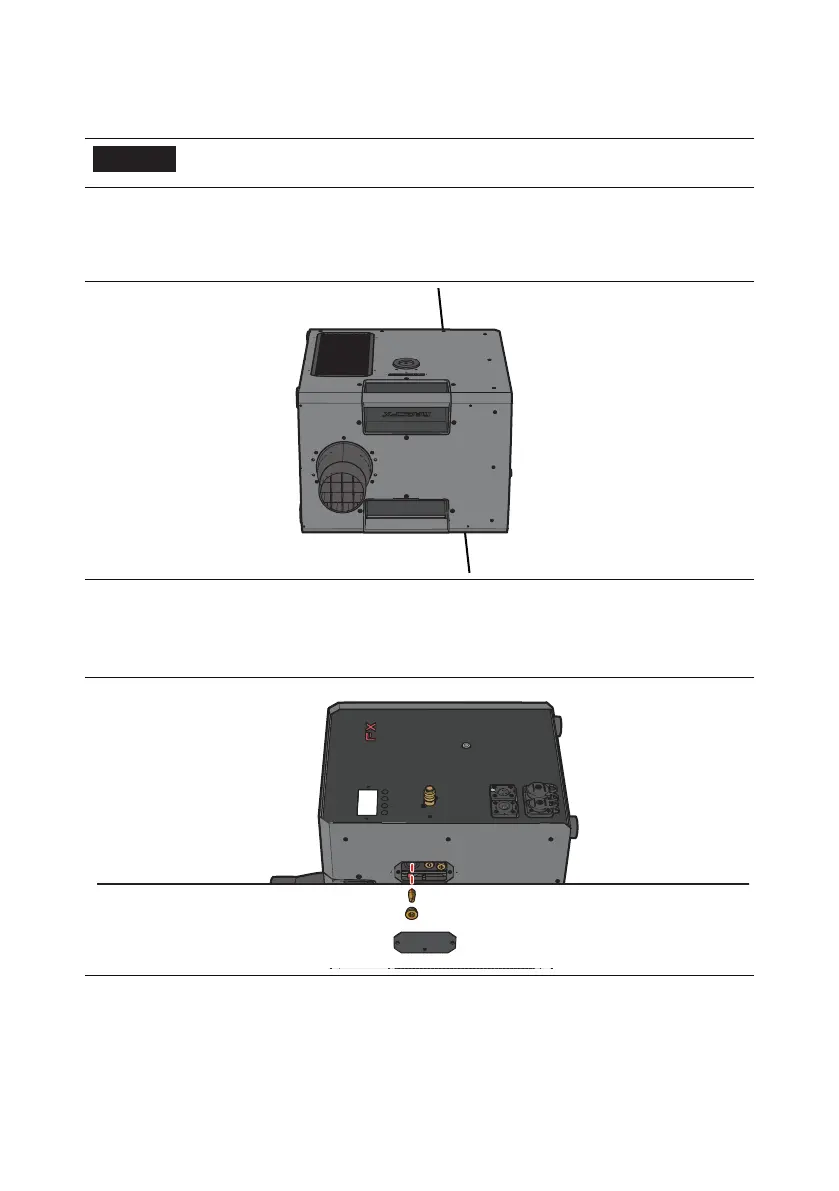

1. Place the ECO2JET
®
on a table with the service lid pointed towards the floor.
Make sure the service lid protrudes over the edge of the table so you can
access it.
2. Remove the service lid using a T10 Torx screwdriver.
3. Remove the large plug using a size 8 hex key.
4. Remove the Fluid Mesh Filter G 1/4" using a large flat screwdriver.
5. Attach the replacement Fluid Mesh Filter G 1/4" (PART02402) using a large flat
screwdriver.
6. Re-attach the large plug using a size 8 hex key. Use a torque wrench set to 16
Nm if available.
7. Re-attach the service lid using a T10 Torx screwdriver.
