Page 13

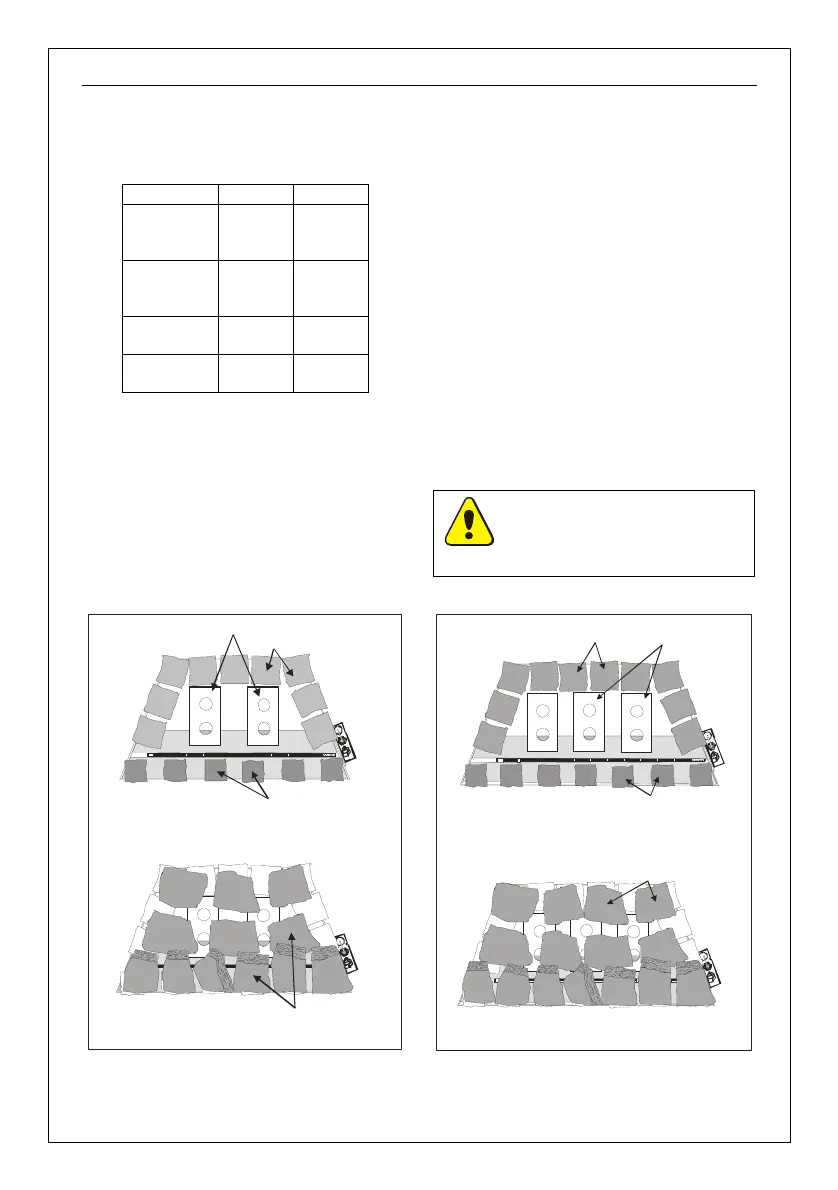

2.5.1. Coal Effect Layout
This fire is supplied with different sizes of
ceramic coal, with the quantity supplied
being dependant upon the type of burner:
S16 S18
Small
Square
Coals
6 7
Medium
Square
Coals
9 10
Random
Coals
21 24
Aeration
Tubes
2 3
Proceed with the coal layout as follows: -
1. Following the appropriate set of
drawings, form the first layer, using the
Small square and Medium square
coals, placing the aeration tubes as
shown.
2. Unpack the Random coals and form the
second and front layers, ensuring that
none of these coals come into contact
with the burner board.
3. Using more of the Random coals, form
the final layers.
4. Packing the coals too tightly together will
result in a poor flame picture. The best
results come from a ‘loose’ fuel build.
5. Do not place any coals immediately over
the pilot assembly.
6. After the appliance has been allowed to
warm up, small adjustments (using a
small pair of tongs) may be made to the
top layer to achieve the desired flame
picture.
7. It is recommended that the coals be left
alone once the desired flame picture has
been achieved. Constant moving of the
coals causes the coals to disintegrate
and/or cause discolouration.
WARNING: Do not touch the
fire when it is alight. The fire will
remain very hot for a while after
extinguishing.
Small square coa ls
equally spaced
Medium square coals
Random Coals
Aeration tubes
FIRST LAYER
SECOND AND FRONT LAYER
Figure 20 – Solitaire 16” Fire
Medium Square
coals
Small Square Coals
Equally Spaced
Aera tion
Tu b es
FIRST LAYER
SECOND AND FRONT LAYERS
Rando m
Co als
Figure 21 – Solitaire 18” Fire
